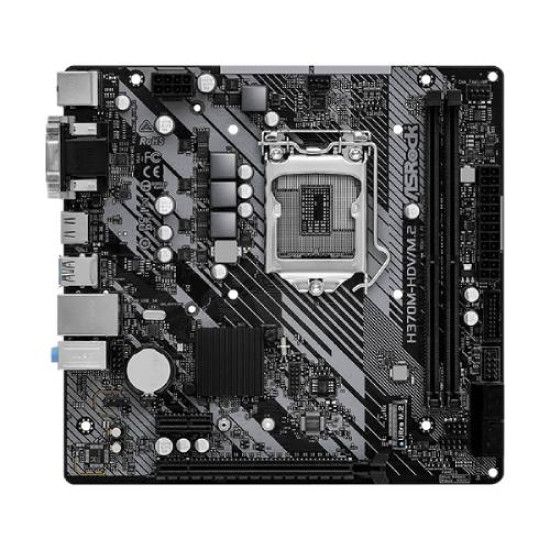

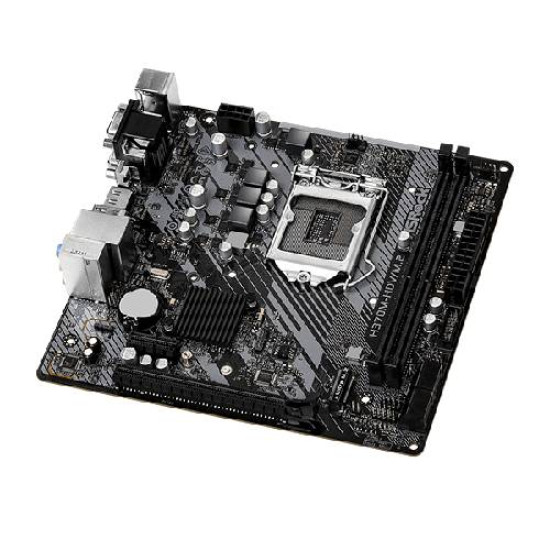

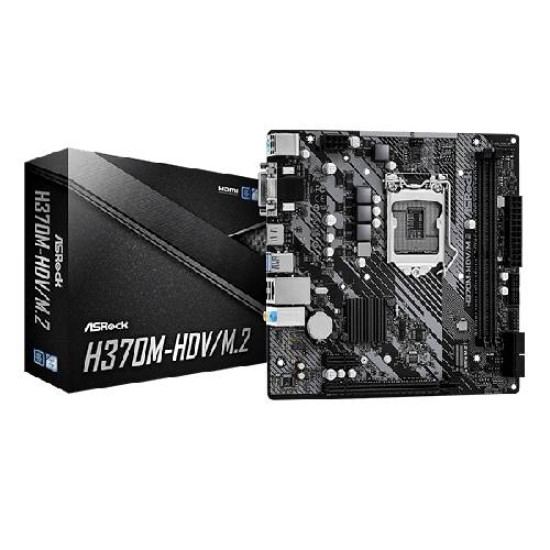

ASRock H370M-HDV/M.2 DDR4 Intel Motherboard

4 x USB3.2 Gen1

Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen1 technology advances the data transfer rate up to 5Gb/s. ASRock provides 4 x USB 3.2 Gen1 ports onboard allows you to have a stunning data transfer experience.

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

HEVC 10-bit Decoding/Encoding

Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience.

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Triple Monitor

Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

Specification

Unique Feature

Rock-Solid Durability

- 4 Power Phase

EZ Update

- ASRock Auto Driver Installer

CPU

- Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)

- Supports CPU up to 95W

- Supports Intel® Turbo Boost 2.0 Technology

Chipset

- Intel® H370

Memory

- Dual Channel DDR4 Memory Technology

- 2 x DDR4 DIMM Slots

- Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory

- Max. capacity of system memory: 64GB

- Supports Intel® Extreme Memory Profile (XMP) 2.0

BIOS

- 128Mb AMI UEFI Legal BIOS with multilingual GUI support

Graphics

- 1 x HDMI 1.4, supports HDCP 2.2, 4K Ultra HD (UHD) playback and max. resolution up to 4K 30Hz

- 1 x DVI-D, supports HDCP 2.2 and max. resolution up to Full HD (1920x1200) 60Hz

- 1 x D-Sub, supports max. resolution up to Full HD (1920x1200) 60Hz

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

- Gigabit LAN 10/100/1000 Mb/s

- Realtek 8111H

Slots

CPU:

- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x16 mode*

Chipset:

- 1 x PCIe 3.0 x1 Slot (PCIE1)

Storage

Chipset:

- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*

- 4 x SATA3 6.0 Gb/s Connectors

RAID

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

- 4 x USB 3.2 Gen1 (2 Rear, 2 Front)

- 6 x USB 2.0 (4 Rear, 2 Front)

Connector

- 1 x SPI TPM Header

- 1 x Chassis Intrusion and Speaker Header

- 1 x CPU Fan Connector (4-pin)*

- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**

- 1 x 24 pin ATX Power Connector

- 1 x 8 pin 12V Power Connector

- 1 x Front Panel Audio Connector

- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

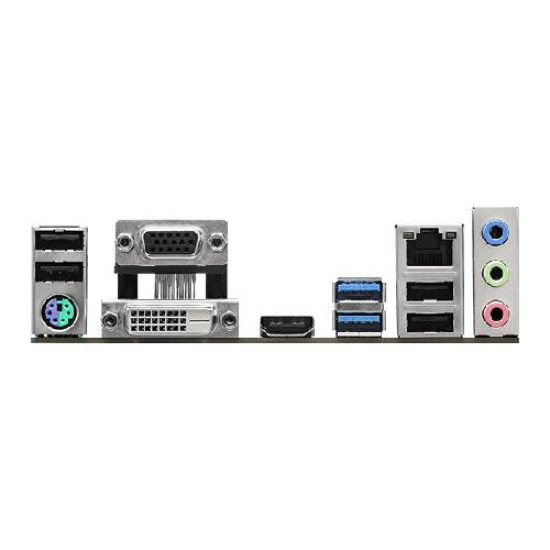

Rear Panel I/O

- 1 x PS/2 Mouse/Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 1 x HDMI Port

- 4 x USB 2.0 Ports

- 2 x USB 3.2 Gen1 Ports

- 1 x RJ-45 LAN Port

- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software

- ASRock Motherboard Utility (A-Tuning)

UEFI

- ASRock EZ Mode

- ASRock Full HD UEFI

- ASRock My Favorites in UEFI

- ASRock Auto Driver Installer

- ASRock Instant Flash

Accessories

- 1 x User Manual

- 1 x I/O Shield

- 2 x SATA Data Cables

- 1 x Screw for M.2 Socket

Form Factor

- Micro ATX Form Factor: 7.9-in x 7.5-in, 20.1 cm x 19.1 cm

- Solid Capacitor design

OS

- Microsoft Windows® 10 64-bit / 11 64-bit

Certifications

- FCC, CE

- ErP/EuP ready (ErP/EuP ready power supply is required)
