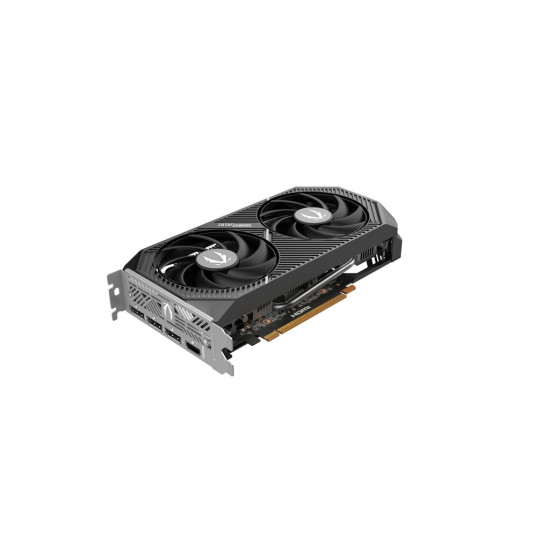

ZOTAC GAMING GeForce RTX 5060 Twin Edge OC 8GB GDDR7 (ZT-B50600H-10M)

ZOTAC GAMING GeForce RTX 5060 Twin Edge OC

ZT-B50600H-10M

The ZOTAC GAMING GeForce RTX 5060 Twin Edge OC is a compact graphics card powered by NVIDIA‘s cutting edge Blackwell Architecture, DLSS4 and 8GB of GDDR7 memory. With a strong factory OC and solid cooling solution, the Twin Edge OC is ready to take on the latest title releases with smooth framerates and performance.

Feature Highlights:

- Powered by the NVIDIA Blackwell architecture and DLSS 4

- 8-Pin PCIe power connector

- SFF-Ready compact Graphics Card

- Metal Backplate

- BladeLink Fans

- All-new FireStorm Utility

Specifications

GPUNVIDIA : GeForce RTX 5060 GPU

CUDA cores: 3840

Video Memory: 8GB GDDR7

Memory Bus: 128-bit

Engine Clock: 2527 MHz

Memory Clock: 28 Gbps

AI TOPS: 614

PCI Express: PCI Express 5.0 x8

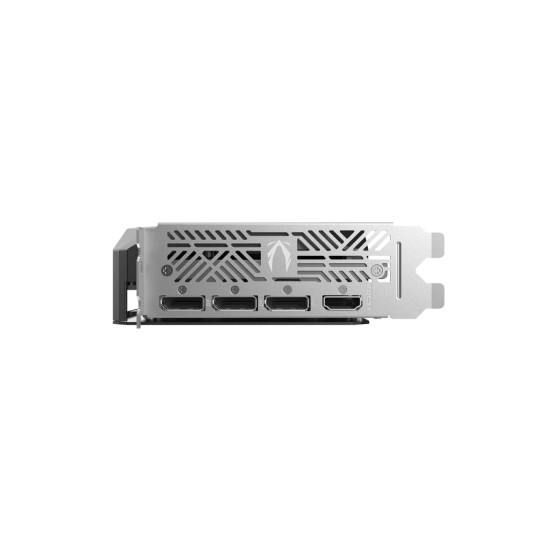

Display Outputs: 3 x DisplayPort 2.1b with UHBR20

(up to 4K 480Hz or 8K 165Hz with DSC)

1 x HDMI® Connector

(Supports 4K 480Hz HDR or 8K 120Hz HDR with DSC, and Gaming VRR as specified in the HDMI 2.1b Specification)

HDCP Support2.3

Multi Display Capability: Quad Display

Recommended Power Supply: 550W

Power Consumption: 145W

Power Input: 1 x 8-pin power input

DirectXMicrosoft DirectX® 12 Ultimate

OpenGL: 4.6

Cooling: Air Cooled

Slot Size: 2

SLI: No

Supported : OSWindows 11 / Windows 10 64-bit (v1809 November 2018 or later)

Card Length: 220.5mm x 120.25mm x 41.6mm / 8.7" x 4.7" x 1.6"

Accessories: User Manual
