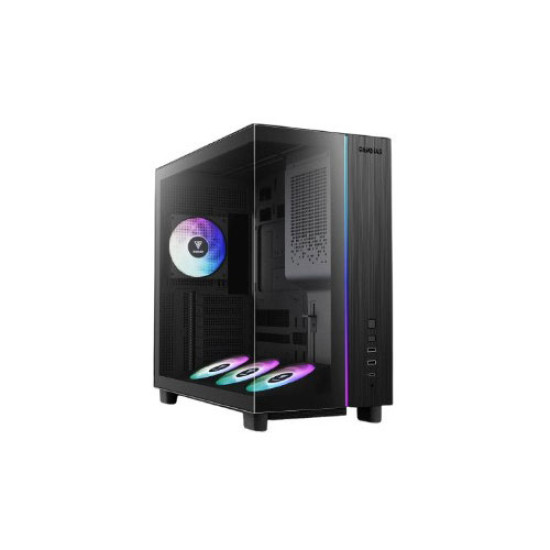

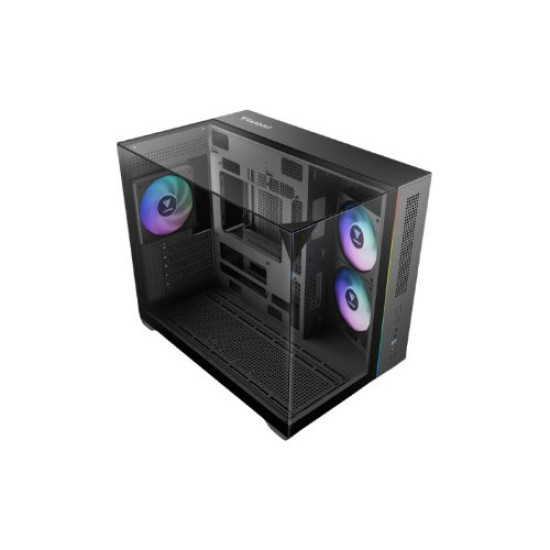

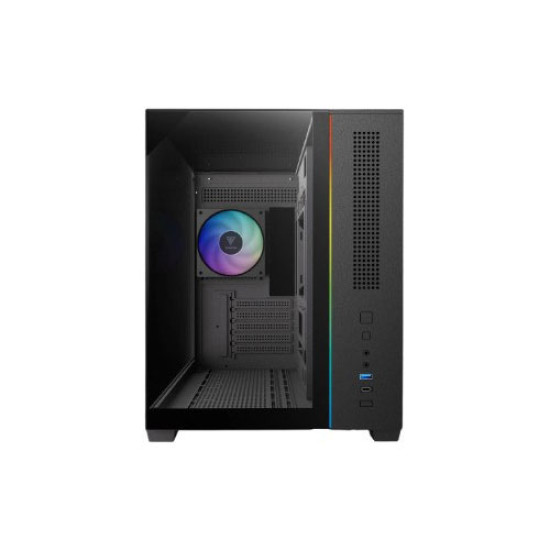

Gamdias Atlas M4 ARGB ATX Mid Tower Case

ATLAS M4

IMMERSIVE VISUALS, DYNAMIC AIRFLOW

• Seamless Tempered Glass Display

• 4 Built-in 120mm NOTUS M1 ARGB Fans

• Natural Chimney-Style Ventilation

• Front-Mounted PSU Design

• Adjustable Bottom Cooling System

• Modular Tool-free Installation

• Supports Connector-hidden Motherboards

• Fits Mini-ITX, Micro-ATX, and ATX motherboards

• Pre-Installed Anti-sag Bracket for GPU up to 425mm

• Gen 2 Type-C Port Ready

• Magnetic Dust Filter

IMMERSIVE VISUALS, DYNAMIC AIRFLOW

The ATLAS M4 delivers a fully immersive showcase with seamless tempered glass panels from bottom to top. Its front-mounted PSU design not only opens a complete panoramic view of your build but also enables chimney-style ventilation for optimal thermal performance. With four built-in NOTUS M1 ARGB fans and an adjustable bottom cooling system, the ATLAS M4 combines striking visuals with powerful cooling efficiency.

FULL IMMERSIVE VIEW

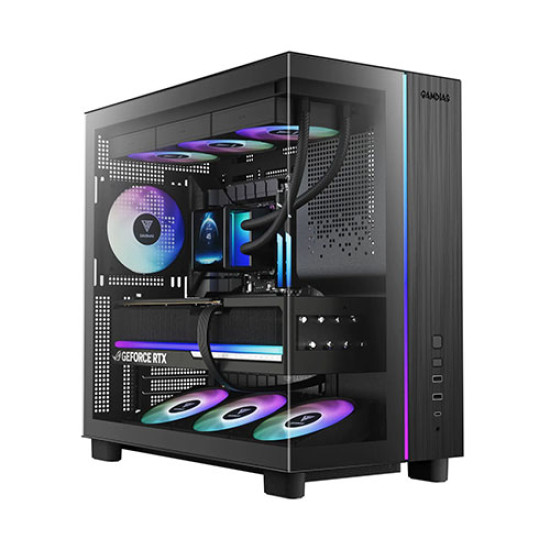

Showcase your build from bottom to top with seamless tempered glass panels on the front and side. With the PSU positioned at the front, the ATLAS M4 delivers an unobstructed, panoramic view of your components, creating a truly immersive visual experience.

CHIMNEY-STYLE VENTILATION

The ATLAS M4 maximizes cooling efficiency with a natural chimney effect, drawing fresh air through the perforated bottom and exhausting heat through the top and rear. This design ensures consistent cooling performance with powerful, unobstructed airflow throughout the case.

4 ARGB PWM FANS WITH BUILT-IN FAN HUB

Featuring four built-in silent NOTUS M1 ARGB fans, the case provides exceptional lighting and finely tuned airflow with minimal noise. The included 8-port PWM ARGB fan hub allows for easy management and synchronization, ensuring a cohesive lighting setup that perfectly complements the high-performance, quiet operation of the fans.

ADJUSTABLE ANGLED AIRFLOW

The ATLAS M4 features a bottom-mounted, adjustable fan system with six selectable angles, directing airflow precisely toward high-performance GPUs. This flexible design ensures optimal cooling efficiency, keeping your graphics card stable and reliable even under maximum gaming load.

EASY ACCESS FRONT-MOUNTED PSU DESIGN

The PSU is strategically positioned at the front side of the case, with connector ports oriented downward for easier cable management. A PSU shroud enhances the clean aesthetic, and an extension cable is included to facilitate rear power connection.

FLAWLESS VIEW

The ATLAS M4 supports connector-hidden motherboards (BTF), allowing cables to plug in from the back for a cleaner front appearance and enhanced PC setups. A rotatable cable cover beneath the PSU chamber helps conceal and organize wires, ensuring a seamless and organized build.

GEN 2 TYPE-C INTERFACE

The I/O features one USB 3.2 Gen 2 Type-C port for high transfer speeds up to 10 Gbps, two USB 3.0 ports, fan LED controls, and additional audio connectivity.

SIMPLE CLASP MECHANISM

The ATLAS M4 showcases your build with tempered glass on the front and side, while a simple clasp mechanism on all removable panels ensures stunning visuals with easy modding and upgrades.

COOLING COMPATIBILITY

The ATLAS M4 can accommodate up to 7 fans and offers flexible options for the installation of radiators at the top and rear.

INTERIOR ACCOMMODATION

The case offers the option to house up to ATX motherboards, air coolers with 175mm RAM clearance, and VGA cards with lengths up to 425mm.

STORAGE COMPATIBILITY

The ATLAS M4 supports installation of up to 2 x 2.5" or 1 x 2.5"+1 x 3.5" and can accommodate PSU lengths up to 160mm.

DUST RESISTANT

Equipped with dust filters on the top and side, the case effectively protects against dust while maintaining ventilation.

SPECIFICATIONS

Case Type

MID Tower : MB Support

ATX、Micro-ATX、Mini-ITX

Synchronization : 5V 3-Pin Addressable Header

CASE Color  : Black

Expansion Slots  : 7

Material

SPCC & ABS & Tempered glass : Window

Front, Left : Radiator Support

Top: 360mm / Rear: 120mm

Fan Support

Top: 3 x 120mm

Rear: 1 x 120mm / 1 x 140mm

Bottom: 3 x 120mm

Pre-installed Fans

Rear: 1 x 120mm PWM ARGB Fan

Bottom: 3 x 120mm PWM ARGB Fans

Drive Bays

1 x 3.5 + 1 x 2.5 or 2 x 2.5

I/O Port : Type-C x 1, USB 3.0 x2, HD Audio x1, LED Control x1

Clearance

CPU cooler height limitation: 175mm

VGA length limitation: 425mm

PSU length limitation: 160mm

Dimension (L x W x H) : 430 x 235 x 434mm

Pre-installed Control BOX : 8 Ports Hub (4 port are used)

Note : Some PSUs may have compatibility issues depending on the AC inlet orientation; we recommend using a GAMDIAS PSU.
