Asus ROG Strix Helios II Premium Mid-Tower Gaming Case (HELIOS-II-GX601S)

ROG Strix Helios II

ROG Strix Helios II EATX mid-tower gaming case with dual tempered glass side panels, GPU support for up to 450mm in length, aluminum frame and front panel, GPU braces and 420mm radiator support

Premium design: The Helios II is made for showcase builds, with aluminum front panel featuring diamond-grille design and 3D-structured filter to support effective cooling

Optimal thermal performance:  Pre-installed four 140 x 28mm performance fans deliver ultimate airflow

Ready for the DIY experience: PC building is made easy with support for EATX motherboards and graphics cards up to 450mm long, plus a graphics card slot clamp and a rear detachable PSU bracket

Tidy PC building: Effortless cable management is enabled by a multifunction cover with graphics card holders, a PSU shroud, a cable cover and rear cable clips

Advanced I/O panel: This section features two USB 20Gbps Type-C® ports, four USB-A 3.0 ports, an ARGB-lighting control button and a fan-speed PWM control button

Comfortable case straps: Easily carry your prized build to LAN parties with ergonomic and stylish X-shaped woven straps

ROG Strix Helios II

Striking Looks. Cool Moves.

ROG Strix Helios II is a premium mid-tower gaming case featuring dual tempered glass side panels, a refined aluminum frame, and a diamond grille front panel with a 3D-structured front filter. It comes pre-installed with four 140 x 28 mm performance fans, delivering optimized airflow and enhanced thermal performance for demanding gaming setups. Engineered for expandability and performance, it's ready for motherboards ranging from ITX to EATX and serious water-cooling setups as well - making it the perfect choice for a classic ROG showcase build.

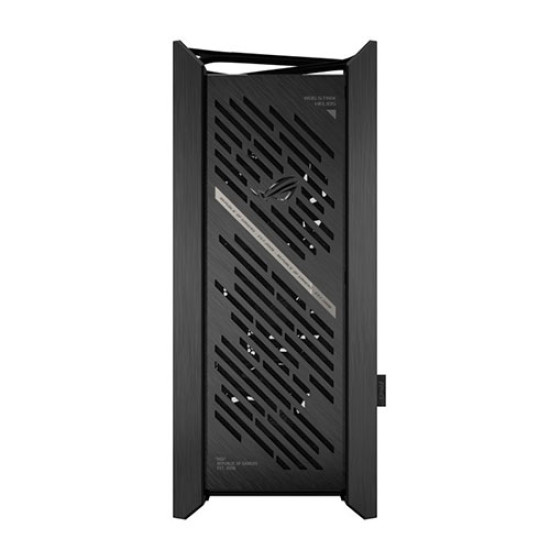

Premium Design & Aesthetics

ROG Strix Helios II is made for showcase builds with dual 4mm-thick tempered glass side panels fitted in a refined brushed-aluminum frame. The aluminum front panel, featuring a diamond grille design, is manufactured using high-precision CNC milling technology and an anodizing process. The diagonal slashes on the front are inspired by race car elegance and individuality to make the Helios II unique. With rounded edges, a streamlined shape and hidden seams, this chassis is sleeker than ever.

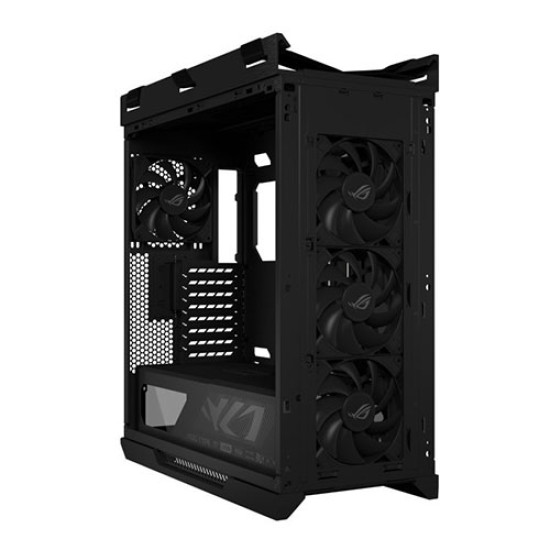

Four Pre-Installed Performance Fans

The Helios II is designed to balance performance and acoustics: Four pre-installed 140mm fans with 28mm frames deliver strong airflow while maintaining a low 29 dB(A) noise level.

Ready For High-Performance Builds With Dual AIO Support

The ROG Strix Helios II is built to perform and primed for expansion, with ample space for GeForce RTX™ 5090 graphics cards or hardcore water-cooling setups. It can handle a ROG Ryuo IV SLC 360 ARGB AIO cooler and the 360mm radiator of the ROG Astral LC GeForce RTX 5090 at the same time. It features support for radiators up to 420mm in the front and 360mm at the top, with room reserved for installing the pump and reservoir of a custom loop.

Easy Installation & Maintenance

ROG Strix Helios II is designed with multiple mechanisms to provide the smoothest building experience, even for DIY novices. Meanwhile, keeping your rig clean is made easy with built-in dust filters and easy access to all areas.

Tool-Free Side Panel Design

Pushing a button at the rear of the case releases one of the side panels for tool-less access to the interior. Its tempered glass is hinged on the bottom to swing away and rest at an angle, or you can remove the panel completely and set it aside while you tinker.

Modular Fan & Radiator Mounts

Two removable brackets let you easily mount fans and radiators before installing the whole assembly into the case, simplifying your building experience

Patented Graphics Card Slot Clamp

A tool-free graphics card slot clamp makes your PC building faster and hassle-free with a simple snap that secures your GPU firmly in place.

Rear Detachable PSU Bracket

For easier installation, a rear bracket detaches from the case so that a power supply can slide right in.

Dust Filters

The 3D-structured front filter provides ample space for the front fans while providing optimized airflow and acoustics. It combines forces with removable filters on the top and underside to provide all-round protection from dust, making cleaning and maintenance easier.

Ergonomic Case Straps

Easily carry your prized build to LAN parties with ergonomically X shape woven fabric straps that combine style and comfort, rigorously tested to support up to 50kg for reliable transport.

Specification :

Model  : ROG Strix Helios II

Case Size : Mid Tower

Motherboard Support : EATX (12"x10.9")

                                 ATX

                                Micro-ATX

                                Mini-ITX

Drive Bays : 4 x 2.5" Bay

                  2 x 2.5"/3.5" Combo Bay

Expansion Slots : 8

                          2 (additional vertical)

Front I/O Port : 1 x headphone / Microphone

                       2 x USB 3.2 Gen 2x2 Type C

                       4 x USB 3.2Gen1

Tempered Glass  : Front Side

                            Left Side

                            Right Side

Radiator Support (Front)   :  120 mm

                                                  140 mm

                                                  240 mm

                                                  280 mm

                                                   360 mm

                                                    420 mm

Radiator Support (Top)  : 120 mm

                                             140 mm

                                             240 mm

                                             280 mm

                                             360 mm

Radiator Support (Rear) : 120 mm

                                             140 mm

Cooling Support (Front)  : 3 x 120 mm

                                               3 x 140 mm

Cooling Support (Top) : 3 x 120 mm

                                           2 x 140 mm

Cooling Support (Rear) : 1 x 120 mm

                                            1 x 140 mm

Pre-installed Fans (Front) : 3 x 140 mm

PWM

Pre-installed Fans (Rear) : 1 x 140 mm

Maximum CPU Cooler Height  : 190 mm

Maximum GPU Length : 450 mm

Maximum PSU Length : 220 mm

Removable Dust Filters : Front

Top : Bottom

Maximum Cable Management Space : 33 mm

Dimensions : 250 x 565 x 591 mm

Weight : 18Kg

AURA Sync  : ARGB

Accessory :  Extension Hub Support PWM Fan x 6, ARGB LED Strip x 6
