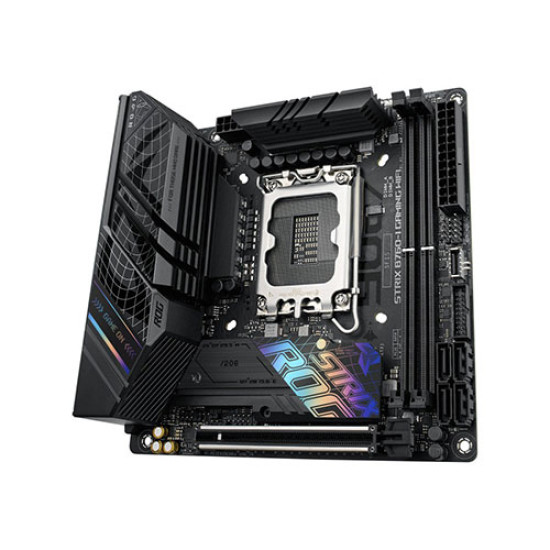

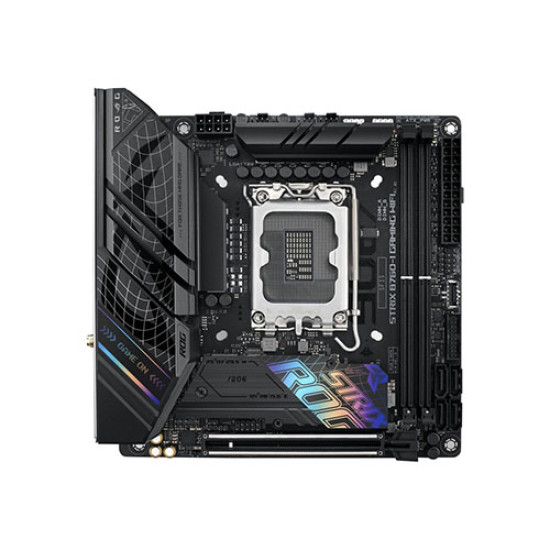

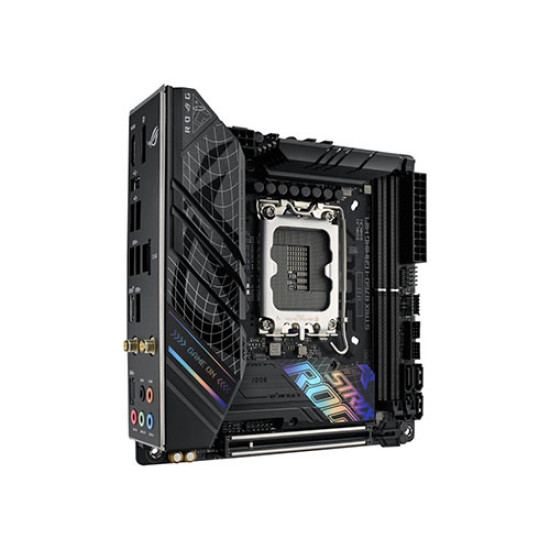

Asus ROG STRIX B760-I GAMING WIFI Motherboard

ROG STRIX B760-I GAMING WIFI

Intel® B760 LGA 1700 mini-ITX motherboard with 8 + 1 power stages rated to 80A, DDR5 up to 7600 MT/s, PCIe 5.0 x16 SafeSlot, two PCIe 4.0 M.2 slots, WiFi 6E, 2.5G Ethernet, USB 3.2 Gen 2x2 Type-C®, ASUS Enhanced Memory Profiles (AEMP) II, Two-Way AI Noise Cancelation, and Aura Sync RGB lighting

Intel® LGA 1700 socket: Ready for 13th Gen Intel® Core™, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors

Robust Power Solution: 8 + 1 power stages rated for 80A, ProCool power connector, high-quality alloy chokes, and durable capacitors are all leveraged to support the latest multi-core processors

Optimized VRM Thermals: Thick heatsinks bridged to the VRM with high-conductivity thermal pads, and the larger one integrated with the I/O cover for added surface area

Ample M.2 Support: Two PCIe 4.0 M.2 slots, one with a beefy heatsink, and the other strategically placed on the rear to save space

Next-Gen Networking: On-board Intel Wi-Fi 6E (802.11ax) and Intel 2.5G Ethernet with ASUS LANGuard

Abundant Connectivity: USB 3.2 Gen 2x2 Type-C® rear I/O port, seven additional USB ports, USB 3.2 Gen 2 front-panel connector, PCIe 5.0 x16 SafeSlot, HDMI® 2.1, and DisplayPort™4

Intelligent Control: ASUS-exclusive AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance

DIY-Friendly Design: Pre-mounted I/O shield, M.2 Q-Latch, and Q-LED

Industry-leading Gaming Audio: S1220A codec with Savitech SV3H712 amplifier, along with DTS® Sound Unbound™ and Sonic Studio III

Renowned Software: Bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

POWER ARCHITECTURE

8 + 1 + 2 power stages each rated to handle up to 80A deliver ample current to drive the most powerful Intel 14th Gen processors through any workload with ease.

ALLOY CHOKES AND DURABLE CAPACITORS

High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

EIGHT-LAYER PCB

A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.

UNDENIABLY ROG STRIX

In compact builds with a vertically-mounted graphics card, the ROG Strix B760-I keeps a low profile, as only the top of a wavy grid decal is likely to peek through. But if the build has a bit more space, a pair of bold pastel insignias give some colorful flair amid the otherwise stealthy fascia.

Specification :

CPU :

 Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset : Intel® B760 Chipset

Memory :

2 x DIMM, Max. 96GB, DDR5 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

Graphics :

 1 x DisplayPort**

1 x HDMI®***

Expansion Slots :

Intel® 14th & 13th & 12th Gen Processors*

1 x PCIe 5.0 x16 slot

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

 Storage : Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel® 14th & 13th & 12th Gen Processors :

M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)

Intel® B760 Chipset**

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

Ethernet :

1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

 Wireless & Bluetooth :

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth® v5.3

* WiFi 6E 6GHz regulatory may vary between countries.

USB :

Rear USB (Total 8 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports  (3 x Type-A +1 x USB Type-C®)

3 x USB 2.0 ports  (3 x Type-A)

Front USB (Total 5 ports) :

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

Audio :

ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*

Audio Features  :

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Premium audio capacitors

* Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

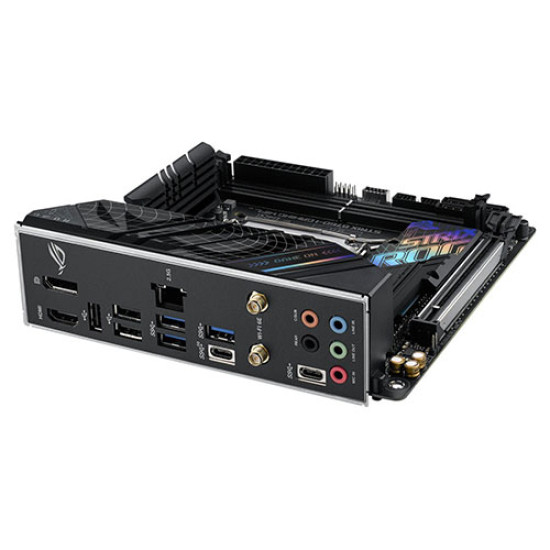

Back Panel I/O Ports :

 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®)

3 x USB 2.0 ports (3 x Type-A)

1 x HDMI® port

1 x DisplayPort

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet

5 x Audio jacks

 Internal I/O Connectors :

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chasis Fan header

1 x 4-pin AIO Pump header

Power related  :

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related  :

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB :

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 headers support additional 2 USB 2.0 ports

Miscellaneous :

1 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

Special Features :

Extreme Engine Digi+

- 5K Black Metallic Capacitors

ASUS Q-Design :

- M.2 Q-Latch

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution :

- M.2 heatsink backplate

ASUS EZ DIY :

 -CPU Socket lever protector

- ProCool

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM :

AURA Sync

- Aura RGB header

- Addressable Gen 2 header

Software Features :

ROG Exclusive Software :

- GameFirst VI

- ROG CPU-Z

- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion

- Sonic Radar III

- DTS® Sound Unbound

 ASUS Exclusive Software :

Armoury Crate

- AIDA64 Extreme (60 days free trial)

- AURA Creator

- AURA Sync

- Fan Xpert 4

- Two-Way AI Noise Cancelation

- Power Saving

AI Suite 3

- Performance And Power Saving Utility

  PC Cleaner

  DIGI+ VRM

MyAsus

Norton 360 for Gamers

WinRAR

UEFI BIOS :

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

MemTest86

BIOS :

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories :

Cables :

2 x SATA 6Gb/s cables

1 x ROG USB2.0 splitter cable

1 x Panel cable

Additional Cooling Kit

1 x Thermal pad for M.2

Miscellaneous :

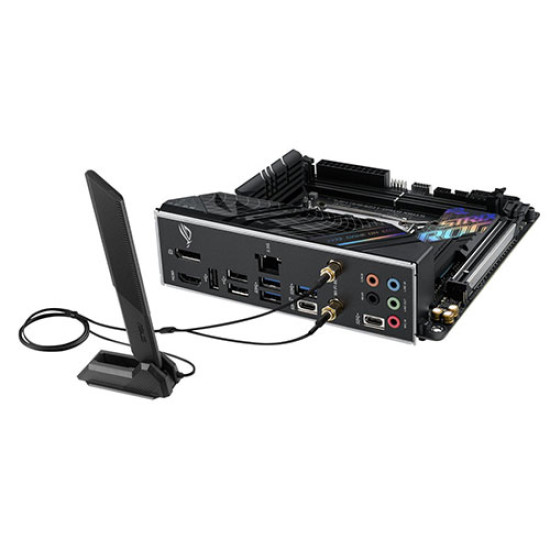

1 x ASUS Wi-Fi moving antennas

1 x Cable ties package

1 x M.2 Rubber Package

2 x Screw packages for M.2 SSD

1 x M.2 bracket

1 x ROG key chain

1 x ROG STRIX stickers

1 x ROG STRIX thank you card

Documentation : 1 x User manual

Operating System : Windows® 11 64-bit, Windows® 10 64-bit
