MSI MAG A1000GLS PCIE5 80 PLUS Gold 1000W Fully Modular PSU

MSI MAG A1000GLS PCIE5 Gold 1000 Watt ATX 3.1 Fully Modular Smps

Features:

Supports Nvidia GeForce RTXTM 50 series graphics cards

Native 12V-2x6 connector

Dual-color 12V-2x6 cable

80 PLUS Gold certified

Optimized the sound level

Main 105°C capacitor

Embossed Jacket Cables, the cables are more bending and routing

Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO

Featuring ATX 3.1 and PCIe 5.1 support with native 12V-2x6 connectors, these PSUs are built to handle NVIDIA’s 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.

The power supply features the latest 12V-2x6 (H++) connector, designed with an optimized structure that complies with the PCIe CEM 5.1 standard. The ensures enhanced reliability and safety. It is capable of

delivering up to 600W of power, making it suitable for even the most demanding high-end graphics cards.

Ultimate Proof PSU

It has an output port that is compliant with Intel PSDG (Power Supply Design Guide) ATX 3.1,the power supply can hold up to 220% total power excursion and 3x GPU power excursion.

Gold Efficiency Certification

The efficiency of your power supply significantly impacts overall power consumption. The Gold certification stands out as a reliable benchmark for energy efficiency, ensuring that your power supply delivers lower energy consumption and operates at higher efficiency levels.

Midnight Sound Level

This power supply is designed for quiet operation, delivering low noise levels like in the midnight, ensuring a serene computing experience free from disturbances.

Fluid Dynamic Bearing

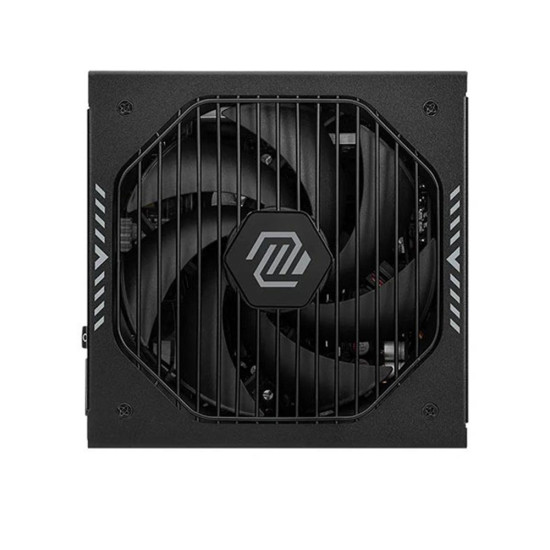

This power supply comes with 135 mm fluid dynamic bearing fan, chosen to increase the life span of the fan while maintaining low noise level.

Alloy Copper Connector Terminals

The cable connectors are made of copper alloy terminals so that the power supply will be safer when there is a higher surge in current.

Built for Maximum Safety

The power supply's cables, from the internal copper wires to the external high-density braided cover, are fully UL certified, ensuring superior safety and durability.

Efficiency Rating: 80 PLUS Gold (up to 90%)

Modular: Yes (full modular)

Fan Size: 135 mm

Fan Bearing: Fluid Dynamic Bearing

Dimensions (DxWxH): 150 x 150 x 86 mm

PFC Type: Active PFC

Input Voltage Range: 100-240V~

Power Watt: 1000W

Power Excursion: 2200W (*up to 220% of the PSU's rated power for 100μs)

Input Frequency Range: 47-63 Hz

Protection: OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO

ATX (24 pin): 1

EPS (8 pin): 1

EPS (4+4 pin): 1

PCI-E 5.1 (16 pin): 1

PCI-E (6+2 pin): 4

SATA (15 pin): 11

PERIPHERAL (4 pin): 4

FDD (4 pin): 1

Specification :

Wattage : 1000 Watt

Series : MAG SERIES

Certification : 80 Plus Gold

Modular : FULLY MODULAR

PCIe Connector (6+2) : 4

SATA Connector : 11

Peripheral (4-Pin) : 4

Warranty : 7 Years
