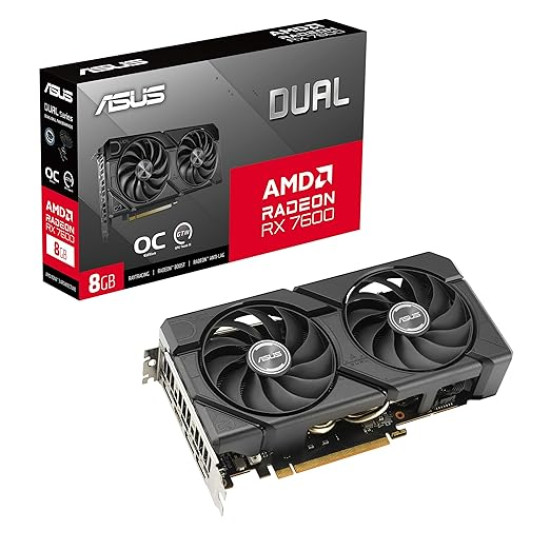

ASUS Dual Radeon RX 7600 EVO OC Edition 8GB GDDR6 (DUAL-RX7600-O8G-EVO)

ASUS Dual Radeon™ RX 7600 EVO OC Edition 8GB GDDR6 is optimized inside and out for lower temps and durability.

OC Mode: up to 2715 MHz (Boost Clock)/ up to 2300 MHz (Game Clock)

Axial-tech Fan design features a smaller fan hub to increase airflow through the cooling array

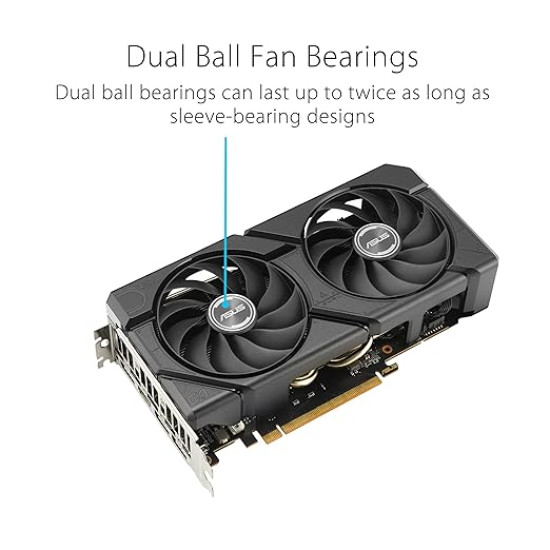

Dual ball fan bearings last up to twice as long as conventional designs

2.5-Slot design allows for greater build compatibility while maintaining premium cooling

0dB technology lets you enjoy light gaming in relative silence

Auto-Extreme precision automated manufacturing for higher reliability

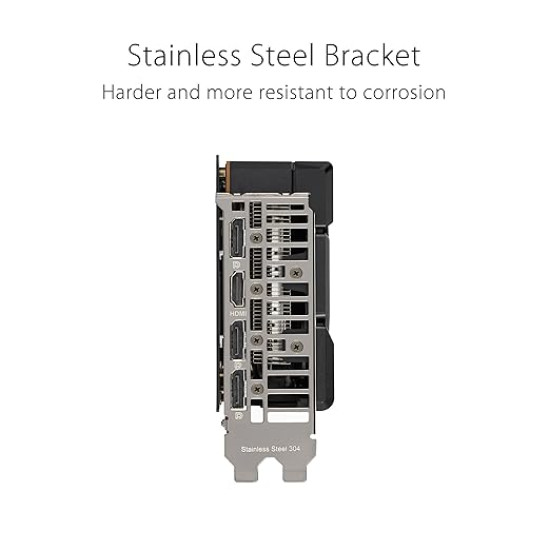

A stainless-steel bracket is harder and more resistant to corrosion

GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

2x Fans. 2x Fun.

Delivering the latest AMD RDNA™ 3 architecture experience in its purest form, the Dual Radeon™ RX 7600 EVO melds performance and simplicity like no other. Leveraging advanced cooling technologies derived from flagship graphics cards, the Dual series opts for substance over style, making it the perfect choice for a well-balanced build. Buckle up and engage cutting-edge gaming prowess.

Axial-tech Fan Design

Better, faster, stronger

Two tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.

Auto-Extreme Technology

Reliability Boost

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

GPU TWEAK III

Monitor, tweak, and tune

The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It lets you tweak critical parameters including GPU core clocks, memory frequency and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.

Pair with a PSU

Use our wattage calculator to estimate how much power you’ll need to fuel your rig, and then pick a compatible ROG Thor, ROG Loki, ROG Strix AURA, TUF Gaming or ASUS Prime power supply for ultimate performance.

Technical Specifications

Model: DUAL-RX7600-O8G-EVO

Graphic Engine: AMD Radeon™ RX 7600

Bus Standard: PCI Express 4.0

OpenGL: OpenGL®4.6

Video Memory: 8GB GDDR6

Engine Clock

OC mode: up to 2715 MHz (Boost Clock)/up to 2300 MHz (Game Clock)

Default mode: up to 2695 MHz (Boost Clock)/up to 2280 MHz (Game Clock)

Stream Processors: 2048

Memory Speed: 18 Gbps

Memory Interface: 128-bit

Resolution: Digital Max Resolution 7680 x 4320

Interface: Yes x 1 (Native HDMI 2.1), Yes x 3 (Native DisplayPort 1.4a), HDCP Support Yes (2.3)

Maximum Display Support: 4

NVlink/ Crossfire Support: No

Accessories: 1 x Speedsetup Manual

Software

ASUS GPU Tweak III & Drivers: please download all software from the support site.

Dimensions

22.9 x 12.3 x 4.9 cm

9.02 x 4.85 x 1.96 inch

Recommended PSU: 550W

Power Connectors: 1 x 8-pin

Slot: 2.5 Slot

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html

* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.

* Crossfire Support for DirecX® 12 and Vulkan®

* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
