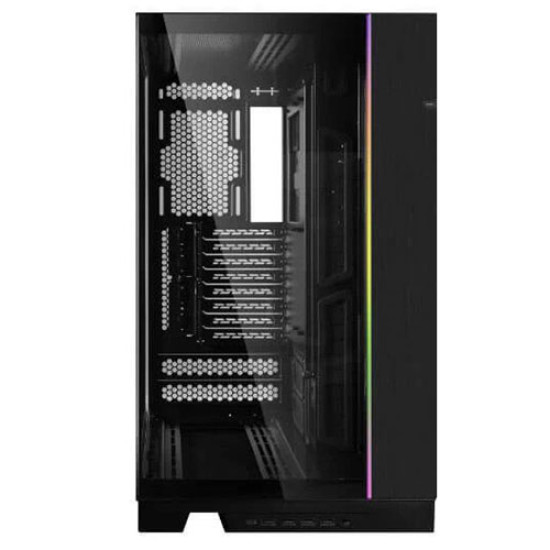

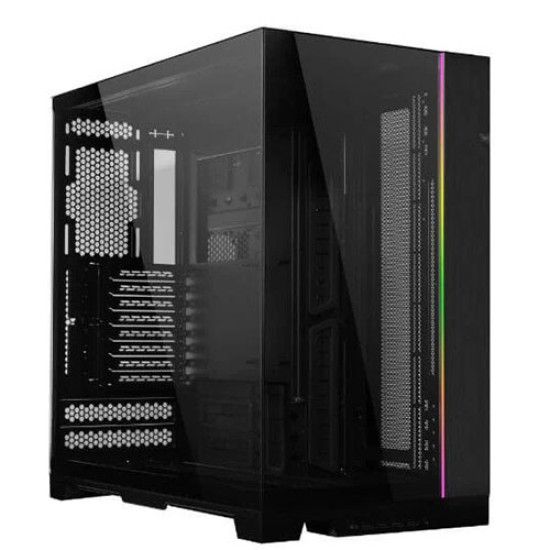

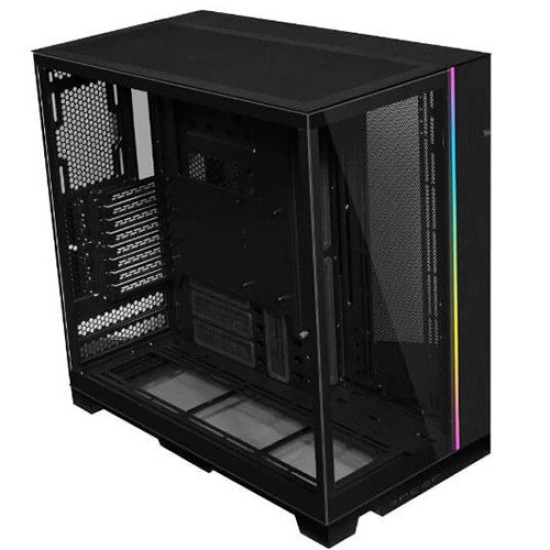

Lian Li O11 Dynamic EVO XL Black Full Tower Cabinet (G99.O11DEXL-X.IN)



FINE MESH, EQUISITE TOUCH
Keeping style and performance in mind, both the top and side panels of the O11D EVO XL are crafted from aluminum with fine mesh, providing a high-end appearance yet delivering superior cooling compared to the O11D XL.

COMPLETE SEEMLESS VIEW
The O11D EVO XL’s front pillar can now be easily removed, providing an unobstructed view for showcasing hardware without affecting the case’s structure.

BIG SIZE, GREAT COMPATIBILITY
Plenty of space is available in the O11D EVO XL for accommodating modern, powerful, and large components. There’s also sufficient cooling with the support for 3 × 420mm radiators.

FLEXIBLE CONFIGURATION
The adjustable motherboard tray can move up and down with three levels of height to fit different fan and radiator combination.
The motherboard tray supports a maximum of E-ATX (width 280mm) motherboard.

WITH WATER COOLING IN MIND
Offers a hidden mounting point for D5 or DDC pump, accessible by removing the bottom drive cage in both reverse and normal modes.

CUSTOMIZABLE CABLE MANAGEMENT
The O11D EVO XL comes with 3 dual-layer cable clips that can be mounted anywhere along vertical grommets pass through, providing versatility for your cable routing plan.

Technical Detail
Brand : Lian Li
Modal : G99.O11DEXL-X.IN

Technical Spec
PRODUCT NAME : O11D EVO XL
CASE TYpoe :Tower Chassis
MODEL : O11DEXL-X
COLOR : Black
DIMENSIONS : (D) 522mm x (W) 304mm x (H) 531.9mm
MATERIAL : Steel, 4.0mm Tempered Glass, Aluminum
MOTHERBOARD SUPPORT : E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX
EXPANSION SLOT : 8
STORAGE Behind MB Tray : 3 x 2.5” SSD
Hard Drive Cage : 4 x 3.5” HDD / 2.5” SSD
GPU LENGTH CLEARANCE : 460mm (Max.)
CPU COOLER HEIGHT CLEARANCE : 167mm (Max.)
PSU : ATX (Under 220mm)

FAN SUPPORT
Top: 3 x 120mm / 3 x 140mm
Side : 3 x 120mm / 3 x 140mm
Bottom : 3 x 120mm / 3 x 140mm
Rear : Up to 2x 120mm
RADIATOR SUPPORT : Top: 360 / 420 / 240 / 280mm
Side : 360 / 420 / 240 / 280mm
Bottom : 360 / 420 / 240 / 280mm

I/O PORTS
1 x Power Button
1 x Reset Button
4 x USB 3.0
1 x USB Type C
1 x Audio
1 x LED Color Button
1 x LED Mode Button

DUST FILTERS
1 x Bottom 1 x Top
2 x Side
