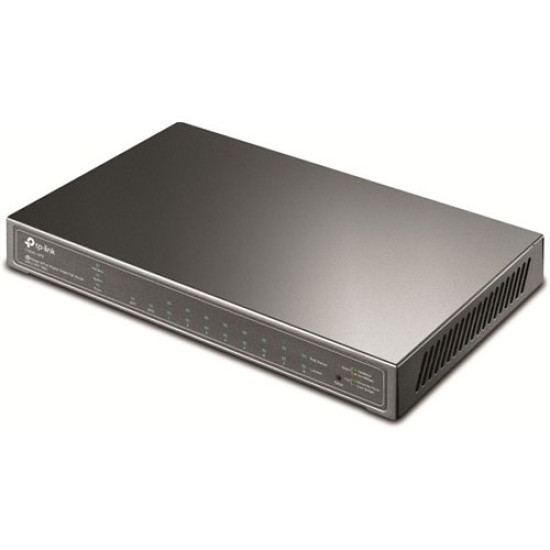

TP-Link JetStream 8-Port Gigabit Smart PoE Switch with 2 SFP Slots - T1500G-10PS (TL-SG2210P)

JetStream 8-Port Gigabit Smart PoE Switch with 2 SFP Slots

TP-Link Gigabit Smart Switch T1500G-10PS is equipped with 8 gigabit RJ45 ports and 2 SFP slots, all RJ45 Ports support the PoE standard with total PoE power budget of 53W and useful PoE power management features. The switch provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.

TP-Link’s Gigabit Smart Switch T1500G-10PS is especially designed for the small and medium business networks that require efficient network management. T1500G-10PS comes with a comprehensive set of features, such as Link Aggregation Group, 802.1Q VLAN, Access Control Lists (ACL), Quality of Service(QoS L2 to L4), Storm Control and IGMP Snooping to provide a small or medium-sized business with a network that is geared for growth while ensuring performance and reliability. What’s more, its easy-to-use web management interface means faster setup and configuration with less downtime, providing the ideal solution for your business network.

Abundant Layer 2 features

For more application of layer 2 switches, T1500G-10PS supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP Snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.

Enterprise Level Management Features

T1500G-10PS is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI). SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.

Specification

HARDWARE FEATURES

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p

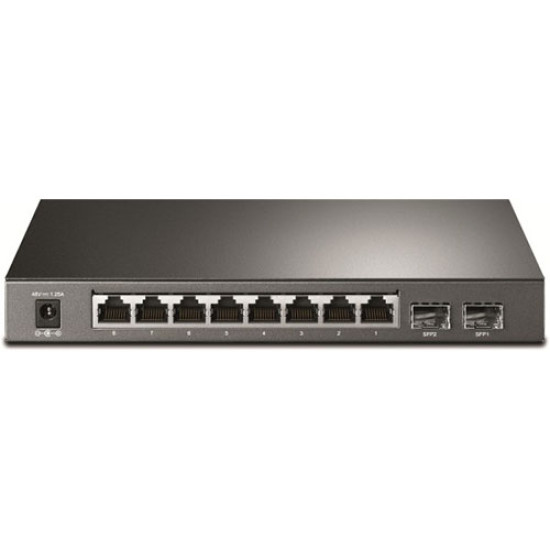

Interface 8 10/100/1000Mbps RJ45 Ports

2 SFP slots

(Auto-Negotiation/Auto MDI/MDIX)

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity : Fanless

Physical Security Lock : No

Power Supply : 100~240VAC, 50/60Hz

External Power Adapter(Output: 48VDC/1.25A)

PoE Ports (RJ45) Standard: 802.3af compliant

PoE Ports: 8 Ports

Power Supply: 53W

Dimensions ( W x D x H ) : 209 * 126 * 26mm

Max. Power Consumption : 9.92W (220V/50Hz with no PD connected)

64.89W (110V/60Hz with 53W PD connected)

Max Heat Dissipation  :33.85 BTU/h (with no PD connected)

221.40 BTU/h (with 53W PD connected)

PERFORMANCE

Bandwidth/Backplane : 20Gbps

Packet Forwarding Rate : 14.9Mpps

MAC Address Table : 8K

Jumbo Frame : 9KB

SOFTWARE FEATURES

Quality of Service

802.1p CoS/ DSCP priority

8 priority queues

Priority Schedule Mode

SP (Strict Priority)

WRR (Weighted Round Robin)

Queue Weight Config

Bandwidth Control

Port/Flow based Rating Limit

Smoother Performance

Actions for flows

Mirror(to supported interface)

Redirect(to supported interface)

Rate Limit

QoS Remark

Storm Control

Multiple Control Modes(kbps/ratio/pps)

Broadcast/Multicast/Unknown-Unicast Control

L2 Features

Link Aggregation

static link aggregation

Up to 8 aggregation groups and up to 8 ports per group

802.3ad LACP

Spanning Tree Protocol

802.1D STP

802.1w RSTP

802.1s MSTP

STP Security: Loop back detection, TC Protect, BPDU

Filter/Protect

Root Protect

Loopback Detection

Flow Control

802.3x Flow Control

Mirroring

Port Mirroring

One-to-One

Many-to-One

Flow-Based

Ingress/Egress/Both

CPU Mirroring

Device Link Detect Protocol(DLDP)

L2 Multicast

512 IPv4,IPv6 shared multicast groups

IGMP Snooping

IGMP v1/v2/v3 Snooping

Fast Leave

IGMP Snooping Querier

IGMP Authentication

Static Group Config

MLD Snooping

MLD v1/v2 Snooping

Fast Leave

MLD Snooping Querier

Static Group Config

Multicast VLAN Registration

Multicast Filtering

VLAN

VLAN Group

Max. 4K VLAN Groups

802.1Q tag VLAN

MAC VLAN

Protocol VLAN

GVRP

Voice VLAN

Access Control List

Support up to 230 entries

Time-Range

Time Slice

Week Time-Range

Absolute Time-Range

Holiday

Time-based ACL

MAC ACL

Source MAC

Destination MAC

VLAN ID

User Priority

Ether Type

IP ACL

Source IP

Destination IP

IP Protocol

TCP Flag

TCP/UDP Source Port

TCP/UDP Destination Port

DSCP/IP TOS

IPv6 ACL

Combined ACL

Rule Operation

Permit/Deny

Policy Action

Mirror

Rate Limit

Redirect

QoS Remark

ACL Rules Binding

Port Binding

VLAN Binding

Security

AAA

802.1X

Port based authentication

MAC(Host) based authentication

Authentication Method includes PAP/EAP-MD5/EAP-TLS/EAP-TTLS/EAP-PEAP

MAB

Guest VLAN

Support Radius authentication and accountability

IP/IPv6-MAC Binding

512 Binding Entries

DHCP Snooping

DHCPv6 Snooping

ARP Inspection

ND Detection

IP Source Gurad

253 Entries

Source IP+Source MAC

IPv6 Source Gurad

183 Entries

Source IPv6 Address+Source MAC

DoS Defend

Static/Dynamic/Permanent Port Security

Up to 64 MAC addresses per port

Broadcast/Multicast/Unicast Storm Control

kbps/ratio/pps control mode

Port Isolation

Secure web management through HTTPS with SSLv3/TLS1.0

Secure Command Line Interface (CLI) management with SSHv1/SSHv2

IP/Port/MAC based access control

IPv6 Dual IPv4/IPv6

Multicast Listener Discovery(MLD) Snooping

IPv6 neighbor discovery (ND)

Path maximum transmission unit (MTU) discovery

Internet Control Message Protocol (ICMP) version 6

TCPv6/UDPv6

IPv6 applications

DHCPv6 Client

Ping6

Tracert6

Telnet(v6)

IPv6 SNMP

IPv6 SSH

IPv6 SSL

Http/Https

IPv6 TFTP

Management Features

Web-based GUI and CLI management

SNMPv1/v2c/v3

SNMP Trap/Inform

RMON (1,2,3,9 groups)

SDM Template

DHCP/BOOTP Client

Dual Image, Dual Configuration

CPU Monitoring

Cable Diagnostics

EEE

System Log

802.1ab LLDP/ LLDP-MED
