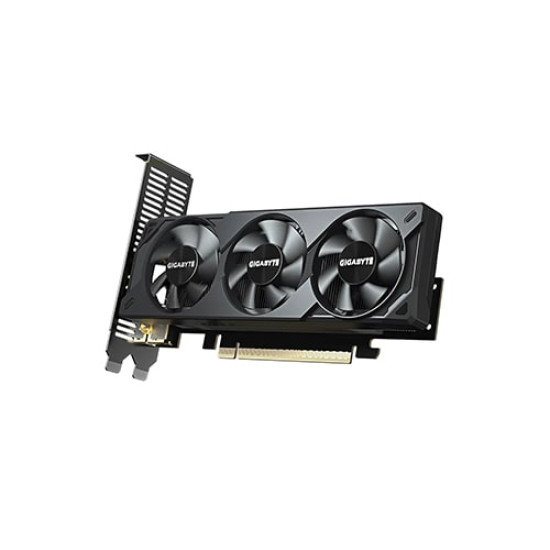

Gigabyte GeForce RTX 5060 OC Low Profile 8GB GDDR7 (GV-N5060OC-8GL)

Key Features

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Powered by GeForce RTX™ 5060
• Integrated with 8GB GDDR7 128 bit memory interface
• Low Profile Design with 182mm card length
• Server-grade Thermal conductive gel
• Graphene Nano Lubricant
• Supports up to 4 displays

GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM

GIGABYTE's custom-designed cooling system ensures efficient heat dissipation, featuring server-grade thermal conductive gel, a copper plate with direct GPU contact, and composite copper heat pipes. These elements facilitate enhanced heat transfer to the heatsink, enabling higher performance at lower temperatures.

SERVER-GRADE THERMAL CONDUCTIVE GEL

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

COPPER PLATE & COMPOSITE COPPER HEAT PIPE

The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

LOW PROFILE DESIGN

At just 182mm in length, the card is perfect for compact builds. An additional low-profile bracket is included for seamless adaptability to different build needs.

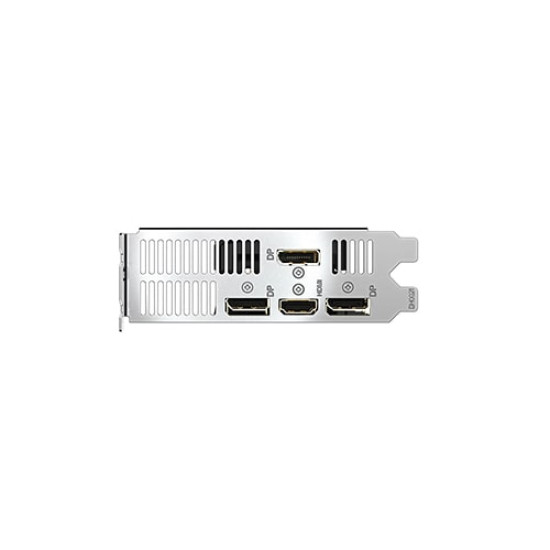

AMPLE CONNECTIVITY

Enjoy versatile display options with three DisplayPorts and one HDMI port, supporting up to four displays simultaneously. Meets the demands of multi-display setups, high-resolution applications, and delivers an ultimate gaming performance experience.

POWER THROUGH THE GAME

GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specification

Graphics Processing : GeForce RTX™ 5060

Core Clock : 2512 MHz (Reference card : 2497MHz)

CUDA® Cores : 3840

Memory Clock : 28 Gbps

Memory Size : 8 GB

Memory Type : GDDR7

Memory Bus : 128 bit

Card Bus : PCI-E 5.0

Digital max resolution : 7680x4320

Multi-view : 4

Card size : L=182 W=69 H=36

PCB Form : ATX

DirectX : DirectX 12 API

OpenGL : 4.6

Recommended PSU : 550W

Power Connectors : 8 Pin*1

Output

DisplayPort 2.1b *2

DisplayPort 1.4a *1

HDMI 2.1b *1

Accessories

1. Quick guide

2. Low Profile Bracket
