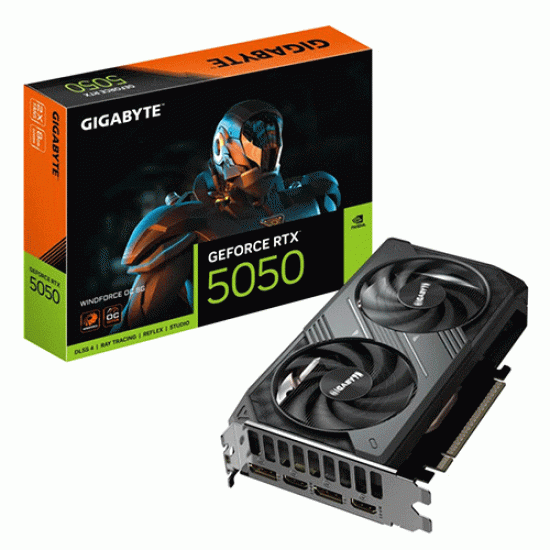

Gigabyte GeForce RTX 5050 WINDFORCE OC 8GB GDDR6 (GV-N5050WF2OC-8GD)

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4

Powered by GeForce RTX™ 5050

Integrated with 8GB GDDR6 128bit memory interface

WINDFORCE cooling system

Hawk fan

Server-grade Thermal conductive gel

Reinforced structure

The Ultimate Platform for Gamers and Creators

Fifth-Gen Tensor Cores

Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors

Optimized for neural shaders

Fourth-Gen Ray Tracing Cores

Built for Mega Geometry

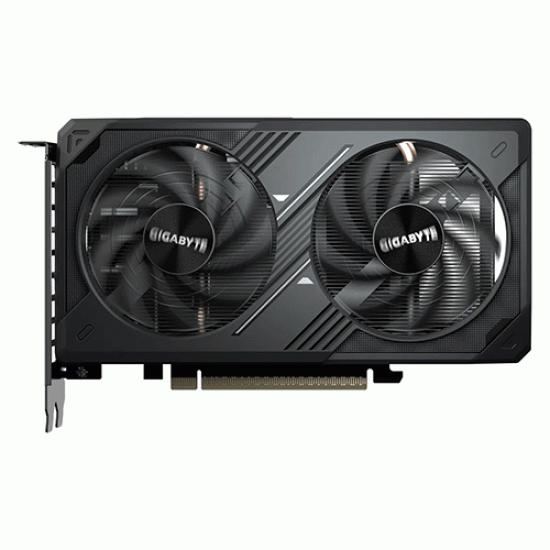

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.

HAWK FAN

The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

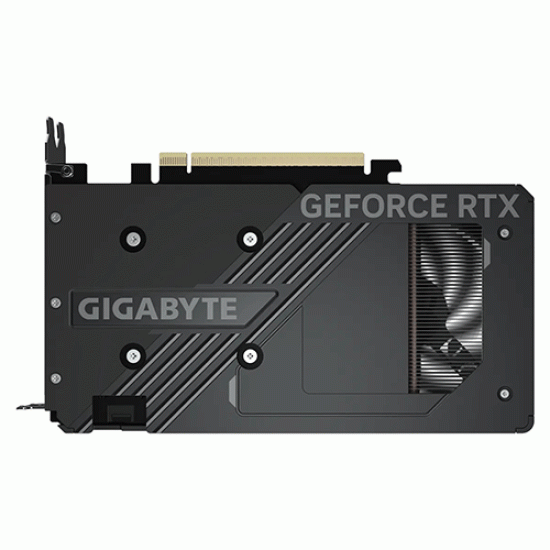

REINFORCED STRUCTURE

The reinforced backplate, securely fastened to the I/O bracket, provides exceptional structural integrity.

Specification :

Graphics Processing : GeForce RTX™ 5050

Core Clock : 2587 MHz (Reference card : 2572MHz)

CUDA® Cores : 2560

Memory Clock : 20 Gbps

Memory Size : 8 GB

Memory Type : GDDR6

Memory Bus : 128 bit

Card Bus : PCI-E 5.0

Digital max resolution : 7680x4320

Multi-view : 4

Card size : L=199 W=116 H=40 mm

PCB Form : ATX

DirectX : DirectX 12 API

OpenGL : 4.6

Recommended PSU : 550W

Power Connectors : 8 Pin*1

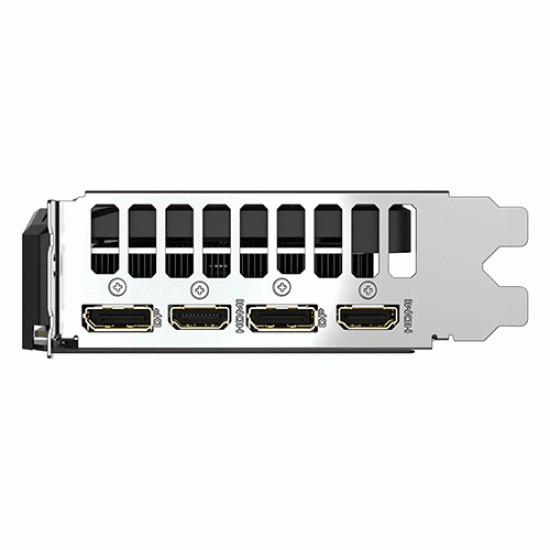

Output : DisplayPort 2.1b *2

              HDMI 2.1b *2

Accessories : Quick guide
