Gigabyte GeForce RTX 5090 WINDFORCE OC 32GB GDDR7 (GV-N5090WF3OC-32GD)

Key Features

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Powered by GeForce RTX™ 5090
• Integrated with 32GB GDDR7 512bit memory interface
• WINDFORCE cooling system
• Hawk fan
• Server-grade Thermal conductive gel
• Dual BIOS (Performance / Silent)
• Reinforced structure
• Versatile VGA holder

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.

HAWK FAN

The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

SERVER-GRADE THERMAL CONDUCTIVE GEL

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

LARGE VAPOR CHAMBER & COMPOSITE COPPER HEAT PIPE

The large vapor chamber directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

DUAL BIOS (Performance / Silent)

The factory default setting is Performance mode, which provides users with the best performance. However, switching to Silent mode will enjoy a quieter experience.

REINFORCED STRUCTURE

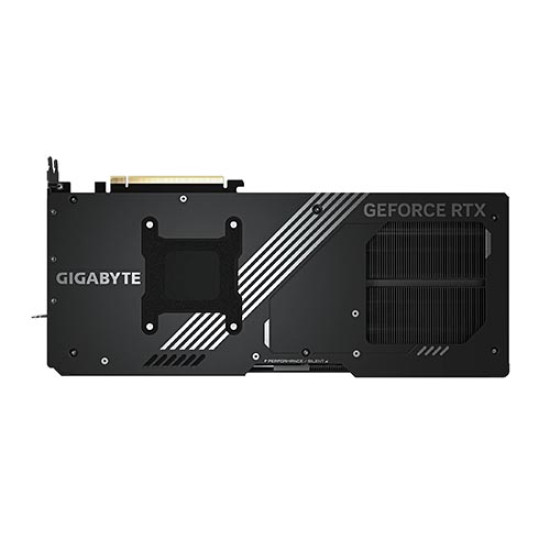

The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

VERSATILE VGA HOLDER

Our newly designed VGA holder offers dozens of customizable mounting options, ensuring your graphics card is securely supported and prevents sagging. Its sleek design allows for discreet installation, enhancing the overall aesthetics of your system.

POWER THROUGH THE GAME

GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specification

Graphics Processing : GeForce RTX™ 5090

Core Clock : 2467 MHz (Reference card : 2407MHz)

CUDA® Cores : 21760

Memory Clock : 28 Gbps

Memory Size : 32 GB

Memory Type : GDDR7

Memory Bus : 512 bit

Card Bus : PCI-E 5.0

Digital max resolution : 7680x4320

Multi-view : 4

Card size : L=342 W=150 H=65 mm

PCB Form : ATX

DirectX : DirectX 12 API

OpenGL : 4.6

Recommended PSU : 1000W

Power Connectors : 16 Pin*1

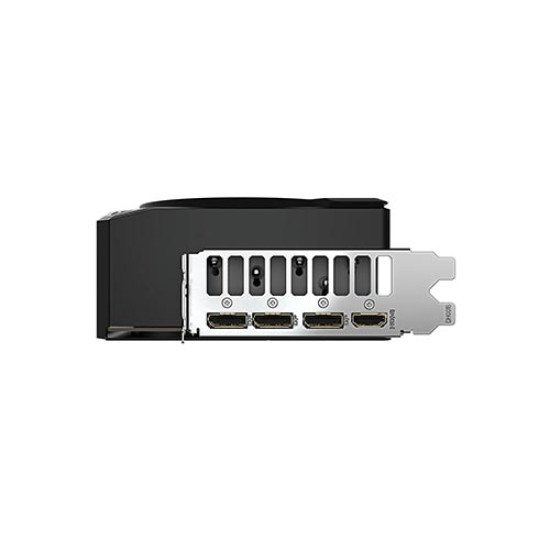

Output

DisplayPort 2.1b *3

HDMI 2.1b *1

Accessories

1. Quick guide

2. 1x 12V-2x6 to 4x PCIe 8pin adapter

3. Versatile VGA holder

4. Versatile VGA holder manual
