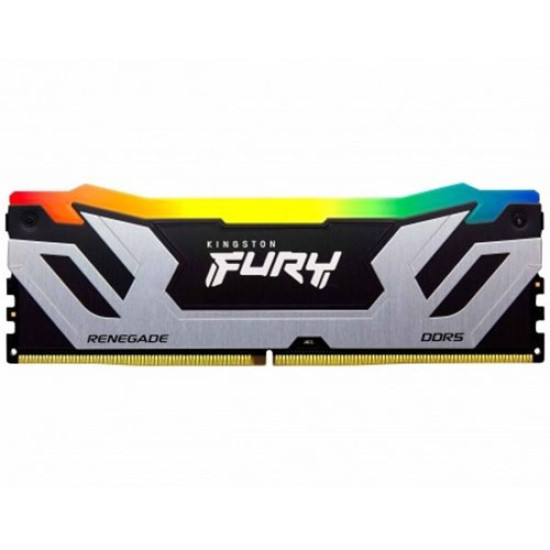

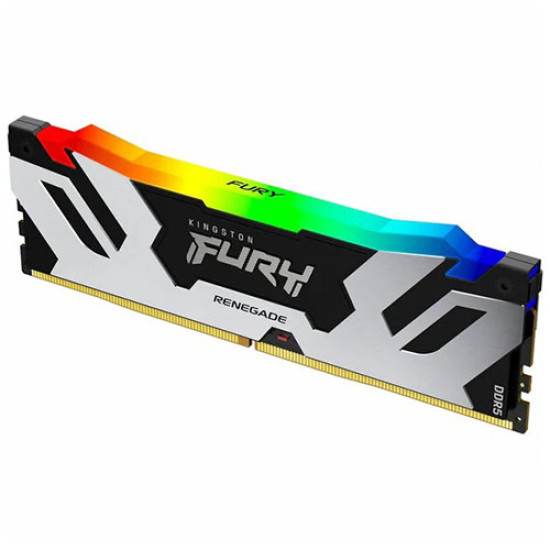

Kingston FURY 32GB DDR5-6400 CL32 (KF564C32RSA-32)

Kingston FURY KF564C32RSA-32 is a 4G x 64-bit (32GB)

DDR5-6400 CL32 SDRAM (Synchronous DRAM) 2Rx8, memory

module, based on sixteen 2G x 8-bit FBGA components per module.

The module supports Intel® Extreme Memory Profiles (Intel®

XMP) 3.0. Each module has been tested to run at DDR5-6400 at a

low latency timing of 32-39-39 at 1.4V. The SPDs are

programmed to JEDEC standard latency DDR5-4800 timing

of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact

fingers. The JEDEC standard electrical and mechanical

FEATURES

Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• Height 1.73” (44.00mm), w/heatsink

Specifications

CL(IDD) : 40 cycles

Row Cycle Time (tRCmin) : 48ns(min.)

Refresh to Active/Refresh : 295ns(min.)

Command Time (tRFCmin)

Row Active Time (tRASmin) : 32ns(min.)

UL Rating : 32ns(min.)

Operating Temperature : 0oC to +85oC

Storage Temperature : -55oC to +100o
