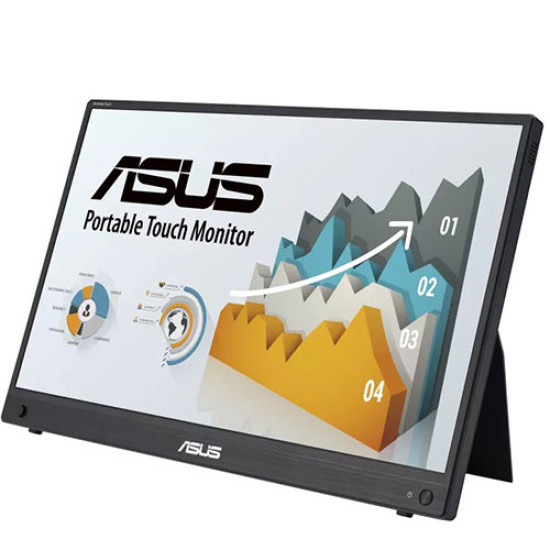

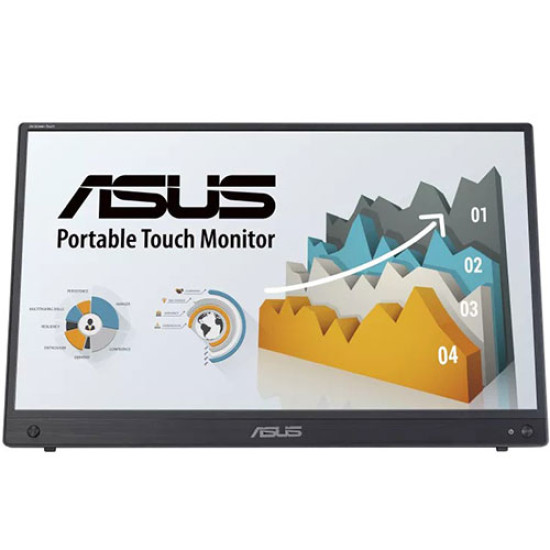

Asus ZenScreen Touch 15.6 inch Portable Monitor (MB16AMTR)

Features

15.6-inch IPS portable monitor with slim profile and light weight

Responsive and intuitive input with 10-point touch functionality supports high-productivity multitasking

Powerful built-in 7800 mAh battery provides up to four hours of use

Hybrid-signal USB-C(DP Alt mode+ USB signal) and mini-HDMI ports provide versatile connectivity with smartphones, laptops, game consoles, tablets and more

Integrated kickstand offers both landscape and portrait orientation to suit different scenarios

Built-in ¼”-threaded socket for compatibility with a standard tripod

Productivity at the tip of your fingers

ASUS ZenScreen™ Touch MB16AMTR is a slim and lightweight 15.6-inch IPS FHD portable monitor with a large 7800mAh built-in battery designed to take your mobile productivity to new heights. Its responsive and intuitive 10-point touch screen supports swipe, scroll, drag and pinch gestures to help you get tasks done more efficiently. Hybrid-signal USB-C™ and mini-HDMI connectivity enables displaying content from a wide-range of portable devices, so you can enjoy an expansive view for the best work and entertainment experiences, wherever you go.

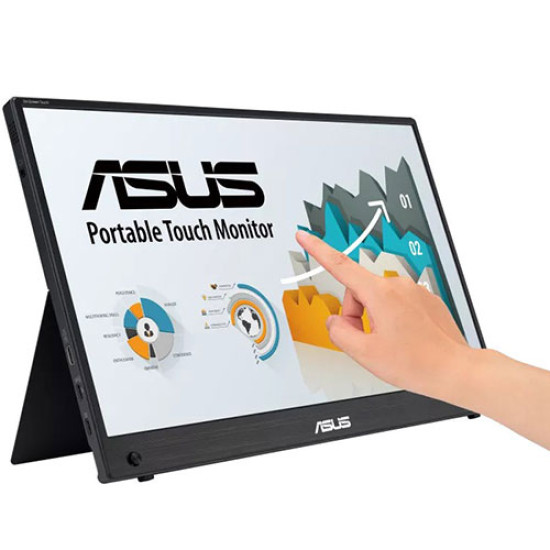

Tap into productivity

With its interactive 10-point touchscreen, ZenScreen Touch offers highly-accurate, responsive and seamless touch experiences1, enabling you to edit documents, draw on slides or play games with your fingertips. It is Windows 11 compatible, allowing you to work smarter and more efficiently.

Sleek and portable design

ZenScreen Touch MB16AMTR is ideal for life on the go. Its slim 1.19cm profile makes it easy to slip into any travel or messenger bag, and a 7800 mAh battery provides up to 4 hours of battery life3 – making ZenScreen Touch MB16AMTR ready for productivity or entertainment anywhere.

Designed for comfortable viewing

A fold-out kickstand props ZenScreen Touch MB16AMTR up on any flat surface and offers easy tilt adjustments to ensure comfortable viewing angles and working positions. In addition, a ¼ -inch threaded tripod socket at the rear lets you attach the monitor to a standard tripod4 or table mount.

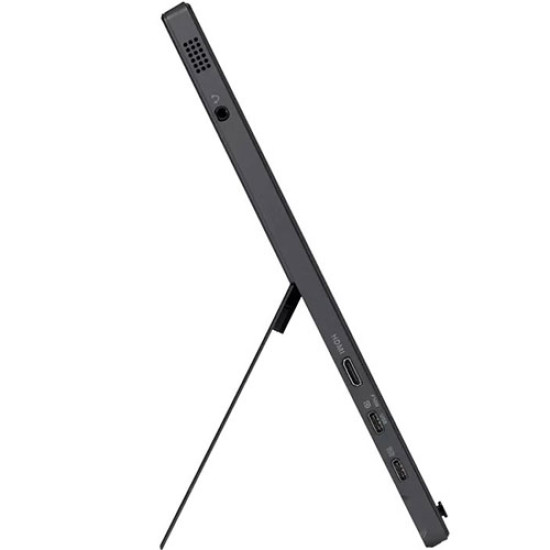

Hybrid-signal USB-C and HDMI connectivity

Featuring hybrid-signal USB-C™and mini-HDMI5 connectivity, ZenScreenTouch MB16AMTR lets you display content from a wide variety of devices, including laptops,6 smartphones, game consoles, and tablets, providing a more expansive view for work or play. It features an innovative hybrid-signal solution with native support for USB Type-C connections and uses an installed driver to support USB Type-A7 connectors for full compatibility. The reversible, any-way-up USB-C design enables quick, hassle-free connection to any device.

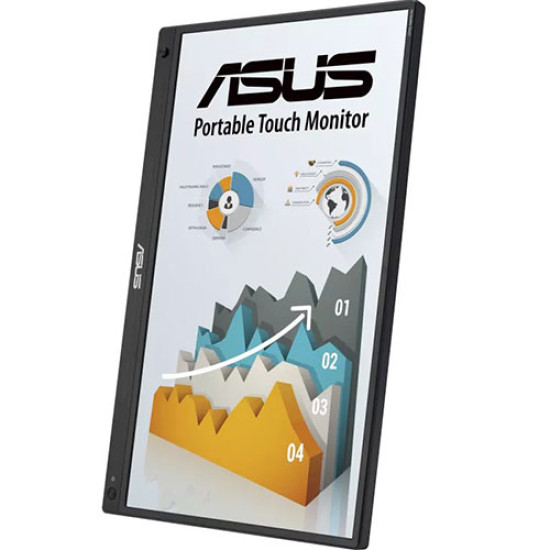

Automatic screen orientation

When connected to a Windows PC, the ASUS DisplayWidget Center tool8 enables ZenScreen to sense its orientation and automatically switches the display between landscape and portrait modes. Landscape mode is ideal for presentations and spreadsheets, while portrait style provides the perfect long view for documents, books or websites

ASUS DisplayWidget Center

It is an app that allows you to tweak monitor settings with a mouse instead of using the buttons on the monitor. The app saves monitor settings and also provides system notifications and facilitates automatic updates.

ASUS Eye Care

ASUS Ultra-Low Blue Light technology reduces potentially harmful blue light emissions and includes additional features that are beneficial to those who spend long hours in front of a display.

ASUS Blue Light Filter

The ASUS Blue Light Filter protects viewers from harmful blue light. This feature offers a range of filter settings that are easy to access via the intuitive OSD menu.

ZenScreen MB16AMTR has passed stringent performance tests and is certified by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services.

Eco-friendly packaging

The sustainable packaging of ZenScreen MB16AMTR is FSC® Mix-certified. The lightweight, eco-friendly cardboard box that it’s packed in is designed to keep overall volume to a minimum, for more efficient shipping.

Specifications

Model : ASUS ZenScreen Touch MB16AMTR

Display

Panel Size (inch) : 15.6

Aspect Ratio : 16:9

Display Viewing Area (H x V) : 344.16 x 193.59 mm

Display Surface : Anti-Glare

Backlight Type : LED

Panel Type : IPS

Viewing Angle (CR≧10, H/V) : 170°/ 170°

Pixel Pitch : 0.179mm

Resolution : 1920x1080

Brightness (Typ.) : 250cd/㎡

Contrast Ratio (Typ.) : 700:1

Display Colors : 260K

Response Time : 5ms(GTG)

Refresh Rate (Max) : 60Hz

Touch : Yes, Projective Capacitive 10-point Touch

Flicker-free : Yes

Features

SPLENDID Technology : Yes

Color Temp. Selection : Yes(4 modes)

QuickFit : Yes (Photo/Alighment Grid)

HDCP : Yes

DisplayWidget : Yes, DisplayWidget Center

Low Blue Light : Yes

Audio : Speaker : Yes(1Wx2)

I/O Ports

USB-C x 2 (DP Alt Mode & USB 3.2 x1 + DC In x1)

Mini HDMI x 1

Earphone Jack : Yes

USB-C Power Delivery : 10W

USB 3.2 (Signal) : x 1

Signal Frequency

Digital Signal Frequency : HDMI: 24~83 KHz (H) / 50~61 Hz (V)

USB-C: 83~83 KHz (H) / 50~61 Hz (V)

Battery : Battery : 7800mAh

Power Consumption

Power Consumption : 10W

Power Saving Mode : <0.5W

Power Off Mode : <0.3W

Voltage : 100-240V, 50/60Hz

Mechanical Design

Tilt : Yes (+15° ~ +35°)

Height Adjustment : No

1/4" Tripod Socket : Yes

Dimensions (Esti.)

Phys. Dimension (W x H x D) : 35.99 x 22.68 x 1.19 cm (14.17" x 8.93" x 0.47")

Phys. Dimension without Stand (W x H x D) : 35.99 x 22.68 x 1.19 cm (14.17" x 8.93" x 0.47")

Box Dimension (W x H x D) : 48.8 x 29.8 x 8.8 cm (19.21" x 11.73" x 3.46")

Weight (Esti.)

Net Weight without Stand : 1.15 kg (2.54 lbs)

Gross Weight : 2.29 kg (5.05 lbs)

Accessories (vary by regions)

Mini HDMI to HDMI cable

Power adapter

Quick start guide

USB Type-C to A adapter

USB-C cable

Warranty Card

ZenScreen sleeve

ZenScreen tripod hole cover

USB-C to A cable

Operation Temperature / Humidity

Operation Temperature : 5~35℃

Operation Humidity : 20-90% RH

Certificate

TÜV Flicker-free

TÜV Low Blue Light
