Asus ProArt Display 24 inch 4K HDR Monitor (PA24US)

ProArt Display PA24US is 23.6-inch 4K HDR monitor offers 187 high PPI IPS panel with 99% Adobe RGB and 95% DCI-P3 coverage to deliver highly accurate colors that bring out the finest details in your creations. 12G-SDI input can receive video signals up to 4K@60Hz and up to quad-view at same time. A built-in motorized flip colorimeter for auto / self calibration to ensure professional-grade color accuracy. 600 nits peak brightness with multiple HDR format support provides creators with the ideal platform for working HDR content.

Digital Imaging Technician (DIT)

Needs a hi-quality SDI monitor for on-set quick color grading and managing production workflow. It can provide precise and true color reproduction and details from camera and present to director/customers.

Colorists

12G-SDI input connection let creators who using SDI PCIe capture cards or capture boxes can be directly connect to the PA24US via SDI instead of HDMI, delivers 4K high quality uncompressed videos to preview precise image performance.

Filmmakers & Video Editors

An ultra-high-resolution with wide-color-gamut monitor performance is a must-have tool for 4K HDR video production. Factory pre-calibration ensures industry-leading color fidelity, and a wide color gamut and Delta E < 1 color difference ensures outstanding color accuracy.

Uncompressed 4K Video

23.6-inch with 4K UHD (3840 x 2160) panel delivers four times the pixel density and three times more onscreen space than similarly sized FHD displays, resulting in sharper visuals with greater levels of detail.

ProArt Display PA24US features 12G-SDI connection, allows receiving and transmitting uncompressed up to 4K@60Hz video footage directly from camera devices with ultra-low latency.

Uncompressed 4K Video

23.6-inch with 4K UHD (3840 x 2160) panel delivers four times the pixel density and three times more onscreen space than similarly sized FHD displays, resulting in sharper visuals with greater levels of detail.

ProArt Display PA24US features 12G-SDI connection, allows receiving and transmitting uncompressed up to 4K@60Hz video footage directly from camera devices with ultra-low latency.

Uncompressed 4K Video

23.6-inch with 4K UHD (3840 x 2160) panel delivers four times the pixel density and three times more onscreen space than similarly sized FHD displays, resulting in sharper visuals with greater levels of detail.

ProArt Display PA24US features 12G-SDI connection, allows receiving and transmitting uncompressed up to 4K@60Hz video footage directly from camera devices with ultra-low latency.

High Dynamic Range

ProArt Display PA24US features up to 600 nits of brightness, also passed VESA DisplayHDR 600 certification. Multiple HDR format supports HDR-10 / HLG high dynamic range technology for brighter whites and darker blacks, resulting in a rich and lifelike viewing experience.

Self Calibration

ProArt Displays now boasts an innovative self-calibration feature for the embedded colorimeter. The self-calibration is a standalone solution without any software and compatible with any operating system. You can directly complete the color calibration and scheduled color calibration functions through the OSD operation of ProArt Display. With this flexibility, you can achieve color consistency anytime and anywhere.

ProArt Calibration

ASUS ProArt Calibration technology saves all color parameter profiles on the ProArt monitor’s internal scaler IC chip, instead of on the PC. The monitor can be calibrated and the look-up table subsequently rewritten, allowing users to connect it to devices with different operating systems or applications without needing to adjust settings.

ProArt Color Center

ProArt Color Center offers remote group control and calibration tools, allowing you to handle these vital tasks from a centralized location. You’ll be able to remote control & group calibration, scheduled calibration and customized color parameters to maintain professional-level accuracy and consistency all the time.

Seamless Calibration

ProArt Displays are compatible with most major calibrators, including those from X-Rite, Datacolor and Klein. They also work seamlessly with Calman and Light Illusion ColourSpace CMS professional hardware calibration software.

Enjoy true-to-life color

PA24US exceeds industry color reproduction standards with its 99% Adobe RGB and 95% DCI-P3 color gamut, and it features true 10-bit color depth to display more than 1.07 billion colors. 600 nits peak brightness to ensure the deepest blacks and brightest whites, enabling PA24US to accurately display the most minute details in shadows and bright highlights for incredibly realistic visuals.

Class-Leading Color Fidelity

Each ProArt display is factory pre-calibrated using a new, three-scale process to guarantee industry-leading color fidelity. The display then undergoes stringent testing using ASUS advanced grayscale tracking technology to ensure smoother color gradations, better uniformity and high color accuracy with a Delta E < 1 color difference value. Each grayscale level is also carefully measured and set to ensure compliance with the precise DICOM

12G-SDI Connectivity

SDI (Serial digital interface) is a professional video signal that’s preferred in production environments, providing longer distance without video compression with reliability. BNC-type cable that has specialized connectors on each end to lock into the devices they connect to, so it cannot be easily dropped or pulled out.Compare with general 3G-SDI, 12G-SDI provides up to 4x bandwidth allows receiving and transmitting uncompressed up to 4K@60Hz video footage directly from camera devices with ultra-low latency.

Accurate Real-time On-set Preview

QuickFit Plus is clever feature overlays a grid on the screen that allows to align and preview.

Center marker and safety area it can real-time preview when you are on-set shooting to avoid video image beyond the screen.

Ruler provides actual size of inch ruler in the edge; you also can customize the working size to fit your preference.

Environmental Certification*

ASUS monitors are stringently tested to meet the requirements of world-leading sustainability certifications. These tests include a comprehensive database of up-to-date criteria, independent verification, and a structured system for continuous improvement.

Eco-friendly Packaging

The latest ASUS monitor packaging are made of 100% recyclable paper packaging. ASUS has designed the packaging to minimize weight and volume, which helps conserve natural resources and allows more devices to be transported in a single shipping container.

Energy-Efficient Features

Select ASUS monitors have a power-saving Eco-mode, and achieve zero-watt power consumption with hard-switch off.

Eco-friendly Materials

Extensive research and development ensure ASUS monitors are made from eco-friendly materials like post-consumer recycled (PCR) plastics or components like mercury-free panels.

Specifications

Model : ProArt Display PA24US

Display

Panel Size (inch) : 23.6

Aspect Ratio : 16:9

Display Viewing Area (H x V) : 522.43 x 293.87 mm

Display Surface : Anti-Glare

Backlight Type : LED

Panel Type : IPS

Viewing Angle (CR≧10, H/V) : 178°/ 178°

Pixel Pitch : 0.135mm

Resolution : 3840x2160

Color Space (sRGB) : 100%

Color Space (Adobe RGB) : 99%

Color Space (DCI-P3) : 95%

Brightness (HDR, Peak) : 600 cd/㎡

Brightness (Typ.) : 350cd/㎡

Contrast Ratio (HDR, Max) : 1,000,000:1

Contrast Ratio (Typ.) : 1000:1

Display Colors : 1073.7M (10 bit)

Response Time : 5ms(GTG)

Refresh Rate (Max) : 60Hz

HDR (High Dynamic Range) Support : HDR10

HDR (High Dynamic Range) Support : HLG

Flicker-free : Yes

LCD ZBD Warranty : Yes(3 yr)

Features

Trace Free Technology : Yes

ProArt Preset : Standard

ProArt Preset : sRGB

ProArt Preset : Adobe RGB

ProArt Preset : DCI-P3

ProArt Preset : Rec.2020

ProArt Preset : DICOM

ProArt Preset : Rec.709

ProArt Preset : HDR_PQ DCI

ProArt Preset : HDR_PQ Rec.2020

ProArt Preset : HDR_HLG

ProArt Preset : HDR_HLG BT.2100

ProArt Preset : HDR_HLG DCI

ProArt Preset : User mode1

ProArt Preset : User mode2

ProArt Preset : User mode3

Color Temp. Selection : Yes (5 modes)

Color Adjustment : RGB Tuning (Gain / Offset)

Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6)

Color Accuracy : △E< 1

ASUS ProArt Hardware Calibration : Yes

ProArt Palette : Yes

QuickFit Plus : Yes

PIP / PBP Technology : Yes

HDCP : Yes, 2.2

VRR Technology : Yes (Adaptive-Sync)

Motion Sync : Yes

HDR Preview : Yes

Low Blue Light : Yes

Multiple HDR Mode : Yes

Audio : Speaker : Yes(2Wx2)

I/O Ports

12G-SDI x 1

USB-C x 1 (DP Alt Mode)

DisplayPort 1.4 x 1

HDMI(v2.0) x 2

USB Hub : 2x USB 3.2 Gen 1 Type-A

Earphone Jack : Yes

USB-C Power Delivery : 80W

Signal Frequency : Digital Signal Frequency : 15~135 KHz (H) / 48~60 Hz (V)

Power Consumption

Power Consumption : <24.1W

Power Saving Mode : <0.5W

Power Off Mode : 0W (hard switch)

Voltage : 100-240V, 50/60Hz

Mechanical Design

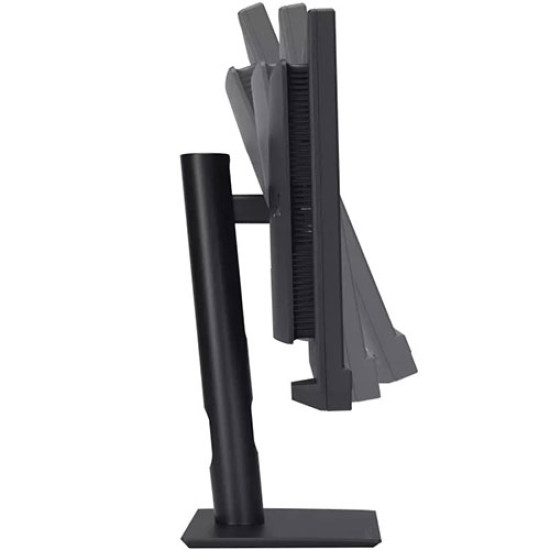

Tilt : Yes (+21° ~ -3°)

Swivel : Yes (+30° ~ -30°)

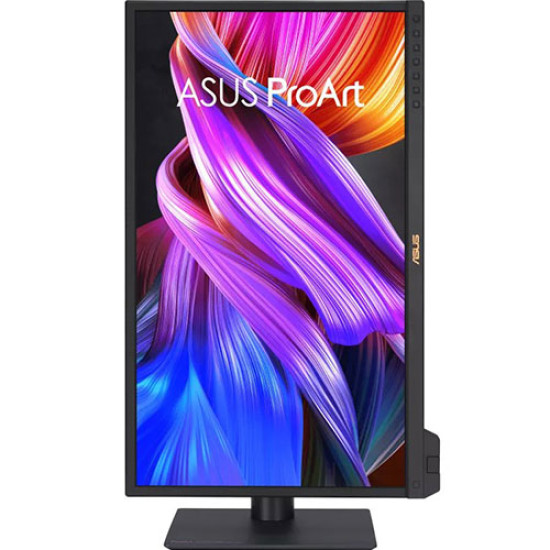

Pivot : Yes (+90° ~ -90°)

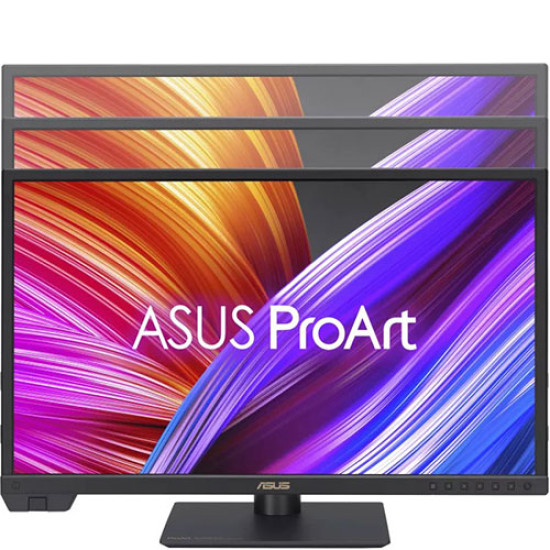

Height Adjustment : 0~130mm

Embedded Colorimeter : Yes (Support Self-Calibration)

Ambient Light Sensor : Yes

VESA Wall Mounting : 100x100mm

Kensington Lock : Yes

Dimensions (Esti.)

Phys. Dimension (W x H x D) : 54.9 x 52.1 x 19.0 cm (21.61" x 20.51" x 7.48")

Phys. Dimension without Stand (W x H x D) : 54.9 x 34.6 x 6.3 cm (21.61" x 13.62" x 2.48")

Box Dimension (W x H x D) : 76.1 x 15.2 x 47.9 cm (29.96" x 5.98" x 18.86")

Weight (Esti.)

Net Weight : 6.00 kg (13.23 lbs)

Net Weight without Stand : 4.30 kg (9.48 lbs)

Gross Weight : 9.70 kg (21.38 lbs)

Accessories (vary by regions)

Color pre-calibration report

DisplayPort cable

HDMI cable

Power cord

Quick release stand

Quick start guide

USB-C cable

Warranty Card

Welcome Card

Certificate

TÜV Flicker-free

TÜV Low Blue Light

VESA DisplayHDR 600

Calman Ready

Mac Compliance
