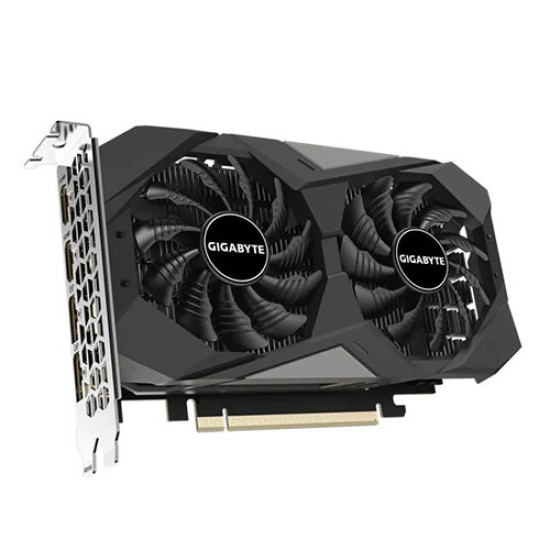

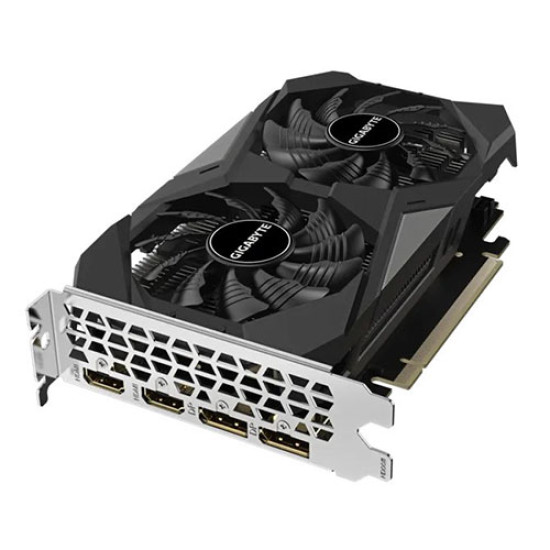

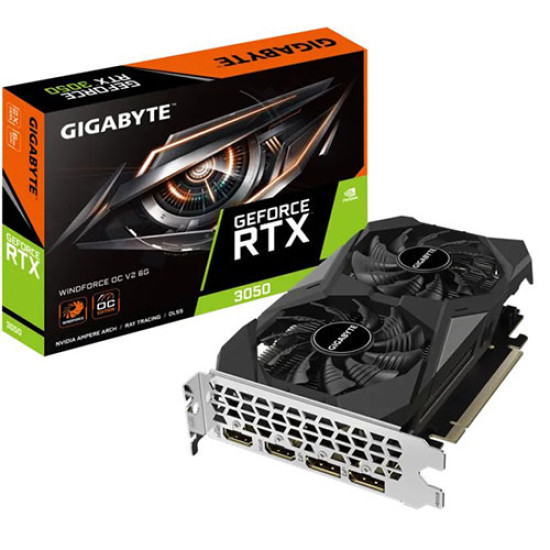

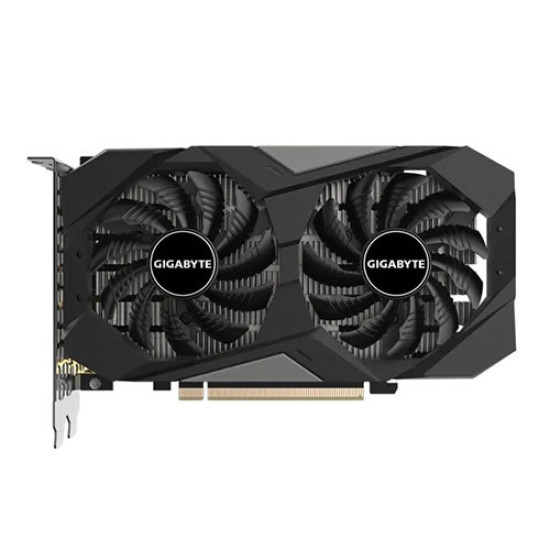

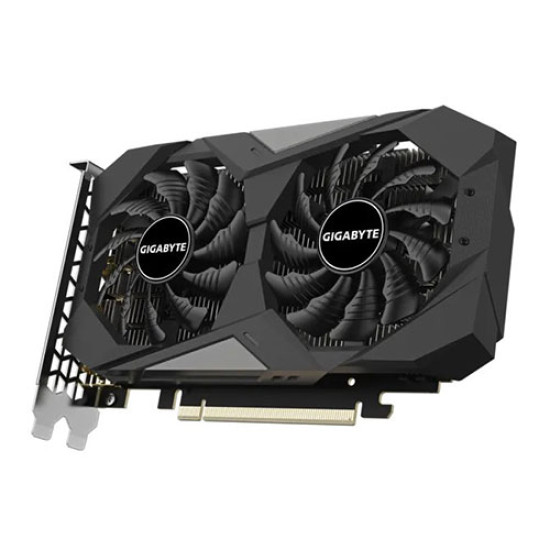

Gigabyte GeForce RTX 3050 WINDFORCE OC V2 6G GDDR6 (GV-N3050WF2OCV2-6GD)

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system features two unique blade fans, alternate spinning and 3D active fan, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase air pressure. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.

UNIQUE BLADE FAN

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.

3D ACTIVE FAN

The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

FRIENDLY PCB DESIGN

Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specification

Graphics Processing : GeForce RTX™ 3050

Core Clock : 1477 MHz (Reference Card: 1470 MHz)

CUDA® Cores : 2304

Memory Clock : 14000 MHz

Memory Size : 6 GB

Memory Type : GDDR6

Memory Bus : 96 bit

Card Bus : PCI-E 4.0

Digital max resolution : 7680x4320

Multi-view : 4

Card size : L=191 W=111 H=36 mm

PCB Form : ATX

DirectX : 12 Ultimate

OpenGL : 4.6

Recommended PSU : 300W

Power Connectors : N/A

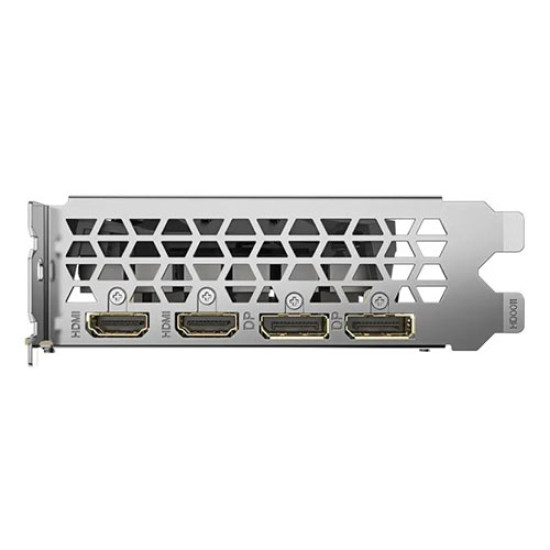

Output : DP1.4a*2HDMI 2.1*2

Accessories : Quick guide
