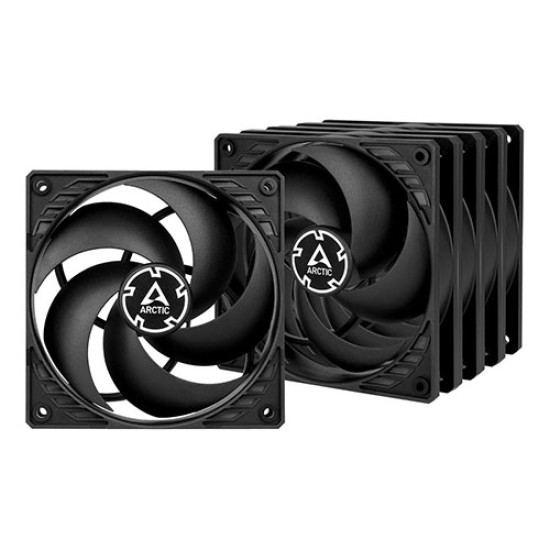

Arctic P12 120 mm Fan 5 Pieces (ACFAN00135A)

Optimised for Static Pressure

During the development of the new P12, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 is particularly suitable for use on heatsinks and radiators.

Strong Cooling Performance

Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind.

For additional information about the P-fans, we recommend our

High-Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Two Way Installation

Push warm air out of the case

Pull cool air into your case

Specification

Fan Speed: : 1800 rpm

Airflow : 56.3 cfm | 95.7 m³/h

Static Pressure : 2.20 mmH2O

Noise Level : 0.3 Sone

Operating Ambient Temperature : 0—40 °C

Fan Frame : Standard

Control Type : Fixed Speed

Connector : 3-Pin Connector

Fan Bearing : Fluid Dynamic Bearing

Typical Voltage : 12 V DC

Starting Voltage : 2.8 V

Current | Voltage : 0.16 A | 12 V DC

Cable Length : 400 mm

Length : 120 mm

Width : 120 mm

Height : 25 mm

Weight : 139 g
