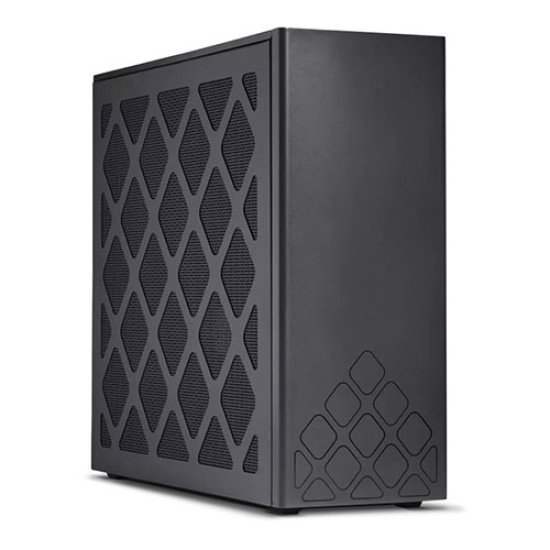

Asus NUC 13 EXTREME i7 Mini PC (RNUC13RNGI70000)

NUC 13 Extreme pairs off-the-charts performance and never-before-seen features with an updated thermal design.

NUC 13 Extreme supports a triple-slot 12” graphics card, up to 64GB of dual-channel DDR5 memory supporting speeds of 4800+ MHz1 2 3, and Intel® Killer™ Wi-Fi 6E.

With a new, modern design, airflow is optimized to minimize noise and throttling for hours of intense gameplay.

Includes an 80+ Gold 750W 12VO power supply, AQC113 10GbE and i226-V 2.5GbE Ethernet ports, two Thunderbolt™ 4 ports, eight USB 3.2 Type-A ports, and a front USB 3.2 Gen2x2 Type-C port.

Innovation in PC gaming

NUC 13 Extreme features all-new, unlocked 13th Gen Intel® Core™ i9/i7/i5 processors to deliver the extreme performance that hardcore gamers want.

A whole new chassis design optimizes airflow to maintain cooler temperatures with slower fan speeds that minimize throttling, noise, and overheating.

Our new slot-powered, cable-less design takes all the difficulty out of installation and system integration.

Use cases

Pure power that gives you the upper hand when entering the gaming arena.

Go beyond gaming—stream, binge, and multitask with the latest connectivity and support for 12” Graphics cards.

Overclocked processors and latest-generation I/O deliver incredible FPS and low latency.

Specification

Product Collection : NUC Kit with 13th Generation Intel® Core™ Processors

Processor Included : Intel® Core™ i7-13700K Processor (30M Cache | up to 5.40 GHz)

Discrete Graphics : Supports PCIe x16 Gen5 3-slot wide GPU

Board Number : NUC13SBBi7

Board Chipset : Intel® Z690 Chipset

Supported Operating Systems : Windows 11 | 64-bit

CPU Total Cores : 16 Mode pre-installed.

CPU Total Threads : 24

Max Turbo Frequency : 5.40 GHz

Max Memory Size (dependent on memory type) : 64 GB

# of Memory Slots : 2

Memory Types : DDR5 SODIMM

Max # of Memory Channels : 2

ECC Memory Supported  : No

# of Internal Drives Supported : 5

M.2 Card Slot (storage) : 2x via PCH + 1x via CPU (NVMe)

Graphics Output : 2x Thunderbolt 4 | HDMI 2.1 TMDS compatible (4K60)

# of Displays Supported* : 3

# of Thunderbolt™ Ports : 2x Thunderbolt™ 4

# of USB Ports : 11

USB Configuration : Rear: 6x USB 3.2g2 | 2x TB4 (USB4); Front: 2x USB 3.2g1 Type-A | USB 3.2g2x2 Type-C

USB Revision : 3.2 Gen1 | Gen2 | Gen2x2 | USB4

Total # of SATA Ports :4

Max # of SATA 6.0 Gb/s Ports : 4

RAID Configuration : RAID-0 or RAID-1

Audio (back channel + front channel) : (R) 7.1 digital | 3x 3.5mm + (F) 3.5mm

Integrated LAN : 10GbE (AQC113) + Intel® i226-V

Wireless Included : Intel® Killer™ Wi-Fi 6E AX1690 (i/s)

Bluetooth Version : 5.3

M.2 Card Slot (wireless) : Killer™ Wi-Fi 6E AX1690i

Additional Headers : FRONT_PANEL

Expansion Options PCIE Revision : Gen5 | Gen4

Thermal Design Power :125W

Chassis Dimensions : 337 x 318 x 129mm

Board Form Factor : PCIe

Intel® Rapid Storage Technology : Yes

Intel® Optane™ Memory Supported* : Yes

Intel® Virtualization Technology for Directed I/O (VT-d)* : Yes

Intel® Virtualization Technology (VT-x)* : Yes

Intel® Platform Trust Technology (Intel® PTT) : Yes

Intel® AES New Instructions : Yes
