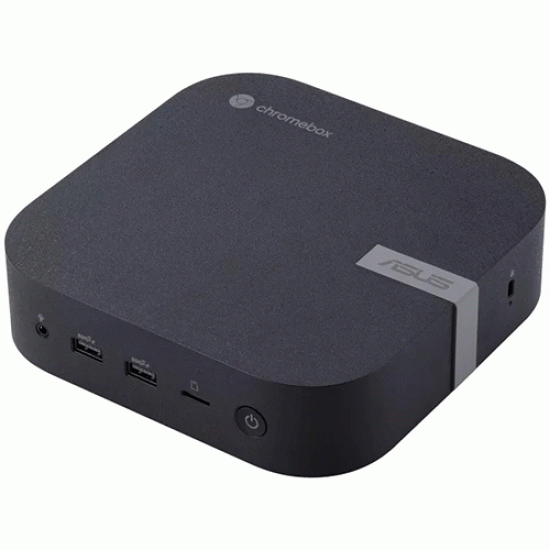

Asus Chromebox 5 Mini PC 90MS02N1-M002C0 (Intel Celeron 7305)

Ready for Any Task

ASUS Chromebox 5 offers outstanding performance and instantaneous response for incredible productivity. It's powered by up to a 12th Gen Intel® Core™ i7 processor that delivers blistering processing speeds to cater to the most demanding tasks. And with up to 32 GB DDR4 memory, ASUS Chromebox 5 enables easy multitasking without slowdowns.

Commitment to Sustainability

ASUS continues to make strides in its sustainability efforts. ASUS Chromebox 5 is made of post-consumer recycled plastics (PCR) with a durable scratch-resistant textured surface to ensure device longevity. In addition, ChromeOS devices such as ASUS Chromebox 5 are designed to consume up to 46% less energy than comparable competitor devices. As an added bonus, each ASUS Chromebox 5 is packed in FSC-certified packaging.

Concealed Wireless Charger

For added convenience, ASUS Chromebox 5 has a built-in WPC-certified Qi wireless charger that provides up to 15-watt output. Plus, a Foreign Object Detection (FOD) feature ensures the charger only works when a compatible device is detected, preventing overheating or damage to a non-compatible device.

Quad-display with True 4K UHD

ASUS Chromebox 5 is able to support up to four 4K displays, allowing users to extend their workspace for improved productivity

Lightning-fast Thunderbolt™ 4

Thunderbolt™ 4 connectivity offers users unrivaled versatility with ultrafast speeds. It supports USB-C® Power Delivery and provides data transfer speeds of up to 40 Gbps when connected to high-performance peripherals. It can be used in tandem with the included two HDMI ports and DisplayPort to support up to four displays

Faster, More Stable Connections

ASUS Chromebox 5 offers both 2.5 Gb Ethernet and dual-band WiFi 6E (802.11ax), with the latter featuring a new 6 GHz band for strong, stable signals and superfast speeds to load online content in the blink of an eye.

Enterprise-grade Protection

To protect vital business and personal data, ASUS Chromebox 5 offers comprehensive business-grade security — ranging from integrated hardware and firmware to software and physical protection

24/7 Reliability

ASUS Chromebox 5 is designed for modern office and business use. Geared with effortless IT-management tool to reduce maintenance cost and improve cost effectiveness.

Enjoy The Best of Google

With a rich selection of Android™* apps available on Google Play*, you can easily find great apps for productivity, communication, entertainment and more for getting the most out of your ASUS Chromebox 5.

Specification

OS ; ChromeOS, Chrome Enterprise

CPU ; Intel® Celeron® processor 7305 (TDP 15 W)

Chipset : Integrated

Graphics : Intel® UHD

Memory : 1 x SO-DIMM DDR4 3200 memory 4-16 GB

Storage ; 1 x M.2 2280 PCIe® 4.0 x4 NVMe® SSD (128 /256 /512 GB)

Wireless : Intel® WiFi 6E AX211, 2x2, and Bluetooth® 5

(BT version depends on OS support)

LAN : Realtek RTL8125BG 2.5 Gb Ethernet, 10/100/1000/2500 Mbps

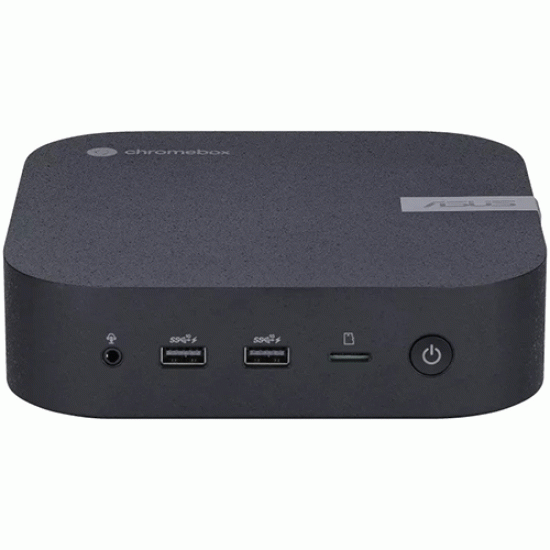

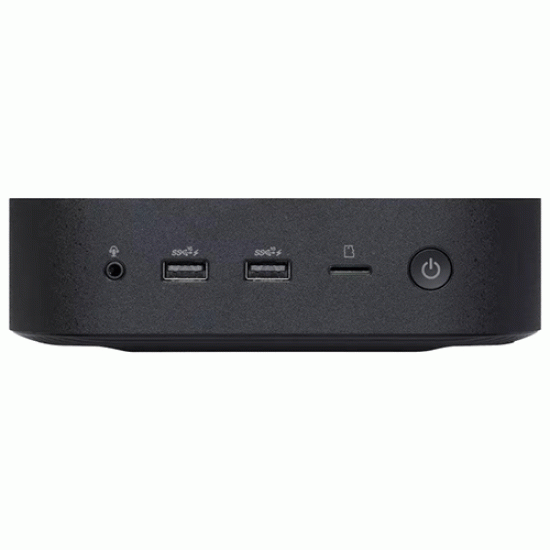

Front I/O

2 x USB 3.2 Gen2 Type‑A (supports BC 1.2)

1 x Audio jack (Mic/Headphone Jack)

1 x Micro SD card slot

Side I/O

1 x Kensington lock

1 x Recovery button

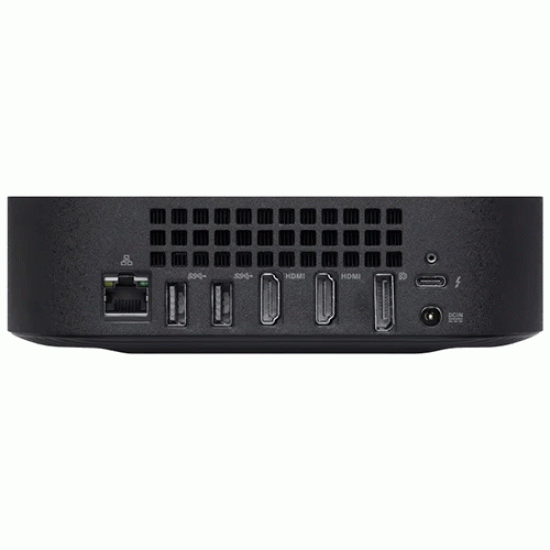

Rear I/O

2 x USB 3.2 Gen1 Type-A

1 x Thunderbolt™ 4 (supports DisplayPort™ 1.4)

2 x HDMI®

1 x DisplayPort™ 1.4

1 x RJ45 2.5 Gb LAN

1 x DC-in

Wireless charger : Qi wireless charger, max. 15 W (Optional)

Power supply : 65 W power adapter (19 V DC, 3.42 A)

Dimensions : 166.5 x 165.8 x 45.9 mm (1.27 L)

Weight : 0.8 kg

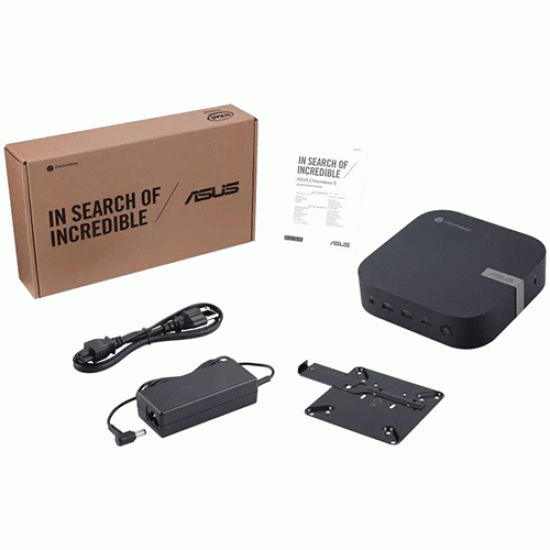

Accessories

AC adapter and power cord

Warranty card

Quick Start guide

VESA mount

Keyboard and mouse (optional)
