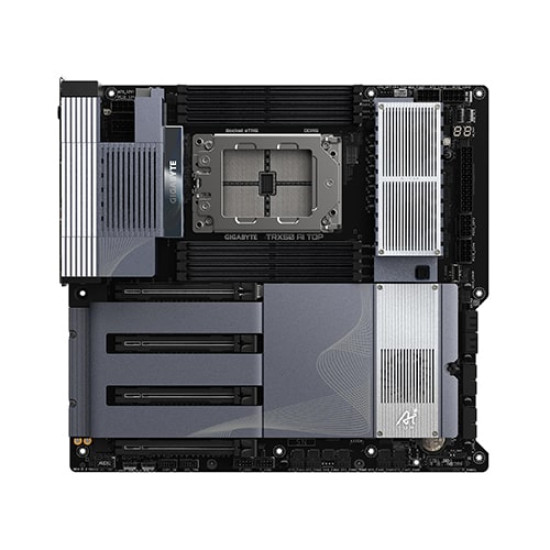

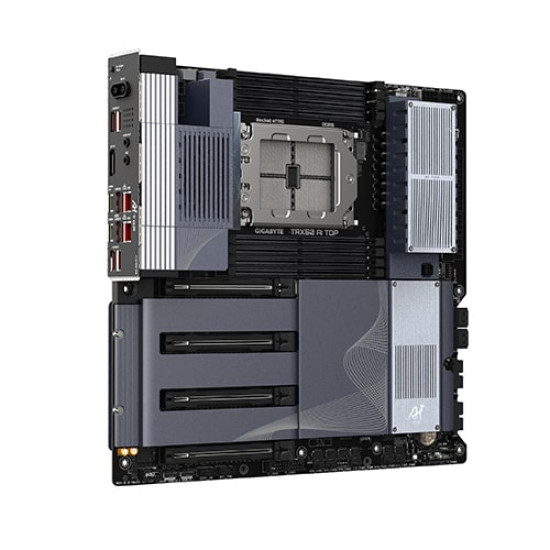

Gigabyte TRX50 AI TOP DDR5 AMD Motherboard

Key Features

• Training your own AI on your desk
• Socket sTR5: Supports AMD Ryzen™ Threadripper™ PRO 7000 series/ Ryzen™ Threadripper™ 7000 series Processors​
• Breakthrough Performance：16+8+4 Phases Digital VRM Solution
• 8 Channel DDR5：8*SMD ECC R-DIMMs with Maxmium 2TB capacity
• Reinforced Overall Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard
• Ultimate Scalibility: 4*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0 x4 M.2 slots
• Next-gen Connectivity: Dual USB4® Type-C ports
• Blazing Fast Networks: Dual 10GbE LAN, Wi-Fi 7 with Ultra-high gain directional antenna & WIFI EZ-Plug
• PCIe UD Slot X：PCIe 5.0 x16 slot with 10X strength for graphics card
• EZ-Latch Click：M.2 heatsinks with screwless design
• EZ-Latch Plus：M.2 slots with quick release design
• Hi-Fi Audio with DTS:X® Ultra：ALC4080+ALC897 CODEC
• UC BIOS：User-Centred intuitive UX with Quick Access function

Maximum Capacity

TRX50 AI TOP supports 8-channel ECC R-DIMMs to provide the highest bandwidth and a maximum capacity of up to 2TB for computation throughput, offering ample temporary storage space for model training or machine learning.

AI TOP Utility

GIGABYTE's exclusive utility provides powerful AI computing assistance features. Its visually appealing interface allows you to easily track LLM finetune progress and hardware status, and quickly adjust related fine-tuning settings, significantly improving work efficiency.

14-Layer Server grade PCB

Enables optimized signal integrity and EMI shielding with enhanced reliability for high-performance computing.

Very-low-loss PCB

Elevate signal integrity and stability in high-frequency circuits with our pioneering technology, setting a new standard for high-speed electronic design.

Power in number

All AORUS series gaming motherboards are equipped with an all-digital power design, which delivers the best stability under heavy workloads.

Advanced Thermal

With enlarged full metal thermal design, TRX50 AI TOP motherboard birngs you exceptional performance while keep the system cool and solid.

Get everythingUD

GIGABYTE Ultra Durable™ Technology represents our highest standards to provide a platform for gamers that is not only powerful but also durable and reliable. TRX50 AERO D motherboard is built to last longer and stand stronger.

Elevating Performance Together

TRX50 AI TOP signifies our dedication to BIOS optimization. Through our community partnership, we're making next-gen performance more user-friendly.

Specification

Chipset : AMD TRX50

LAN : 2 x Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/ 1 Gbps/100 Mbps)

I/O Controller : iTE® I/O Controller Chip

Form Factor : E-ATX Form Factor; 30.5cm x 33.0cm

CPU

AMD Socket sTR5, support for:

AMD Ryzen™ Threadripper™ PRO 7000 processors/

AMD Ryzen™ Threadripper™ 7000 Series processors

(Go to GIGABYTE's website for the latest CPU support list.)

Memory

Support for DDR5 ECC Registered memory modules (RDIMM/RDIMM-3DS)

8 x DDR5 DIMM sockets supporting up to 2 TB of system memory

- AMD Ryzen™ Threadripper™ PRO 7000 Processors support 8-Channel memory architecture

- AMD Ryzen™ Threadripper™ 7000 Processors support Quad Channel memory architecture

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Audio

Realtek® ALC4080 CODEC (rear panel audio)

- Support for DTS:X® Ultra

- High Definition Audio

- 2-channel

Realtek® ALC897 CODEC (front panel audio)

Wireless Communication module

Qualcomm® Wi-Fi 7 QCNCM865

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11be 320MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

Expansion Slots

3 x PCI Express x16 slots (PCIEX16_1/PCIEX16_2/PCIEX16_3), integrated in the CPU:

- AMD Ryzen™ Threadripper™ PRO 7000 Processors support PCIe 5.0 x16 mode

- AMD Ryzen™ Threadripper™ 7000 Processors support PCIe 5.0 x16 mode

(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16_1 slot.)

1 x PCI Express x16 slot (PCIEX16_4), integrated in the CPU:

- AMD Ryzen™ Threadripper™ PRO 7000 Processors support PCIe 5.0 x16 mode

- AMD Ryzen™ Threadripper™ 7000 Processors support PCIe 4.0 x16 mode

Storage Interface

3 x M.2 connectors (M2C_CPU/M2B_CPU/M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:

- AMD Ryzen™ Threadripper™ PRO 7000 processors support PCIe 5.0 x4/x2 SSD

- AMD Ryzen™ Threadripper™ 7000 Processors support PCIe 4.0 x4/x2 SSD

1 x M.2 connector (M2D_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:

- AMD Ryzen™ Threadripper™ PRO 7000 processors support PCIe 5.0 x4/x2 SSD

* The M2D_CPU connector will become unavailable when using the AMD Ryzen™ Threadripper™ 7000 Processors.

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, support for SATA storage devices

USB

CPU:

- 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+Intel® USB4® controller:

- 2 x USB4® USB Type-C® ports on the back panel

Chipset:

- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header

- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 1 Hub:

- 4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

4 x PCIe power connectors

1 x CPU fan header

1 x CPU fan/water cooling pump header

2 x system fan headers

4 x system fan/water cooling pump headers

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

4 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

2 x USB 3.2 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x noise detection header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)

1 x power button

1 x Clear CMOS button

1 x reset button

1 x reset jumper

2 x temperature sensor headers

1 x Clear CMOS jumper

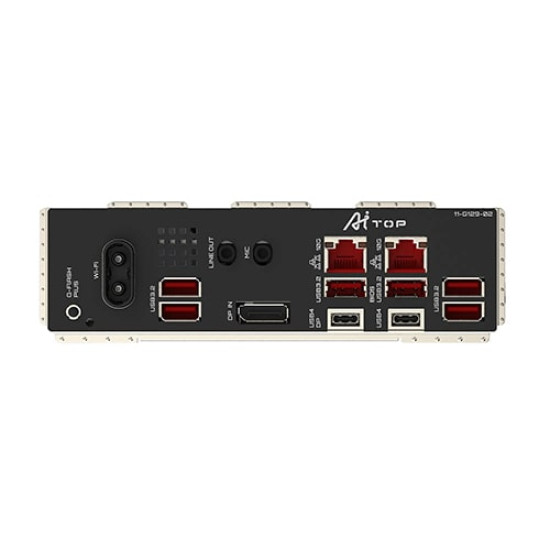

Back Panel Connectors

1 x Q-Flash Plus button

2 x SMA antenna connectors (2T2R)

1 x DisplayPort In port

1 x USB4® USB Type-C® port (DisplayPort)

1 x USB4® USB Type-C® port

6 x USB 3.2 Gen 2 Type-A ports (red)

2 x RJ-45 port

2 x audio jacks

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

Noise detection

BIOS

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

Bundled Software

Norton® Internet Security (OEM version)

LAN bandwidth management software

Operating System

Support for Windows 11 64-bit

Support for Ubuntu 24.04 LTS
