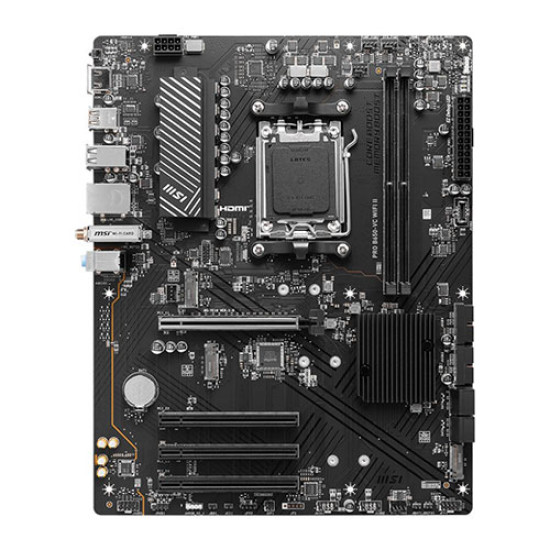

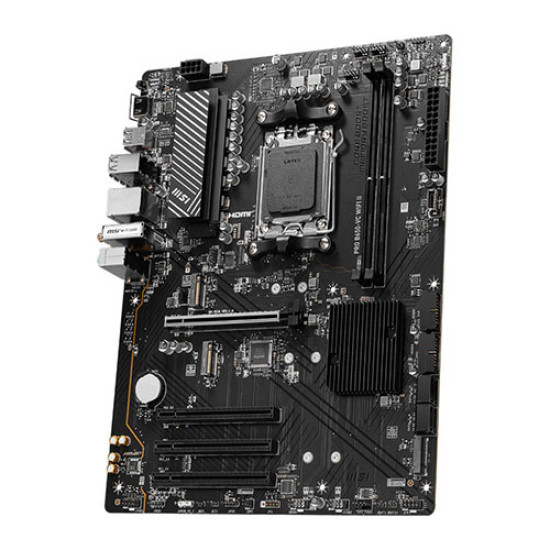

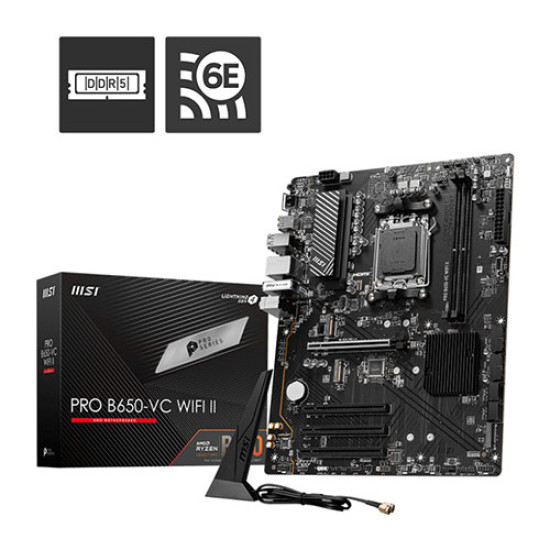

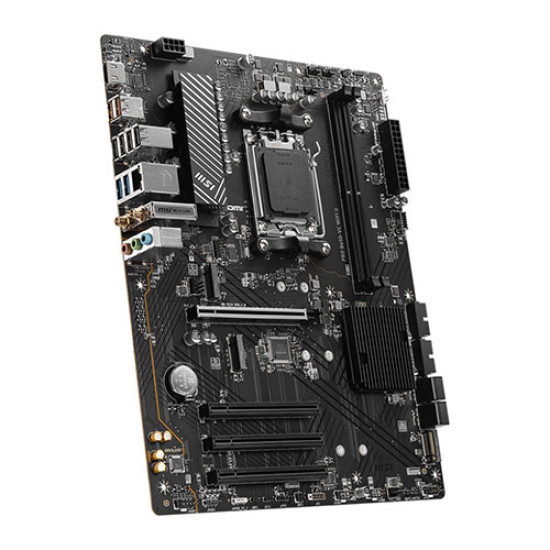

MSI PRO B650-VC WIFI II DDR5 AMD Motherboard

MSI PRO B650-VC WIFI II DDR5 AMD Motherboard

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

CORE BOOST

Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

solid pin design

The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads.

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO B650-VC WIFI is ready to deliver the world class memory performance.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

Features

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)

Core Boost : With premium layout and digital power design to support more cores and provide better performance

Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility

Premium Thermal Solution: the PCH heatsink and Frozr AI Cooling are built for high performance system and non-stop work

High Quality PCB: 6-layer PCB made by 2oz thickened copper

Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2

1G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection

AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specification

Chipset

AMD B650

CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Socket AM5

Memory

2x DDR5 UDIMM, Maximum Memory Capacity 128GB

Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

1DPC 1R Max speed up to 7800+ MHz

1DPC 2R Max speed up to 6400+ MHz

Onboard Graphics

1x HDMI™

Support HDMITM 2.1, maximum resolution of 4K 60Hz*

*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

4x PCI-E x16 slot

• Supports x16/x1/x1/x1 (For Ryzen™ 9000/ 7000 Series processors)

• Supports x8/x1/x1/x1 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

• Supports x4/x1/x1/x1 (For Ryzen™ 8500/ 8300 Series processors)

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)

PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

Audio

Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Storage

3x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices

4x SATA 6G

The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

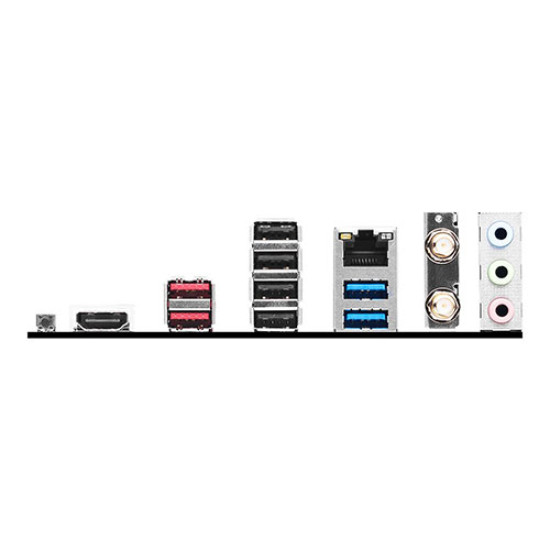

USB

4x USB 2.0 (Rear)

4x USB 2.0 (Front)

2x USB 5Gbps Type A (Rear)

4x USB 5Gbps Type A (Front)

1x USB 5Gbps Type C (Front)

2x USB 10Gbps Type A (Rear)

LAN

Realtek® 8111H Gigabit LAN

Internal IO

1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

3x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

2x Addressable V2 RGB LED connector (JARGB_V2)

2x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

8x USB 2.0 ports

6x USB 5Gbps Type A ports

1x USB 5Gbps Type C ports

2x USB 10Gbps Type A ports

WIRELESS LAN & BLUETOOTH

AMD Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX

Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands

Supports 802.11 a/ b/ g/ n/ ac/ ax

LED FEATURE

4x EZ Debug LED

OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit

PCB Info

ATX

243.84mmx304.8mm
