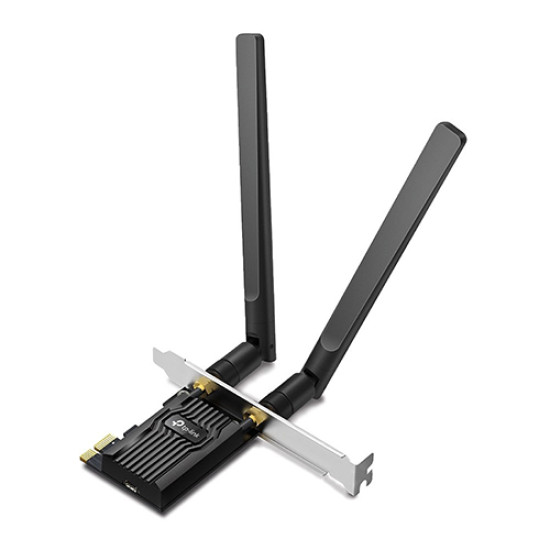

TP Link Archer TX20E AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

Key Features

• Unrivalled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
• Wider Signal Coverage— Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
• Bluetooth 5.2—The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2
• Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
• Backward Compatibility – Full support for 802.11ax/ac/a/b/g/n standards

Wi-Fi 6 Upgrades Everything

The latest Wi-Fi technology makes annoying lag, endless loading, and dead spots a thing of the past. Enjoy the future of faster network loads and more connections.

More Devices, Less Congestion

OFDMA creates separate channel segments for devices to communicate while MU-MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag-free wireless connectivity at the same time all of your other devices are communicating.

High-Gain Antennas for Broader Coverage

Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.

Bluetooth 5.2 Compatible

The latest Bluetooth 5.2 Technology, achieves speeds 2× faster and coverage 4× broader than Bluetooth 4.2, to perfectly coordinate with your game controllers, headphones, keyboards, and other Bluetooth devices.

Cutting-Edge Security

WPA3, the latest network security standard, provides more secure and individualized encryption in personal password safety, protects your network from wireless hacking and ensure your wireless connection is completely secure while surfing the web and shopping online.

Easy Setup

The utility on the provided CD makes software installation remarkably simple

Operating System

Supports Windows 11/10 (64-bit) only

Standard and

Low-Profile Brackets

Both a standard and low-profile bracket, for mini tower computer cases, are provided

Specification

HARDWARE FEATURES

Dimensions : 4.76 × 3.09 × 0.82 in,(120.8 × 78.5 × 20.9 mm)

Antenna Type : Two High-Gain Dual Band Antennas

Chipset : Realtek Wi-Fi 6 Chipset

WLAN Modes : Infrastructure mode

Wireless Security : Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x

Modulation Technology : DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

System Requirements : Windows 11/10(64-bit) only

WIRELESS FEATURES

Wireless Standards

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/g/b 2.4 GHz

Bluetooth 5.2

WLAN Signal Rate

5 GHz

11ax: Up to 1201 Mbps(dynamic)

11ac: Up to 867 Mbps(dynamic)

11n: Up to 300 Mbps(dynamic)

11a: Up to 54 Mbps(dynamic)

2.4 GHz

11ax: Up to 574 Mbps(dynamic)

11n: Up to 300 Mbps(dynamic)

11g: Up to 54 Mbps(dynamic)

11b: Up to 11 Mbps(dynamic)

WLAN Reception Sensitivity

5 GHz :

11ax HE80: -57.0dBm

11ax HE40: -60.0dBm

11ax HE20: -63.0dBm

11ac VHT80: -59.5dBm

11ac VHT40: -62.5dBm

11ac VHT20: -67.5dBm

11n HT40: -69.5dBm

11n HT20: -72.5dBm

11a 54Mbps: -74.0dBm

11a 6Mbps: -94.5dBm

2.4GHz :

11ax HE40: -60.0dBm

11ax HE20: -63.0dBm

11n HT40: -69.5dBm

11n HT20: -72.5dBm

11g 54Mbps: -74.0dBm

11b 11Mbps: -88.0dBm

WLAN Transmit Power

5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)

2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP)

OTHERS

Certification : CE, FCC, RoHS

Package Contents

Archer TX20E

Two High-Gain Dual Band Antennas

Low-Profile Bracket

Bluetooth Header Cable

Quick Installation Guide

Resource CD

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
