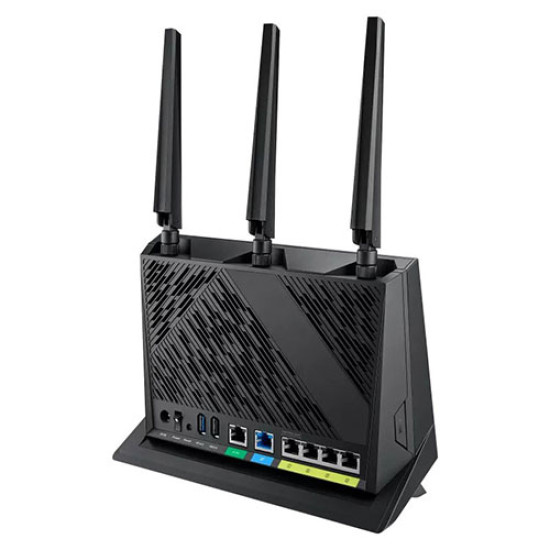

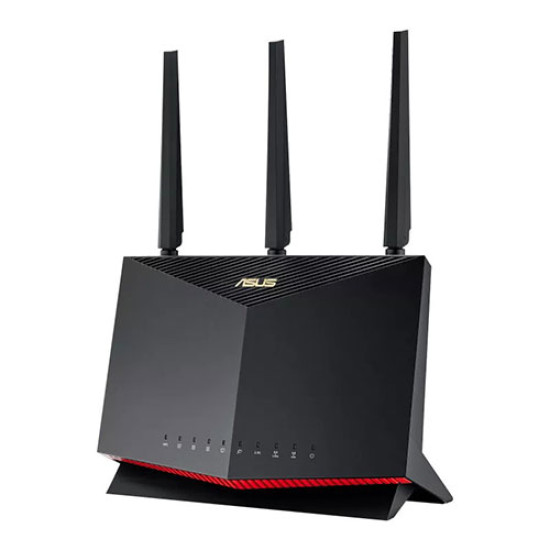

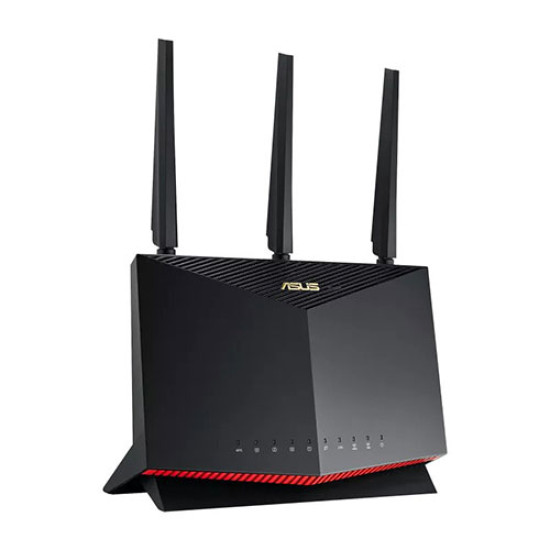

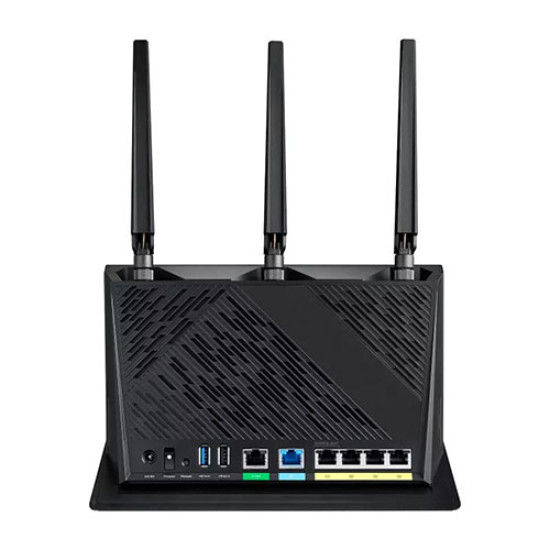

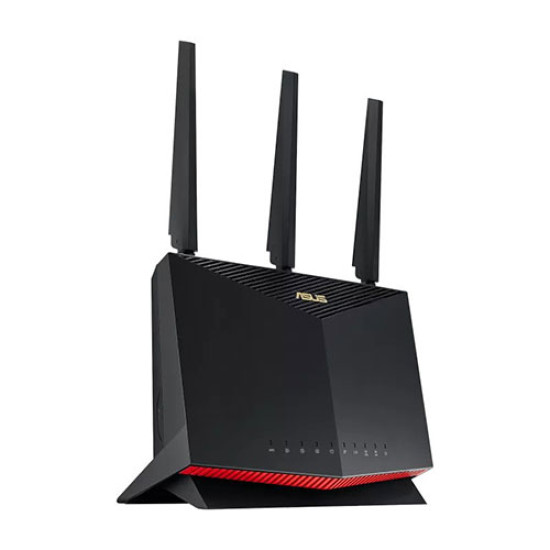

Asus AX5700 Dual Band WiFi 6 Gaming Router (RT-AX86U-PRO)

Your Winning Choice

for Mobile Gaming!

Enjoy the fastest, smoothest WiFi gaming connections ever with the ASUS RT-AX86U Pro dual-band WiFi 6 router. It delivers ultrafast WiFi speeds up to 5700 Mbps**, and is packed with advanced technology, including Mobile Game Mode for a lag-free, low-latency mobile gaming experience.

Ultrapowerful WiFi 6

Energy efficient Longer range

RT-AX86U Pro brings you all the benefits of WiFi 6 (802.11ax), and works perfectly with all your existing WiFi devices! *

Beyond Performance

RT-AX86U Pro is powered by a 2.0 GHz quad-core 64-bit CPU, giving it the performance to handle even the most demanding gaming network. It delivers maximum network throughput by 18%* for lightning-fast, accelerating data transfers and optimizing your gaming experience.

Lightning-Fast

2 Gbps Internet

RT-AX86U Pro is designed to break down all the barriers that can slow down your gaming. It supports up to a 2 Gbps internet connection, so you can unlock the full potential of high-speed networking for both wired and WiFi connections.

Remove Network Bottlenecks

Adaptive QoS (Quality of Service) lets you keep your network running smoothly by prioritizing network traffic. You can prioritize applications such as streaming video or web surfing, as well as gaming. It's the perfect ally for delivering low-latency WiFi anywhere in your home.

Whole-Home Gaming

Does your router leave you with WiFi dead spots? RT-AX86U Pro supports ASUS AiMesh, a unique mesh-networking technology that creates a whole-home network using multiple ASUS routers. With easy central control and seamless roaming, even non-experts can set it up with any AiMesh-capable routers you own. Say goodbye to WiFi dead zones!

A Safer Browsing Experience

The internet can contain inappropriate content, intrusive ads or other dangers and safety risks. ASUS Safe Browsing helps block undesirable content in one tap -- no extra apps required. Its lightweight DNS-based filtering* won’t affect router performance. It can even filter explicit content from search engine results to protect your kids online.

*By using Safe Browsing, you acknowledge and agree that the standard for blocked and filtered content is established by a third-party DNS provider.

Complete Security for Your Home Network

Alongside the latest WPA3 security protocol, the ASUS RT-AX86U Pro also features AiProtection Pro powered by Trend Micro™, with automatic, regularly updated security signatures to protect your devices and personal data from internet threats.

Specification

Model : RT-AX86U Pro

Network Standard

IPv6

IPv4

WiFi 6 (802.11ax)

WiFi 5 (802.11ac)

WiFi 4 (802.11n)

IEEE 802.11g

IEEE 802.11b

IEEE 802.11a

Product Segment

AX5700 ultimate AX performance : 861+4804 Mbps

WiFi Data Rate

WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps

WiFi 6 (802.11ax) (2.4GHz) : up to 861 Mbps

WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps

WiFi 4 (802.11n) (1024QAM) : up to 750 Mbps

WiFi 4 (802.11n) : up to 450 Mbps

802.11g : up to 54 Mbps

802.11b : up to 11 Mbps

802.11a : up to 54 Mbps

Antenna

External antenna x 3

Internal PCB antenna x 1

Transmit / Receive

5GHz 4x4

2.4GHz 3x3

Processor

2.0GHz quad-core processor

Memory

256 MB Flash and 1 GB RAM

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal

1024-QAM high data rate

20/40/80/160 MHz bandwidth

Operating Frequency

2.4 GHz / 5 GHz

Operating Mode

Wireless router mode,Access point mode,Media bridge mode,Repeater mode,AiMesh node mode

I/O Ports

RJ45 for 10/100/1000 BaseT for WAN x 1

RJ45 for 10/100/1000 BaseT for LAN x 4

Five (5) 10/100/1000 Mbps Gigabit Ethernet ports + one (1)

2.5G/1Gbps multi-Gig port (configurable)

-- LAN: 4xGbE (2x port aggregation LAN)

-- WAN: 1 GbE

-- WAN/LAN: 2.5G/1Gbps multi-Gig port (configurable)

-- Multi-Gig: Ability to aggregate two Gigabit LAN ports and two Gigabit WAN ports (configurable) concurrently.

USB 3.2 Gen1 x1, 2.0 x1

Buttons

WPS Button, Reset Button, Power Switch, LED on/off Button

LED Indicator

Power x 1

2.4GHz x 1

5GHz x 1

2.5G Port x 1

WAN x 1

LAN x 4

WPS x 1

Power Supply

19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current or

12 V with max.3 A current / 19.5 V with max. 2.31 A current

Package Content

RT-AX86U Pro WiFi router

RJ-45 cable

Power adapter

Quick Start Guide

Product Weight (g)

814.5 g

Product Dimensions

242 x 100 x 325 (with antenna)

242 x 100 x 164 (without antenna)

AiMesh

AiMesh, • Primary AiMesh Router, • AiMesh Node

Game

Game Boost / Acceleration, Mobile Game Mode, Gear Accelerator

Parental Control

"Allow you to block access to unwanted websites and apps.", Safe Browsing, Customized Internet Schedule, • Maximum Parental Control Profile : 64, • Maximum Parental Control Content Filter Rule : 64

Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network.", • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3, Guest Network Connection Time Limit, Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS

Security

AiProtection, WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64

AiProtection

• Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS, • Infected Device Prevention and Blocking

VPN

Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion

Traffic Control

Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, -- Maximum Bandwidth Limiter Rule : 32, Traditional QoS, -- Maximum Traditional QoS Rule : 32, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, • Website History

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, Dual WAN, WAN Aggregation, 3G / 4G LTE dongle, Port forwarding, • Maximum Port Forwarding Rule : 64, Port triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS, NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay

LAN

DHCP Server, IGMP Snooping, IPTV, LAN Link Aggregation, Manually Assign IP Address, • Maximum Manually Assign IP Address Rule : 64, Wake on LAN (WOL)

Wireless

MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming

USB application

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4, Safely Remove Disk, AiCloud, Download Master, AiDisk, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder Privileges

Administration

Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
