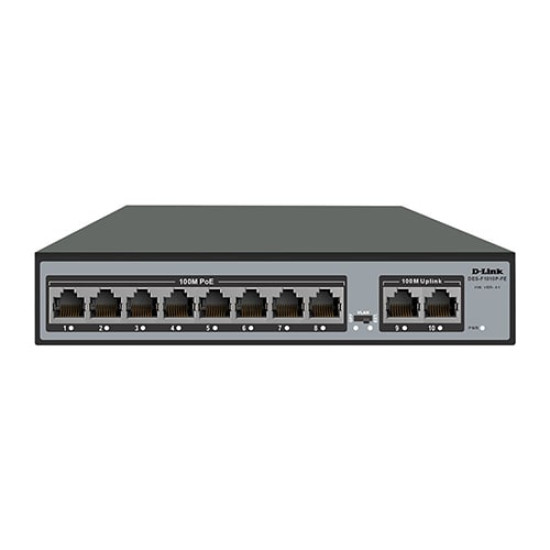

D-Link 8 + 2 100Mbps 250m PoE Switch (DES-F1010P-FE)

Key Features

• Support upward port auto MDI/MDIX.
• Adopted storage forward switch system
• Smart power and minimum consumption guarantee PD requirement.
• With power supply circuit protection function and protection back-end device safety
• Automatically provide the adaptive device
• Fanless design, energy saving and environmental protection.
• 8 10/100 Mbps POE port
• 2 10/100/100 Mbps uplink port
• Support saving power function when port connection

Specification

POE Pin : 1/2(+) 3/6(-);

Power : 120W

Lightning protection : 6KV

Physical specifications : Dimensions (LxWxH): 186mm x 122mm x 33mm

EMC : CE

Transmission Rate : 10/100 Mbps Each port supports MDI / MDIX auto-flip and auto- Network interface:10BASE-T or 100BASE-TX Ethernet RJ-45 port

Network Interface

8 10/100 Mbps PoE RJ45 port (port 1 ~port 8)

2 10/100 Mbps non-PoE RJ45 port (port 9~port 10)

Protocols and Standards

IEEE802.3i 10BASE-T

IEEE 802.3u 100BASE-TX

IEEE 802.3ab 1000BASE-T

ANSI/IEEE 802.3 NWay auto-negotiation

IEEE802.3x Flow Control

IEEE 802.3af/at standard

Performance

Bandwidth: 2 Gbps (no block)

Network delay (100 to 100M bps): maximum 20 μs (using 64byte packet)

Frame filtering and transmission rate

10M: 14,800pps

100M: 148,800pps

LEDs Indicator

Power

LINK/ACT, POE

Environmental norms

Operating Temperature: 0°C~40°C Storage Temperature: -10°C~70°C

Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
