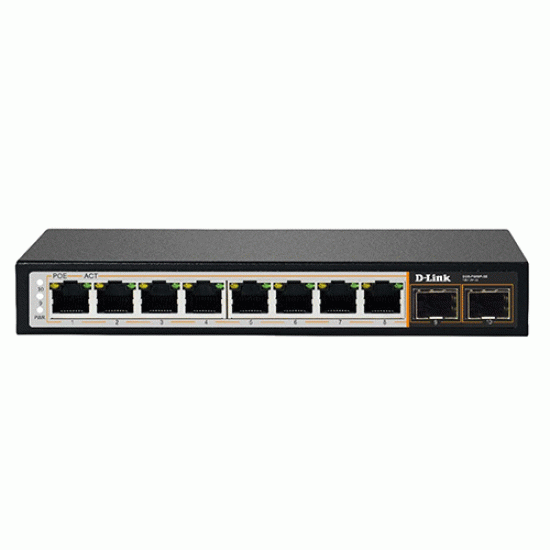

D-Link 8GE POE + 2 SFP Uplink 120W Switch (DGS-F1010P-SE)

D-Link 8GE POE + 2 SFP Uplink 120W Switch

D-Link 8GE PoE+ 2GE Uplink 250m PoE Switch DGS-F1010P-E Supports 10 port 1Gps with 8 PoE port switch that offers 8 10/100/1000 Mbps PoE ports, 2 10/100/1000Mbps. 8 10/100/1000 Mbps gigabit ethernet ports 2 10/100/1000 Mbps uplink port 120watts available PoE Flow control for protection against data loss Maximum distance of 250m Light protection (6kV) Operating Temperature: 0 to 40 deg C (32 to 104 deg F) Long-Distance Transmission with Surge Protection With high distance connectivity, ideal for surveillance solution. Can be used with cat5e or cat6 cable.The DGS-F1010P-E features four 10/100BASE-TX ports that support the IEEE 802.3af/at PoE protocol. With total power budget of 120W. Easy Deployment and PoE Convenience The DGS-F1010P-E is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices. Different Switch working mode The DGS-F1010P-E switch works in 4 operating modes using DIP switch VLAN: Isolating ports each other, restrain network storms effectively and improve network performance EXTEND: Supports 250meters long distance power supply (recommended cat 5 or above) PoE: Automatic detection power of port, power off and restart the device if find PD device crash QoS: Customize application prioritization and increase network sensitivity. For example, video priority, monitoring transmission more smoothly

High transmission distance

With high distance connectivity, ideal for surveillance solution. Can be used with cat5e or cat6 cable

IEEE 802.3af /at Power over Ethernet (PoE)

The DGS-F1010P-SE features eight 10/100BASE-TX ports that support the IEEE 802.3af/at PoE protocol. With total power budget of 120W.

Surge Protection

The DGS-F1010P-SE is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices

Plug & Play Installation

The DGS-F1010P-SE is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment.

Different Switch working mode

The DGS-F1010P-SE switch works in 4 operating modes using DIP switch

Extend – Port 1-8 support up to 250m distance power supply

VLAN - Isolating ports 1-8 from each other can effectively suppress network storms and improve network performance

QoS - Prioritize the identified video data to make video transmission smoother

PoE - Automatic detection power of port, power off and restart

Features

8 10/100/1000 Mbps gigabit ethernet ports

2 10/100/1000 Mbps uplink port

120watts available PoE

Flow control for protection against data loss

Maximum distance of 250m

Light protection 6KV

Operating Temperature: 0 to 40 deg C (32 to 104 deg F)

Specification

Size • Desktop (with Mounting Kit)

Interfaces • 8 10/100/1000 BASE-T ports

2 GE Uplink

Standards • IEEE 802.3u, FastEthernet standards •IEEE802.3af/at, Ethernetpower supplyPOE

standard

IEEE 802.3ab, GigabitEthernet standards • IEEE 802.3az, EEE, Energy efficient Ethernet

standard

IEEE 802.3x, Full-duplex Ethernet data link layers• IEEE 802.3z, Gigabit Ethernet fiber-optic standard

Media Interface Exchange • Auto MDI/MDI-Xadjustment on all ports

Lighting Protection • 6KV

Performance

Switching Fabric • 20 Gbps

Transmission Method • Adopt Store-and-forward

Data Transfer Rates Gigabit Ethernet Ethernet

1000 Mbps 100 Mbps

 Packet Filtering / Forwarding Rates

 10M port maximum 14800pps

100M port maximum 148800pps

1000M port maximum 1488000pps

PoE

PoE Standards IEEE 802.3af IEEE 802.3at

PoE-Capable Ports Port 1 - 8 (Port 1 - 8 PoE can support up to 250m @ 10Mbps with Extend enabled)

Power Budget 120W (30 W max. per PoE port)

LEDs

Power ✓

Link/Activity ✓

Physical

Dimensions 184mm*94mm*27mm

Power 120W

Temperature Operating: 0 to 40 ˚C (32 to 104 ˚F)

Humidity Operating: 0% to 95% RH non-condensing Storage: 0% to 95% RH non-condensing

Certification

EMI/EMC CE
