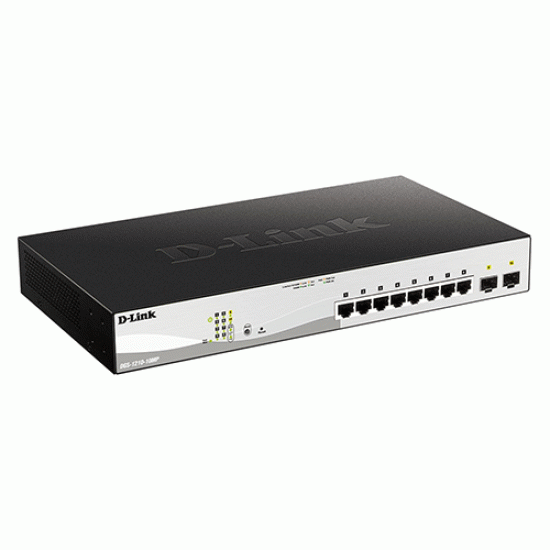

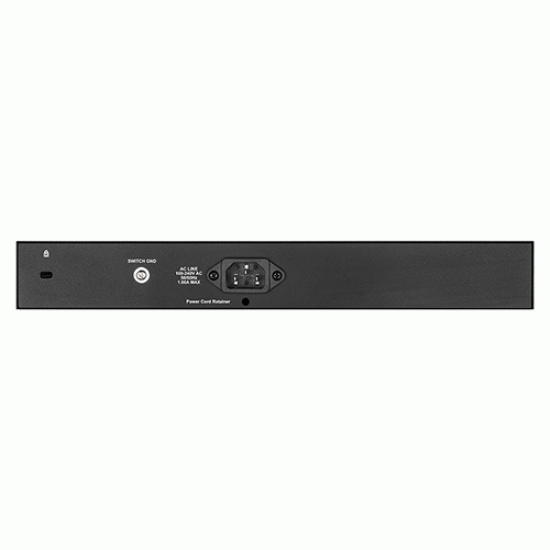

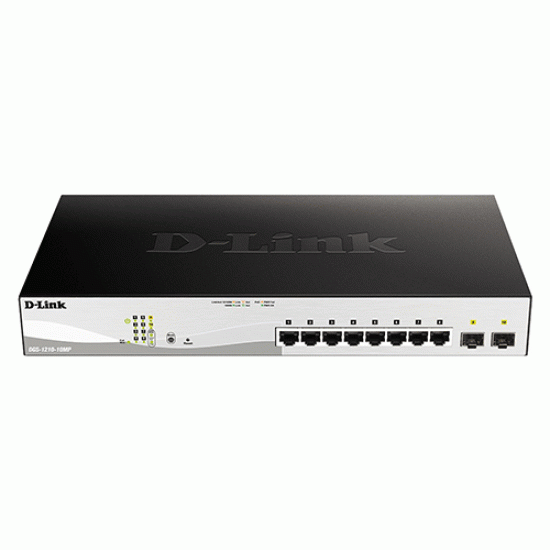

D-Link 10-Port Gigabit Smart Managed PoE Switch (DGS-1210-10MP)

Powerful, yet Cost-Efficient

The D-Link DGS-1210 Series Smart Managed Switches are the latest generation of switches to provide increased Power over Ethernet (PoE) output, a range of physical interface types, multiple management interfaces, and advanced Layer 2 features. With all of these features combined, the DGS-1210 Series provides a cost-efficient and flexible solution for expanding any business network.

The DGS-1210 Series switches support 8, 24, or 48 10/100/1000BASE-T ports. Each switch also supports an additional 2 or 4 Gigabit SFP ports for optical connections using multimode or singlemode SFP transceivers.

PoE Support

Five of the nine models in the DGS-1210 series family support Power-over-Ethernet capabilities, simplifying deployments with IP cameras, VoIP phones, wireless access points, and other powered devices. These models include the DGS-1210-10P, DGS-1210-10MP, DGS-1210-28P, DGS-1210-28MP and DGS-1210-52MP. Using the switch’s management interface, an administrator can control various PoE functions, such as remotely rebooting cameras or access points, from anywhere on the network, including over the Internet.

They also support time-based PoE, which allows administrators to set a time window that determines when each port’s PoE power is turned on and off. All PoE models support the IEEE 802.3af and 802.3at standards, and each PoE power budget varies per model.

Automatic Configuration

The DGS-1210 Series supports Auto Voice VLAN and Surveillance Mode, which allow voice and video traffic to be automatically identified and handled differently to regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.

Surveillance Mode detects compatible ONVIF cameras and places them in a surveillance VLAN, allowing a single switch to be used for voice, video, and data, removing the need for dedicated hardware and reducing maintenance costs. Surveillance Mode also includes its own Web UI, making surveillance features easily accessible and simplifying management of your surveillance network.

Comprehensive Security Features to Protect Your Network

D-Link's innovative Safeguard Engine protects switches against traffic flooding and virus attacks. 802.11X port-based authentication allows the network to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the internal IT network.

Specification

Interfaces : 8 x 10/100/1000BASE-T PoE ports, 2 x SFP ports

Switch Capacity : 20 Gbps

Max. Packet Forwarding Rate : 14.88 Mpps

Dimensions : 330 x 180 x 44 mm

Weight : 1.77 kg

Temperature : Operating: -5 to 50° C (23 to 122° F)

Storage -20 - 70°C

Standby Power Consumption : 4.3 W/100V, 5.2 W/240V

Humidity : Operating: 0% - 95% RH

Storage : 0% - 95% RH

Maximum Heat Dissipation : 519.51 BTU/hr (100 V)

507.23 BTU/hr (240 V)

MTBF : 1,274,005 hours

Power Input : 100 to 240 V AC

CPU Speed ; 500MHz

DRAM Size : DDR3 128MB

Flash Memory Size : 32 MB

Packet Buffer Size : 4.1Mbits

FAN : Fanless

PoE Budget : 130 W

Operating Altitude : 1500 m

Max Power Consumption : 152.3 W/100 V, 148.7 W/240 V (PoE on)

8.5 W/100 V, 9.4 W/240 V (PoE off)

Acoustic : 0 dB
