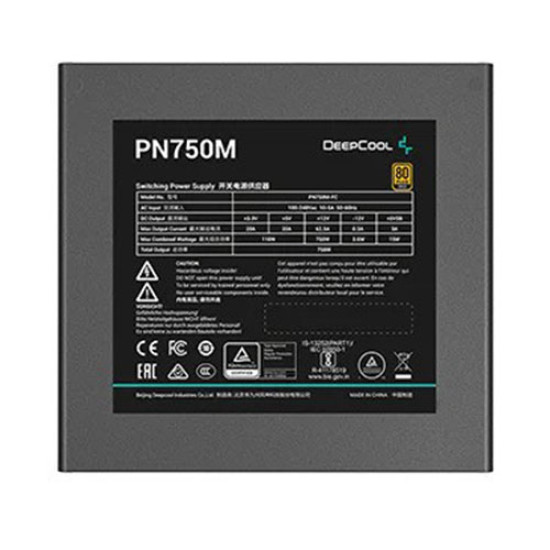

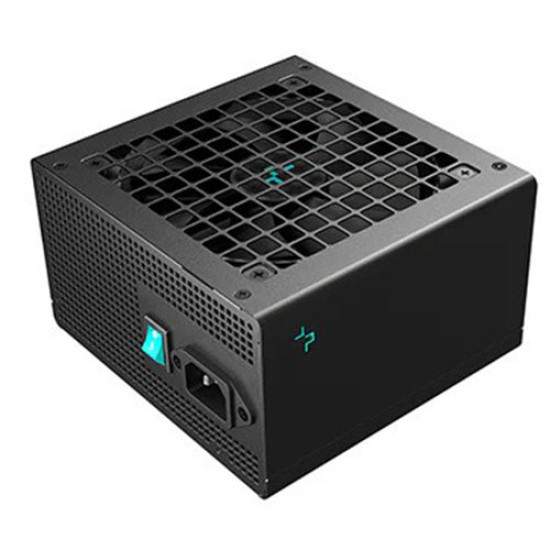

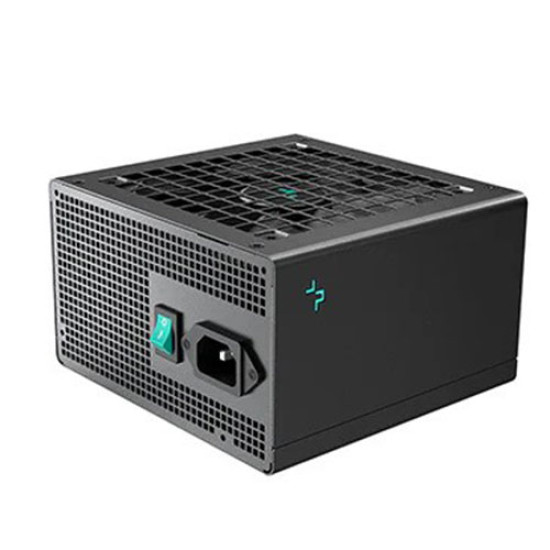

Deepcool PN750M 750W 80 Plus Gold Certified Fully Modular ATX Power Supply (R-PN750M-FC0B-IN)

PN750M

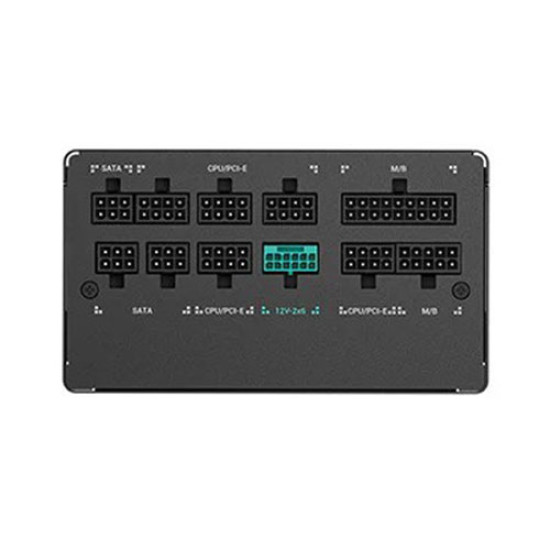

The DeepCool PN750M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6, 5 EPS/PCIe ports, the PN750M provides stable power for a wide range of modern high-power components.

FUTURE PROOF
With the ability to provide twice the total system power for 0.1 ms, random power spikes will never be an issue. The PN750M will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.

POWER YOU CAN TRUST
Through the use of a main Japanese electrolytic capacitor, active PFC, full-bridge SRC LLC, and a DC-to-DC topology, the PN750M can keep the hold-up time to ≥ 16 ms under a high load of 80%.

PCI-E 5.1 POWER\
Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2x6 cable, the PN750M provides up to 450W for modern GPUs

SLEEVED CABLES
The PN750M has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.

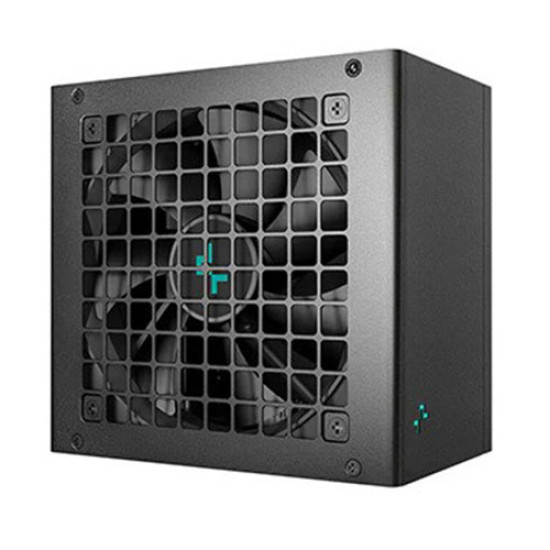

DYNAMIC FDB FAN
The PN750M comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the PSU.

Technical Detail
Brand : Deepcool
Modal : R-PN750M-FC0B-IN

Technical Spec
Type : ATX12V V3.1
Product Dimensions : 150×140×86mm (W x L x H)
Efficiency certification ; 80Plus Gold
Fan Size : 120mm
Fan Bearing : FDB (Fluid Dynamic Bearing)
Topology : Active PFC + Full Bridge SRC LLC + DC to DC
Capacitors : Japanese Bulk Capacitor
Power Good Signal : 100-150ms
Hold Up Time : ≥16ms(80% Load)
Efficiency : ≥90% Under Typical Load(50% Loading)
Protection : OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature : 0 - 40℃
Regulatory : CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH
Erp Regulation : ErP 2014
Environment Protection : WEEE/中国 RoHS/Triman/P65
MTBF : 100,000 Hours
