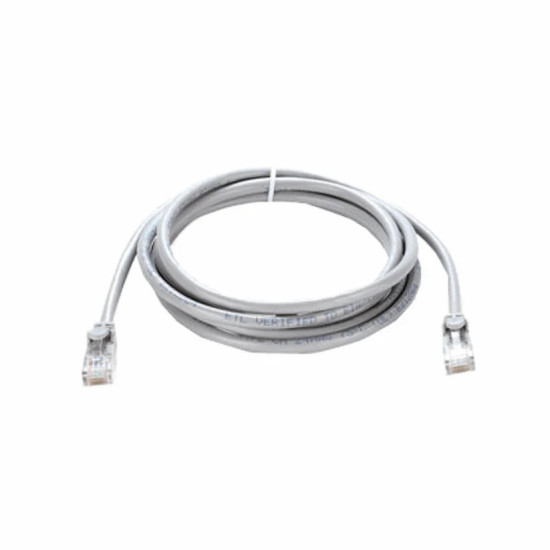

D-Link Cat6 UTP Patch Cord 3 Mtr (NCB-C6UGRYR1-3)

DLink CAT6 Patch Cord-3M Gray (NCB-C6UGRYR1-3)

D-Link solid cables are the best twisted-pair cables in the market for transmitting data

over local area Networks (LANs). These cables exceed performance requirements

specified by the TIA/EIA-568B.2 / TIA/EIA-568C.2 and IEC 60603-7-4 standards.

As streaming video and multimedia over LAN are gaining popularity, users demand faster data

transmission and reduced waiting time. D-Link cables are ideal for simple, cost-effective and

high-speed transmission performance. They support a higher signal-to-noise ratio, providing

better reliability for current applications and higher data rates for future applications.

Specification

• 4 Pairs Unshielded Twisted Pair (UTP) Cable

• Conductor Metal: Bare Copper

• Color Code: Gray

• Conductor: 24 AWG

• Insulation Material: HD-PE

• Jacket Material: PVC UL94V-0

• Heat-resistant: 60oC minimum (Temperature limited)

• Flame property: The purpose of the vertical flame test is to screen out flammable wires. It follows the VW-1 (UL); FT-1 (CSA) standards.
