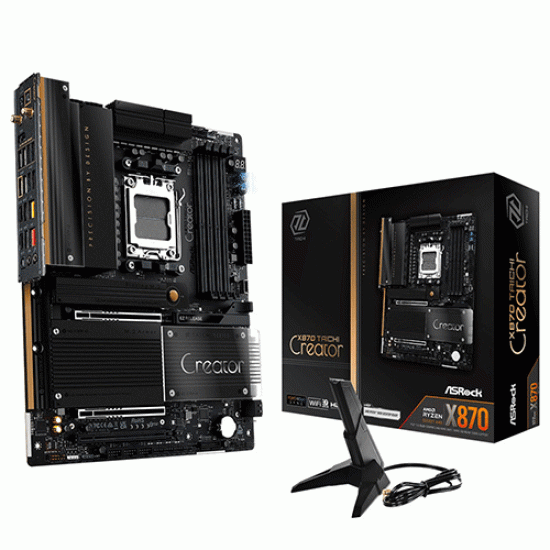

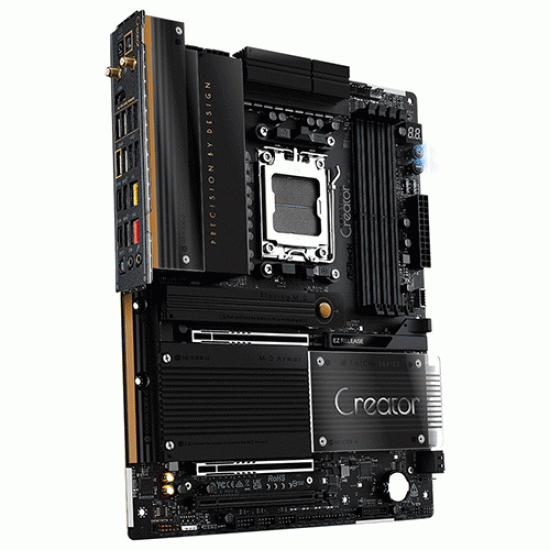

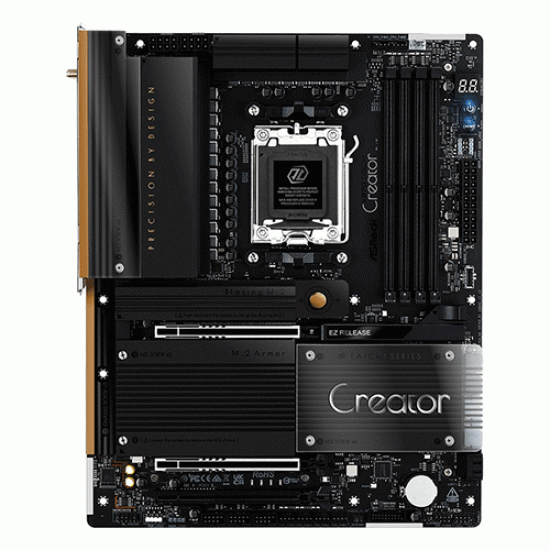

ASRock X870 Taichi Creator AM5 Motherboard

The X870 Taichi Creator features 10GbE and 5GbE LAN, dual USB4 Type-C, dual Gen5 M.2 slots, and dual PCIe 5.0 x16 slots with extra spacing for dual-GPU setups.

Its sharp lines, metallic edges, and mirrored nameplate reflect the signature Taichi Creator style—precision meets elegance.

Built for professional creators, Taichi Creator motherboards deliver precise performance, stable power, and advanced connectivity—empowering your workflow with reliability and style.

Exclusive 20K Cap with 1000uF Capacitance

The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, bringing several benefits:

18+2+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

SPS (Smart Power Stage)

Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

Hi-Density Power Connector

CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.

DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Aluminum Heatsink

The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

Advanced Thermal Design

Equipped with XXL aluminum heatsinks that cover the VRM, PCH, and M.2 areas, providing enhanced heat dissipation for stable operation and optimal performance.

40Gbps USB4 – Built for Creative Workflows

USB4 brings creators the speed and flexibility needed for modern production workflows. With up to 40Gbps transfer bandwidth, it’s perfect for handling large video files, RAW images, and high-resolution assets in seconds.

Thanks to its versatile Type-C interface, USB4 supports data, display, and charging in one cable, streamlining your creative setup whether you're in the studio or on location. It’s also compatible with Thunderbolt™ devices, giving you seamless access to high-speed external SSDs, 4K displays, and pro-grade accessories.

Next-Level Networking with 10GbE & 5GbE Dual LAN

Equipped with both AQUANTIA® 10GbE and 5GbE LAN, this dual Ethernet design delivers uncompromised bandwidth for professional creators and power users.

The 10GbE port, powered by AQUANTIA AQtion™ controller, supports blazing-fast 10-gigabit speeds over standard Cat6 cabling — perfect for high-resolution video editing, NAS access, and real-time backups. Meanwhile, the 5GbE port offers flexible multi-gigabit compatibility (5G/2.5G/1G) for versatile networking setups.

Whether you're syncing terabytes of raw footage, streaming uncompressed media, or collaborating on cloud projects, this dual-LAN solution ensures maximum speed, reliability, and future-ready connectivity.

Front Panel USB 3.2 Gen2x2 Type-C Header

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

Fast Charging Port for Phones, Tablets & Creative Gear

Equipped with USB Power Delivery 3.0, this motherboard delivers up to 36W (12V/3A) of fast charging directly from the front panel — perfect for creators who rely on smartphones, tablets, and portable accessories during shoots or on-location editing.

Whether you're recharging a power-hungry Pad, phone, or powering USB-based creative tools, this fast-charging port keeps your essential gear ready without the need for extra adapters or wall plugs.

POLYCHROME RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

SignalRGB

SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

Customized Thermal Management

The thermistor cable and thermistor header provide an additional source for temperature monitoring, offering customized thermal management solutions.

No disk drive or support CD needed. ASRock pre-installs the LAN driver, so when the system connects to the internet for the first time, an ADI pop-up application will appear.

Users can simply install all drivers and software needed with one click—greatly simplifying the setup process.

Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.

Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

Specification

CPU

- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Chipset

- AMD X870

Memory

- Dual Channel DDR5 Memory Technology

- 4 x DDR5 DIMM Slots

- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)*

- Max. capacity of system memory: 256GB

- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS

- 512Mb AMI UEFI Legal BIOS with GUI support

Graphics

Integrated AMD RDNA™ graphics (Actual support may vary by CPU)

- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz

Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)

- Individual PCB Layers for R/L Audio Channel

- Nahimic Audio

LAN

1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell (Aquantia) AQC113)

- Support Wake-On-LAN

- Support PXE 1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126)

Wireless LAN

- 802.11be 2x2 Wi-Fi 7 Module

- Supports IEEE 802.11a/b/g/n/ac/ax/be

- Supports 2.4GHz/5GHz/6GHz* frequency band

- Supports 160MHz channel bandwidth with 6GHz* frequency band

- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology

- Supports Bluetooth 5.4

- Supports MU-MIMO

Slots

CPU:

- 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes*

Chipset:

- 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*

- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Storage

CPU:

- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*

- 1 x Blazing M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*

Chipset:

- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

- 1 x Ultra M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode*

ASMedia ASM1164:

- 4 x SATA3 6.0 Gb/s Connectors

RAID

- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB

CPU:

- 2 x USB4 Type-C (Rear)

- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_8))

- 4 x USB 3.2 Gen1 Type-A (Rear (USB32_1234))

Chipset:

- 1 x USB 3.2 Gen2x2 Type-C (Front)

- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_7))

- 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_56), 4 Front)

- 8 x USB 2.0 (2 Rear, 6 Front)

Connector

- 1 x Thermistor Cable Header

- 1 x Power LED and Speaker Header

- 1 x RGB LED Header*

- 3 x Addressable LED Headers**

- 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***

- 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***

- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***

- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)

- 3 x USB 2.0 Headers (Support 6 USB 2.0 ports)

- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)

- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)****

- 1 x Dr. Debug with LED

- 1 x Power Button with LED

- 1 x Reset Button with LED

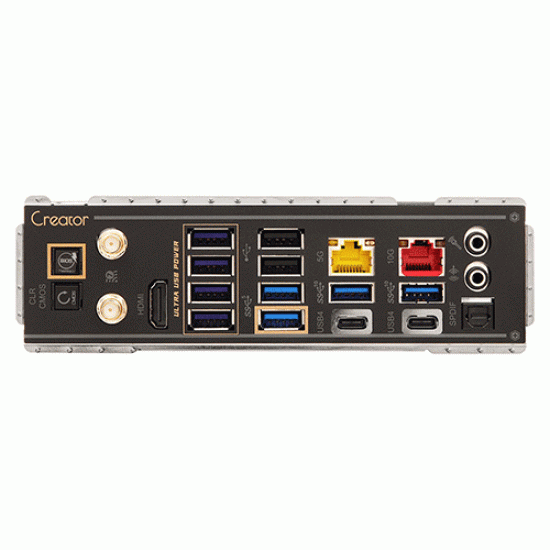

Rear Panel I/O

- 2 x Antenna Ports

- 1 x HDMI Port

- 1 x Optical SPDIF Out Port

- 2 x USB4 Type-C Ports (40 Gb/s)*

- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)

- 6 x USB 3.2 Gen1 Type-A Ports (USB32_1234 supports Ultra USB Power.)**

- 2 x USB 2.0 Ports

- 2 x RJ-45 LAN Ports

- 1 x Clear CMOS Button

- 1 x BIOS Flashback Button

- 1 x Line Out Jack (Gold Audio Jack)

- 1 x Microphone Input Jack (Gold Audio Jack)

Software and UEFI

Software

- ASRock Motherboard Utility (A-Tuning)

- ASRock Polychrome SYNC*

UEFI

- ASRock EZ Mode

- ASRock Full HD UEFI

- ASRock Auto Driver Installer

- ASRock Instant Flash

Accessories

- 4 x SATA Data Cables

- 1 x ASRock WiFi 2.4/5/6 GHz Antenna

- 1 x ARGB Splitter Cable

- 1 x Thermistor Cable

Form Factor

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm

- 8 Layer PCB

OS

- Microsoft Windows® 10 64-bit / 11 64-bit

Certifications

- FCC, CE

- ErP/EuP ready (ErP/EuP ready power supply is required)

- CEC Tier II ready
