MSI GeForce RTX 5060 8G SHADOW 2X OC 8GB GDDR7

Key Features

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
• Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

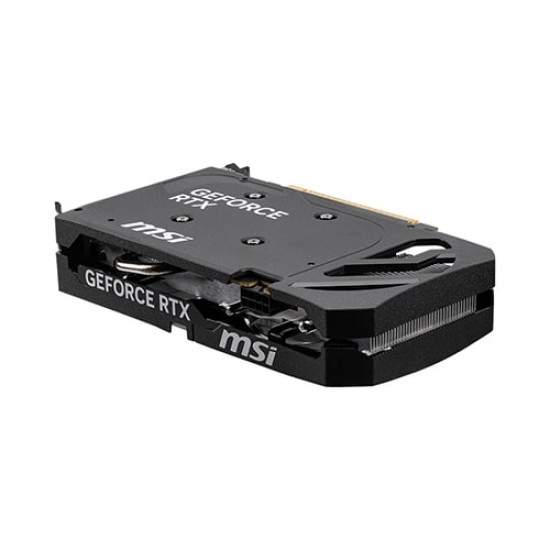

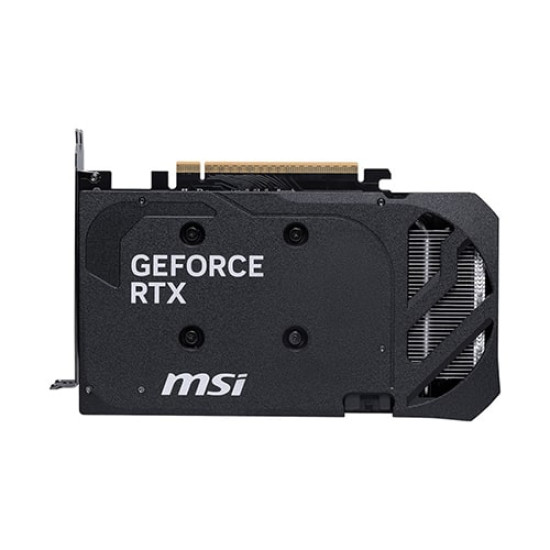

• Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

TAKE THE ESSENTIALS

MSI SHADOW brings a performance-focused design that delivers the gaming experience players want, making it the ideal choice when upgrading or building a gaming rig.

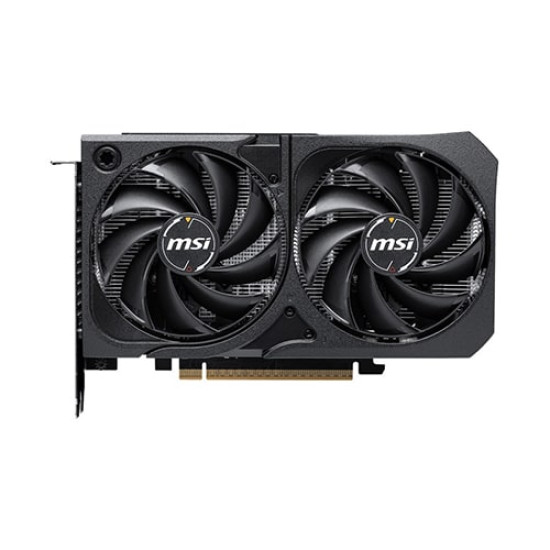

DUAL-Fan Thermal Design

Two fans on a large heatsink ensure great cooling performance with a quieter experience.

HARDENING EVERY DETAIL

All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.

Specification

Marketing Name : GeForce RTX™ 5060 8G SHADOW 2X OC

Model Name : G5060-8S2C

Graphics Processing Unit : NVIDIA® GeForce RTX™ 5060

Interface : PCI Express® Gen 5 x16 (uses x8)

CUDA® CORES : 3840 Units

Memory Speed : 28 Gbps

Memory : 8GB GDDR7

Memory Bus : 128-bit

HDCP Support : Y

Power consumption : 145 W

Power connectors : 8-pin x 1

Recommended PSU : 550 W

Card Dimension (mm) : 197 x 120 x 40 mm

DirectX Version Support : 12 Ultimate

OpenGL Version Support : 4.6

Maximum Displays : 4

G-SYNC® technology : Y

Digital Maximum Resolution : 7680 x 4320

Core Clocks

Extreme Performance : 2535 MHz (MSI Center)

Boost : 2527 MHz

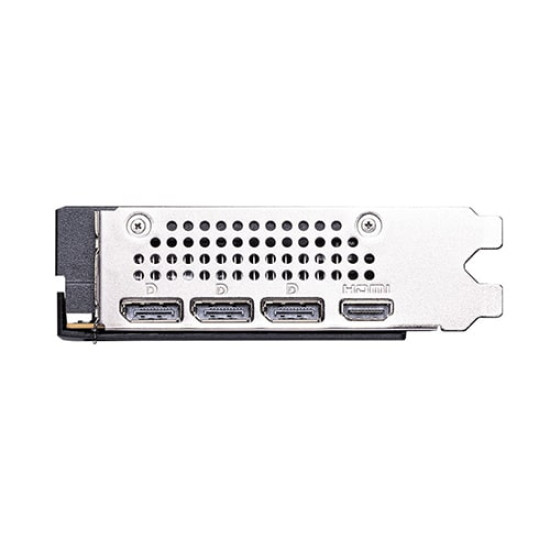

Output

DisplayPort x 3 (v2.1b)

HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
