EVGA 850 P5 80 Plus Platinum 850W Fully Modular PSU (220-P5-0850-X1)

Features

Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support

Fully Modular to reduce clutter and improve airflow

NVIDIA SLI & AMD Crossfire Ready

80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads

Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)

100% Japanese Capacitors ensure long-term reliability

Active Clamp +DC to DC design for efficient operation

EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads

Active Power Factor Correction

Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.

DC-DC Converter improves 3.3V/5V stability

Specifications

Cable Length

ATX Cable : 1x 600mm

EPS Cable : 2x 700mm

PCIe Cable : 2x 700mm, 2x 700mm, 850mm

SATA Cable : 3x 550mm, 650mm, 750mm

Four-Pin Peripheral Cable : 1x 550mm, 650mm, 750mm, 850mm

Floppy Adapter : 1x 100mm

AC Power : 1x 1500mm

Modular Cable Type : Full

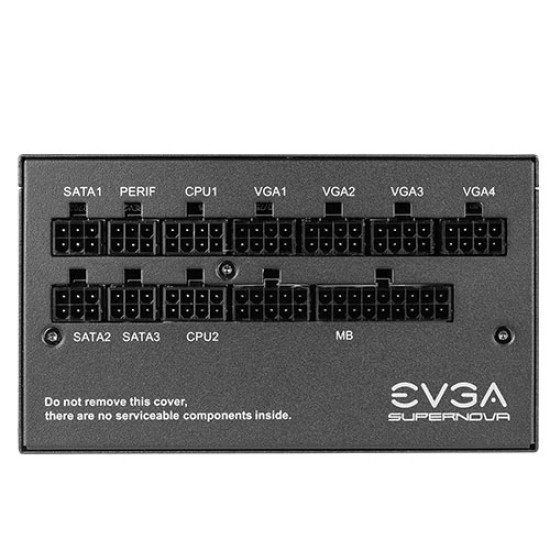

Connector Quantity

24 Pin ATX : 1x 24pin

EPS (CPU) : 2x 8pin (4+4)

PCIe : 6x 8pin (6+2)

SATA : 9x

Four-Pin Peripheral : 4x

Floppy : 1x

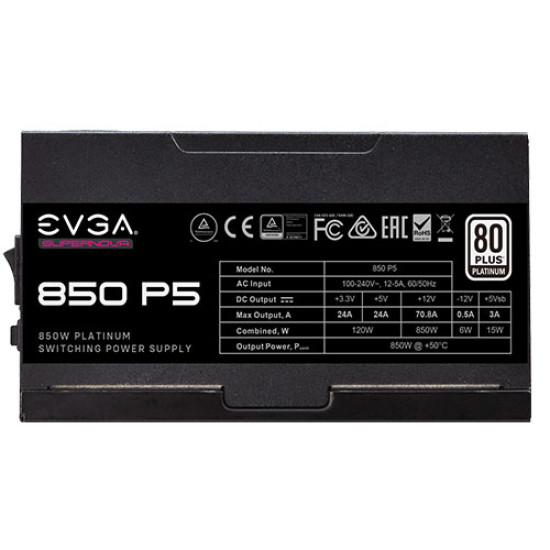

Power Specs

AC Input : 100-240V~, 12-5A, 60/50 Hz

Rail : +3.3V +5V +12V +5Vsb -12V

Max Output

24A 24A 70.8A 3A 0.5A

120W 850W 15W 6W

Total 850W

Additional Details

Operating Temperature : 0° to 50° C

Japanese Capacitors : 100%

ECO Mode : Yes

MTBF : 100,000 Hours

Net Weight : 6.70 lbs

Size : 86mm (H) x 150mm (W) x 150mm (L)

Approvals

TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS

Compliance with ErP Lot 3 2014 Requirement

Fan Size / Bearing : 135mm Fluid Dynamic Bearing
