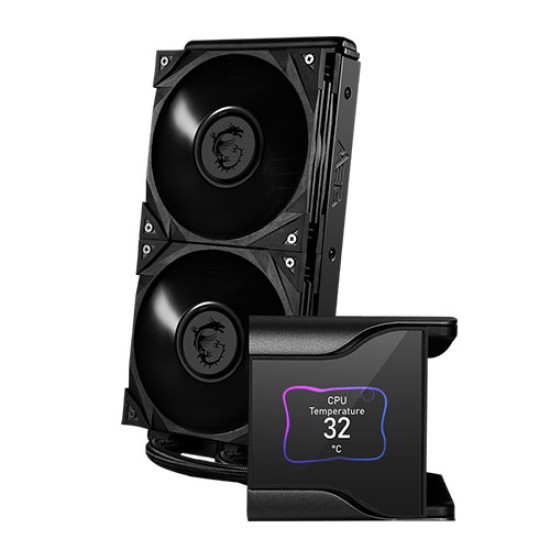

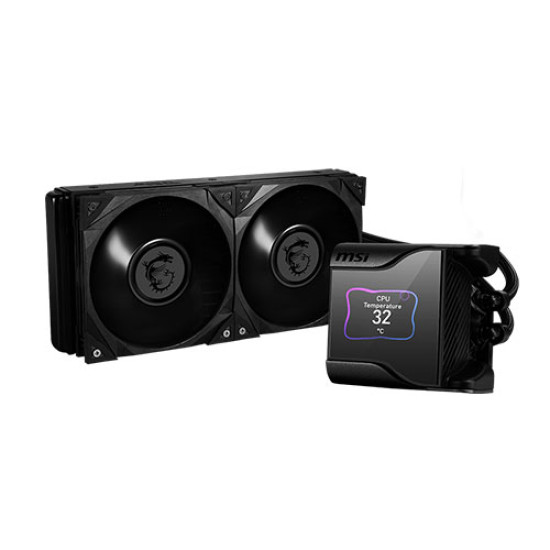

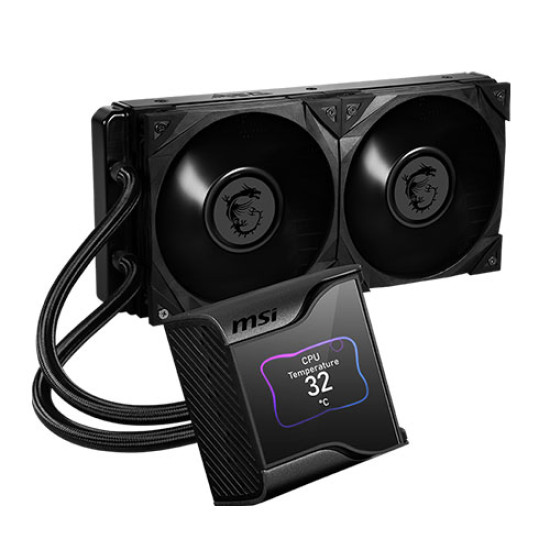

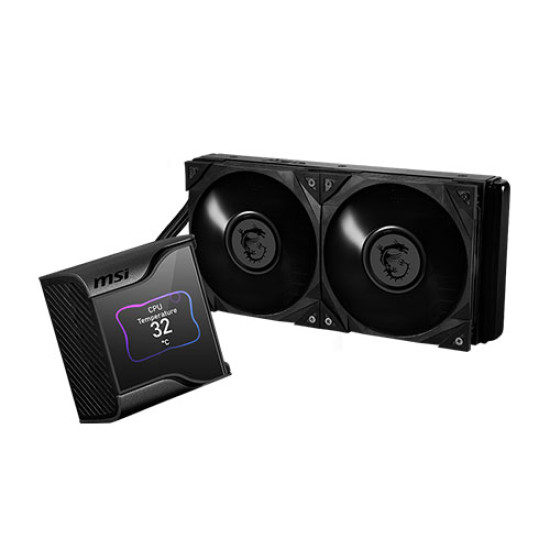

MSI MEG CORELIQUID S280 AIO Liquid CPU Cooler

MSI MEG CORELIQUID S280 AIO Liquid CPU Cooler

NEXT-GEN AMD SOCKET AM5 SUPPORT
AMD Socket AM5 (LGA 1718) is the next-generation socket designed to support next-generation AMD Ryzenâ„¢ 7000 desktop processors (Zen 4). AMD Socket AM5 uses the same liquid cooler bracket as Socket AM4*. This allows you to upgrade to and enjoy AM5 without buying a new liquid cooler.

SILENT COOLING
MSI’s MEG SILENT GALE P14 provides sufficient airflow to the radiator for cooling while maintaining low noise levels.

MEG SILENT GALE P14
The MEG SILENT GALE P14 is MSI’s innovative silent fan designed to generate the most silent airflow.

CONCENTRATED COOLING PERFORMANCE
A 60mm fan is placed within the water block to help dissipate heat for the M.2 SSD, CPU VRMs, and surrounding components.

TOTAL CONTROL IN YOUR HANDS
Everything ranging from MEG CORELIQUID S Series’ fan speed to the IPS display can be adjusted through the MSI Center.

LGA 1700 COMPATIBLE
The MEG CORELIQUID S Series liquid cooler provides out of box support for LGA 1700.

MEG CORELIQUID S280
-MSI’S MEG SILENT GALE P14 provides sufficient airflow to the radiator for cooling while maintaining low noise levels.
-A 60mm fan is placed within the water block to help dissipate heat for the M.2 SSD, CPU VRMs, and surrounding components.
-The MEG SILENT GALE P14 and the water block fan support 0% RPM to ensure zero noise under low temperatures.
-The MEG CORELIQUID S Series comes with a 2.4” IPS display capable of displaying hardware information, GIF, MP4, photos, texts, and live weather information.
-The MEG CORELIQUID S Series liquid cooler provides out of box support for LGA 1700.

Technical Details
Brand : MSI
Model : S280

Technical Specs
RADIATOR SIZE : 280 mm
RADIATOR DIMENSIONS (WXDXH) : 314.8 x 140 x 27 mm / 12.39 x 5.51 x 1.06 inches
RADIATOR MATERIAL : Aluminum
WATER COOLING TUBE MATERIAL : Black Rubber + Mesh
WATER COOLING TUBE LENGTH : 400 mm / 15.75 inches
NUMBER OF FANS : 2
FAN DIMENSIONS (WXDXH) : 140 x 140 x 25 mm / 5.51 x 5.51 x 0.98 inches
FAN SPEED : 0 ~ 1800 RPM
FAN AIR FLOW : 82.27 CFM
FAN NOISE LEVEL : 24.9 dBA
FAN STATIC PRESSURE : 2.2 mm H2O
FAN BEARING : Hydro-Dynamic Bearing
FAN LIFE EXPECTANCY : 50,000 Hours
FAN RATED CURRENT : 0.5 A (MAX)
FAN POWER CONSUMPTION : 6 W (MAX)
PWM MODE : Yes
CABLE LENGTH (PWM CABLE) : 350 mm / 13.78 inches
FAN CONNECTOR : 4 pin PWM
PUMP LIFE EXPECTANCY : 50,000 Hours
PUMP NOISE LEVEL : 21.2 dBA
PUMP RATED CURRENT : 0.33A
PUMP POWER CONSUMPTION : 4W
PUMP SPEED : 2800 +/-300 RPM (PWM controlled)
PUMP CONNECTOR : 4 pin PWM
COLD PLATE MATERIAL : Copper
BLOCK DIMENSIONS (WXDXH) : 95 x 95 x 83.53 mm
PANEL SIZE : 2.4"
PANEL TYPE : IPS
PANEL RESOLUTION : 320 x 240
PANEL COLOR DEPTH : 16 bits
PANEL BRIGHTNESS : 500 nits
INTERFACE CONNECTOR : USB 2.0 pin header
POWER CONNECTOR : SATA

INTEL SOCKET SUPPORT
LGA 1700 / 1200 / 1151 / 1150 / 1155 / 1156
LGA 2066 / 2011-3 / 2011

AMD SOCKET SUPPORT
AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1
Socket TR4 / sTRX4 / SP3
