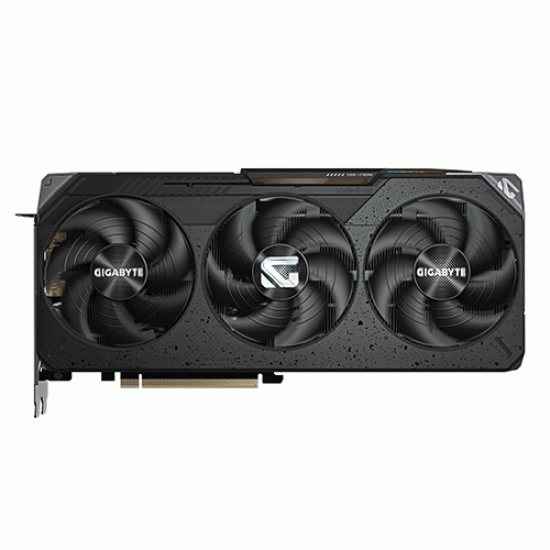

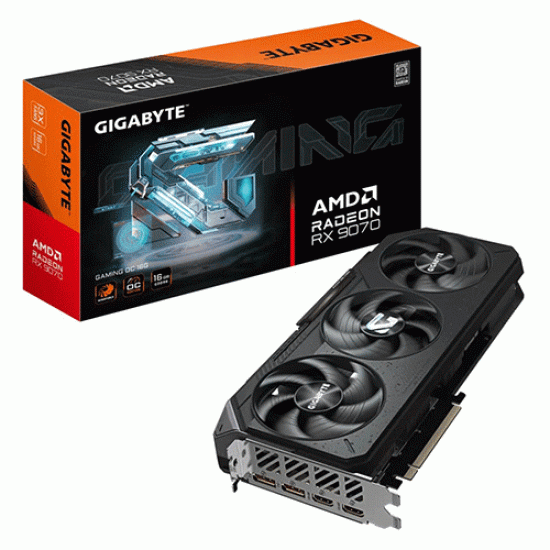

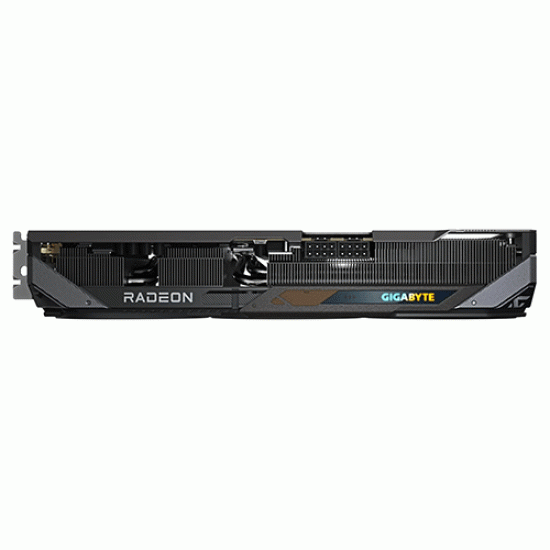

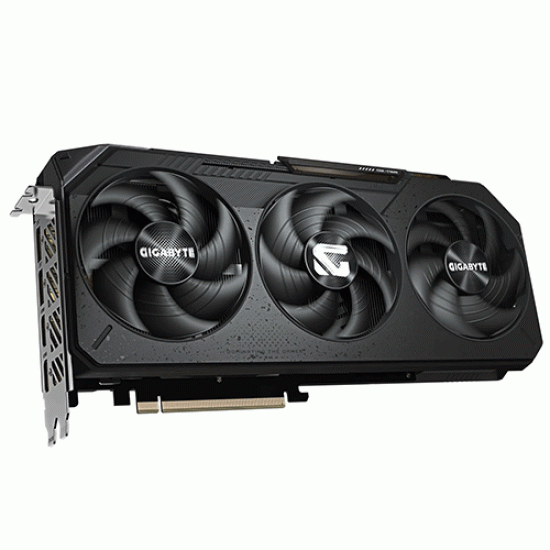

Gigabyte Radeon RX 9070 GAMING OC 16G (GV-R9070GAMING OC-16GD)

WINDFORCE

COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN

The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.

MULTI-LAYERED VISUAL

Like armor, the exterior features a multi-layered structure combined with varied surface material finishes.

UNIQUE TEXTURE

Unique textures cover the curved surface, paired with the layering of appreance that give the GAMING design a strong armor-like identity. Every detail highlights a sturdy image and accentuates mechanical aesthetics.

RGB LIGHTING

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

SLIDING SIDE PLATE

Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.

REINFORCED STRUCTURE

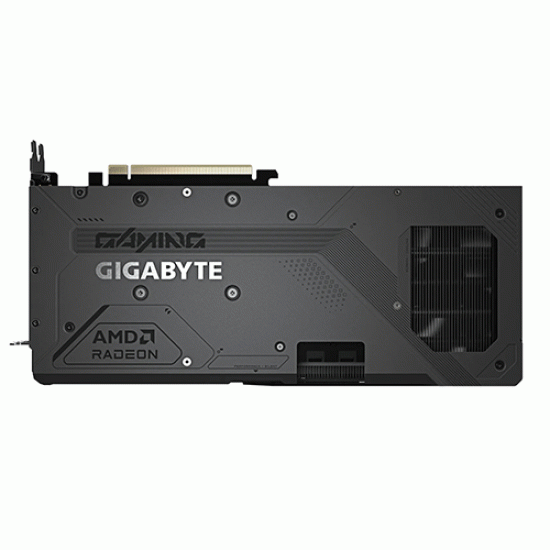

The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specification :

Graphics Processing : Radeon RX 9070

Core Clock :

Boost Clock* : up to 2700 MHz (Reference card: 2520 MHz)

Game Clock* : up to 2210 MHz (Reference card: 2070 MHz)

Stream Processors : 3584 ( 56CU)

Memory Clock : 20 Gbps

Memory Size : 16GB

Memory Type : GDDR6

Memory Bus : 256 bit

Card Bus : PCI-E 5.0

Digital max resolution : 7680 x 4320

Multi-view : 4

Card size : L=288 W=132 H=50 mm

PCB Form : ATX

DirectX : DirectX 12 API

OpenGL : OpenGL 4.6

Recommended PSU : 750W

Power Connectors : 8 pin*2

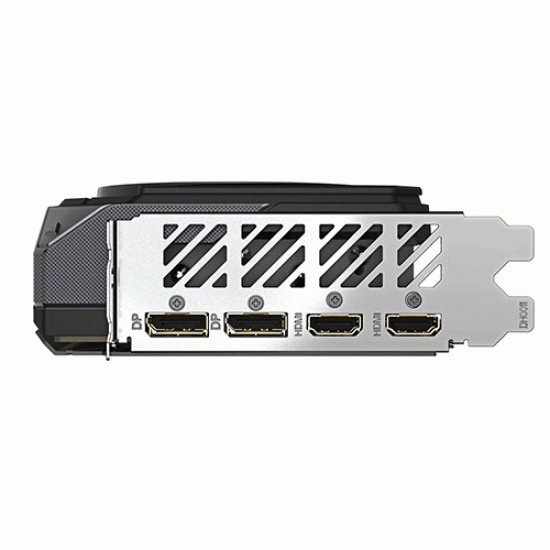

Output :

DisplayPort 2.1a x2

HDMI 2.1b x2

Accessories : VGA manual
