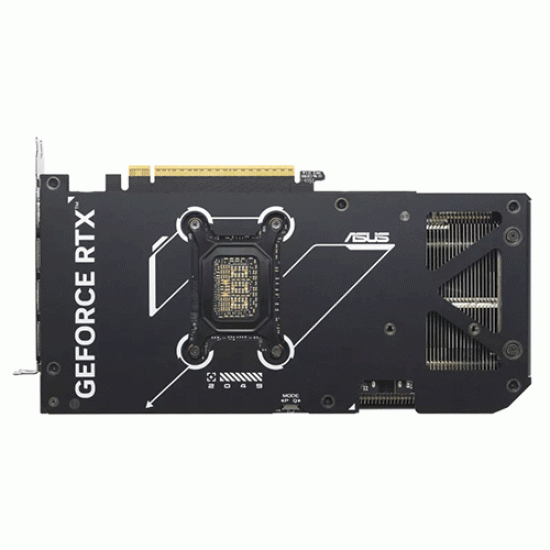

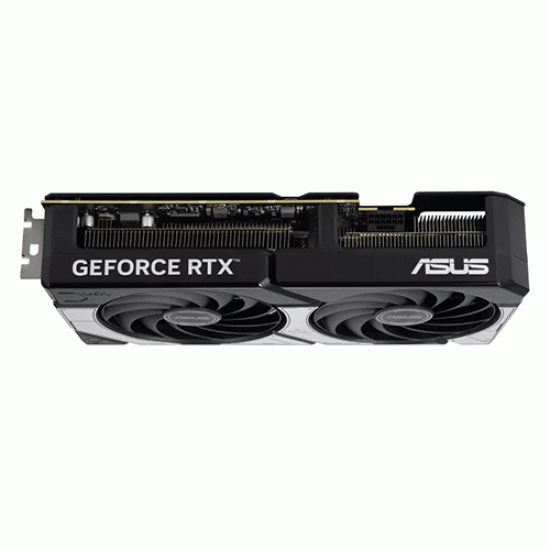

ASUS Dual GeForce RTX 5070 12GB GDDR7 (DUAL-RTX5070-12G)

Dual Fans, Perfect Fit

ASUS Dual GeForce RTX™ 5070 combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans for optimizing airflow to the heatsink. Designed with a compact profile, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

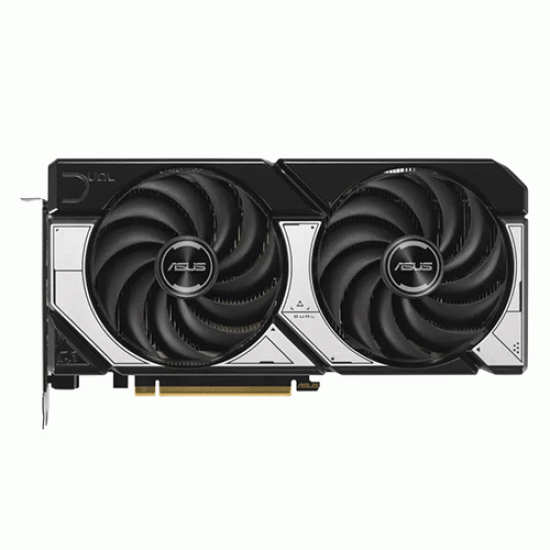

Compact Dual-Fan Design

A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.

Dual BIOS

Do you prioritize lower core temperatures or quieter operation? Performance mode increases fan speed to keep the card running cool all the time. Quiet mode maintains the same power target and performance settings, but applies a less aggressive fan curve for quieter operation at medium temperatures. Want more control? Customize your experience with GPU Tweak III software for fine-tuned fan profiles and performance adjustments.

Auto−Extreme Technology

Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing completing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting and minimizes in less environmental impact, . The result is lower power consumption during manufacturing and a more reliable, high-quality product.lower manufacturing power consumption, and a more reliable product overall.

Best PSU for the GeForce RTX 50 Series

Use the wattage calculator to estimate how much power you’ll need to fuel your rig, and then pick a compatible ROG, TUF Gaming or Prime power supply for ultimate performance.

The Ultimate in Ray Tracing and AI

RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.

Specification

Graphic Engine : NVIDIA® GeForce RTX™ 5070

AI Performance : 988 TOPs

Bus Standard : PCI Express 5.0

OpenGL : OpenGL®4.6

Video Memory : 12GB GDDR7

Engine Clock :

OC mode: 2542MHz

Default mode: 2512MHz (Boost Clock)

CUDA Core : 6144

Memory Speed : 28 Gbps

Memory Interface : 192-bit

Resolution : Digital Max Resolution 7680 x 4320

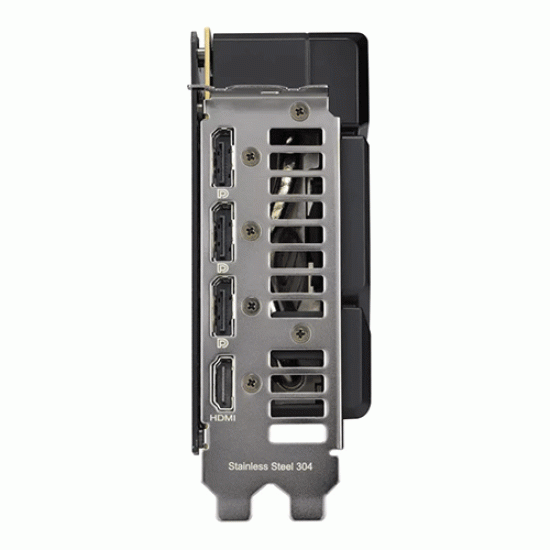

Interface : Yes x 1 (Native HDMI 2.1b), Yes x 3 (Native DisplayPort 2.1b), HDCP Support Yes (2.3)

Maximum Display Support : 4

NVlink/ Crossfire Support : No

Accessories :

1 x Speedsetup Manual

1 x Thank You Card

1 x Adapter Cable (1 to 2)

Software :

ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions : 249 x 126 x 50.6 mm

Recommended PSU : 750

Power Connectors : 1 x 16-pin

Slot : 2.53 Slot

SFF Ready : Compatible
