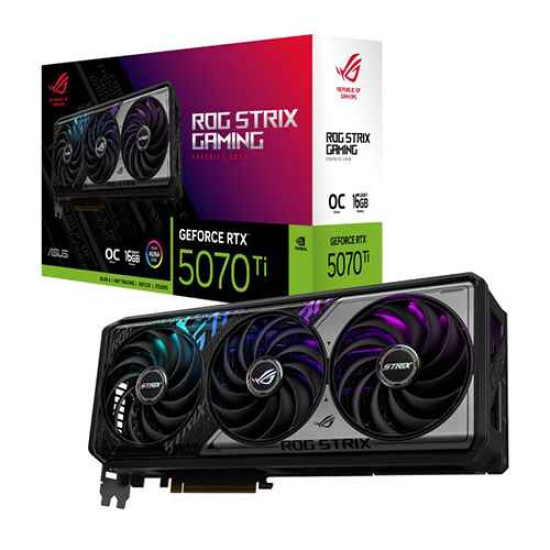

Asus ROG Strix GeForce RTX 5070 Ti 16GB GDDR7 OC Edition

Key Features

ROG Strix GeForce RTX™ 5070 Ti 16GB GDDR7 OC Edition

The ROG Strix GeForce RTX™ 5070 Ti OC Edition 16GB GDDR7 with advanced cooling system provides you premium power delivery.

• AI Performance: 1492 AI TOPS
• Powered by the NVIDIA Blackwell architecture and DLSS 4
• OC mode: 2625 MHz (OC mode)/ 2602 MHz (Default mode)
• 3.2-slot design: massive fin array optimized for airflow from the three Axial-tech fans
• Axial-tech fans have been scaled up to propel 31% more air through the card to reach higher performance.
• 0dB technology lets you enjoy light gaming in relative silence
• MaxContact design with vapor chamber ensures efficient heat transfer, providing a premium performance
• Phase-change GPU thermal pad helps ensure optimal heat transfer, lowering GPU temperatures for enhanced performance and reliability.
• Premium power delivery with digital power control and 15K caps ensure high performance.
• Protective PCB Coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.
• Aura Sync features Aura-compatible ARGB lighting on the shroud and perimeter allows endless personalization.
• GPU Tweak III software provides intuitive performance tweaking, advanced thermal control and system monitoring

FIND YOUR EDGE

The premium performance ROG Strix GeForce RTX 5070 Ti, featuring advanced cooling system with axial-tech fan, vapor chamber, phase-change GPU thermal pad and MaxContact design, lowering GPU temperature to reach higher performance. Aura sync provides endless possibilities for personalization with color or functional effects.

Phase-Change GPU Thermal Pad

Phase-change GPU thermal pad ensure long-term reliability.

Axial-Tech Fan

Axial-tech fans with dual-ball bearings propel more air

Premium Power Delivery

With digital power control and 15K caps ensure high performance.

Aura Sync

Aura-compatible ARGB lighting on the shroud and perimeter allows endless personalization.

MaxContact Design with Vapor Chamber

Ensures efficient heat transfer with 3.2 slot heatsink and vapor chamber, providing a premium performance

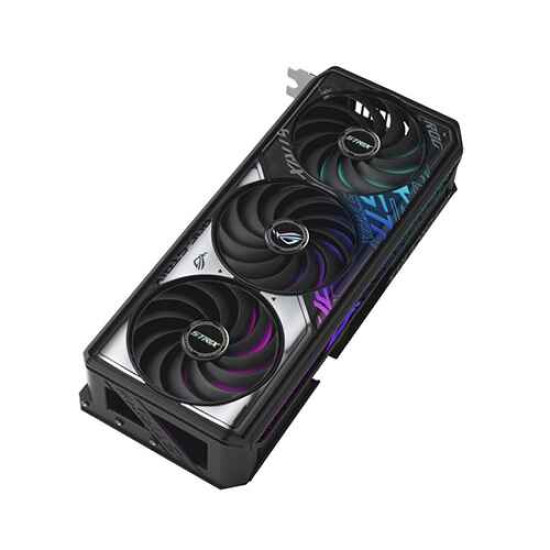

Axial-tech Upgrades

Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel more air through the card, setting the stage for lower temperatures, less noise, and higher performance.

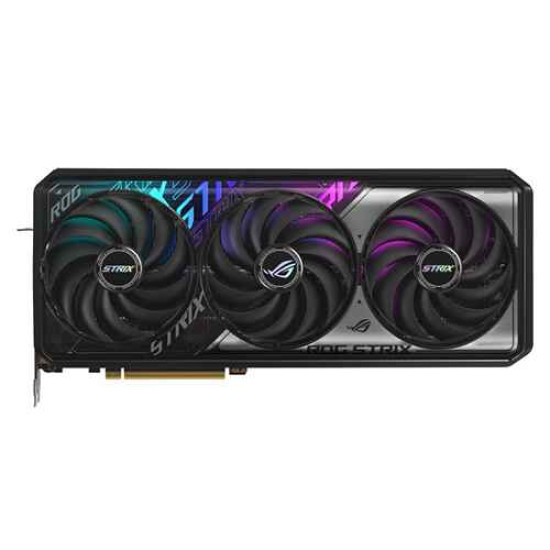

Reverse Rotation and 0dB Technology

The two side fans spin counterclockwise to reduce turbulence and improve airflow through the heatsink. All three fans stop when GPU temperatures are below 50°C, ensuring quiet operation during light tasks or less-demanding games. They resume operation above 55°C, following a speed curve that optimizes performance and noise levels.

Vapor Chamber

A vapor chamber and heatsink soaks up heat from the graphics card, helping to ensure premium performance in a variety of scenarios.

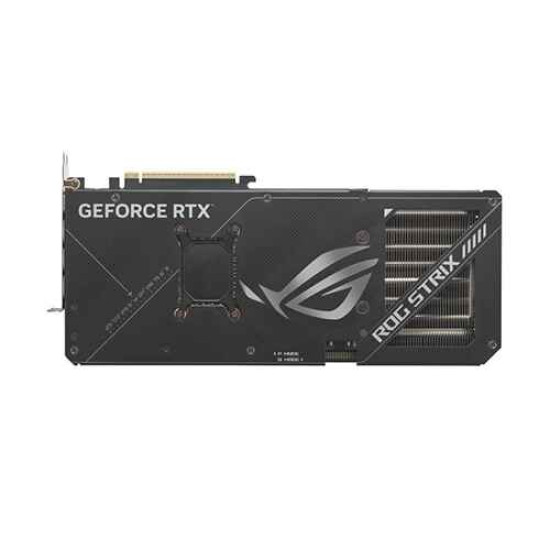

Vented Backplate

• Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
• A shorter PCB with optimized component and trace layouts reduces power loss and allows heat to escape through a large backplate vent.

MaxContact Design

MaxContact is an ASUS-exclusive manufacturing technique that effectively increases the surface area of the GPU heat spreader by 5% for improved thermal efficiency.

Phase-Change GPU Thermal Pad

By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

Aura Sync

The ARGB lighting components compatible with Aura on the card's shroud and right edge offer limitless options for customizing colors and effects. Combine these with a variety of compatible system parts to synchronize the illumination and create a truly unique build.

Patented “GPU-First” Intelligent Voltage Stabilizer

Pair with the ROG Thor III or ROG Strix Platinum Series PSU and enjoy reliable power for your graphics card. GPU-First enhances voltage stability by up to 45%, even during demanding gaming sessions and overclocking scenarios, helping to ensure peak performance for a more consistent gaming experience. Additionally, the integration of a GaN MOSFET boosts power efficiency by up to 30%.

PC Power Supply Calculator

Use our wattage calculator to estimate how much power you’ll need to fuel your rig, and then pick a compatible ROG, TUF Gaming or Prime power supply for ultimate performance.

The Ultimate in Ray Tracing and AI

RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.

Specification

Model : ROG Strix GeForce RTX™ 5070 Ti 16GB GDDR7 OC Edition

Graphic Engine : NVIDIA® GeForce RTX™ 5070 Ti

AI Performance : 1492 TOPs

Bus Standard : PCI Express 5.0

OpenGL : OpenGL®4.6

Video Memory : 16GB GDDR7

CUDA Core : 8960

Memory Speed : 28 Gbps

Memory Interface : 256-bit

Resolution : Digital Max Resolution 7680 x 4320

Maximum Display Support : 4

NVlink/ Crossfire Support : No

Software : ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Recommended PSU : 850W

Power Connectors : 1 x 16-pin

Slot : 3.2 Slot

AURA SYNC : ARGB

Engine Clock

OC mode : 2625MHz

Default mode : 2602MHz (Boost Clock)

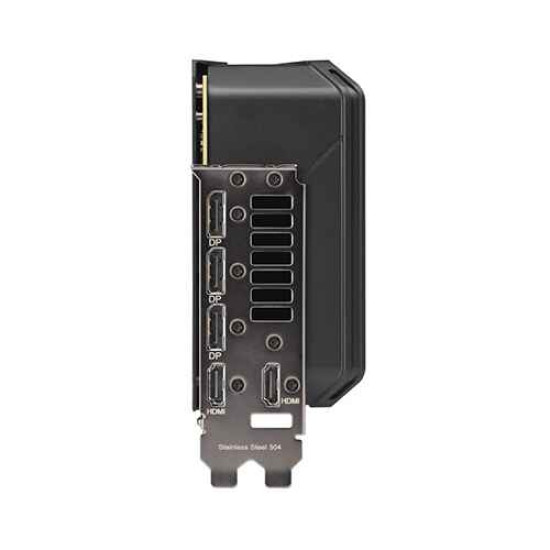

Interface

Yes x 2 (Native HDMI 2.1b)

Yes x 3 (Native DisplayPort 2.1b)

HDCP Support Yes (2.3)

Accessories

1 x Speedsetup Manual

1 x ROG Graphics Card Holder

1 x ROG Velcro Hook & Loop

1 x ROG Magnet

1 x ROG PCB Ruler

1 x Thank You Card

1 x Power Cable (1 to 3)

Dimensions

332 x 147.3 x 64 mm

13.07 x 5.79 x 2.519 inch
