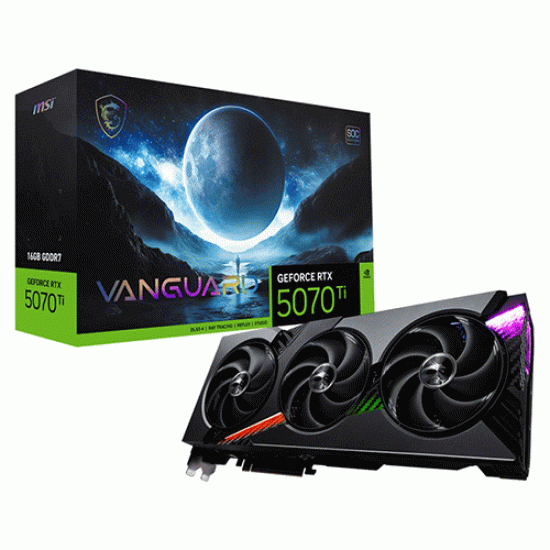

MSI GeForce RTX 5070 Ti 16G VANGUARD SOC 16GB GDDR7

Your Journey, Your Rules.

MSI Vanguard series graphics card embodies the spirit of exploration. Premium gaming craftsmanship is expressed with aerodynamic edges, fractured lines, and futuristic RGB lights that empower players to push the limits of adventure while exploring uncharted worlds.

HYPER FROZR THERMAL DESIGN

An apex evolution of advanced thermal design that combines fans, core pipes, vapor chamber, and fin shape to unleash unparalleled cooling efficiency and silent performance.

Feature

Core Clocks

Extreme Performance: 2602 MHz (MSI Center) / Boost: 2588 MHz (GAMING & SILENT Mode)

HYPER FROZR THERMAL DESIGN

An apex evolution of advanced thermal design that delivers unparalleled cooling and quiet operation.

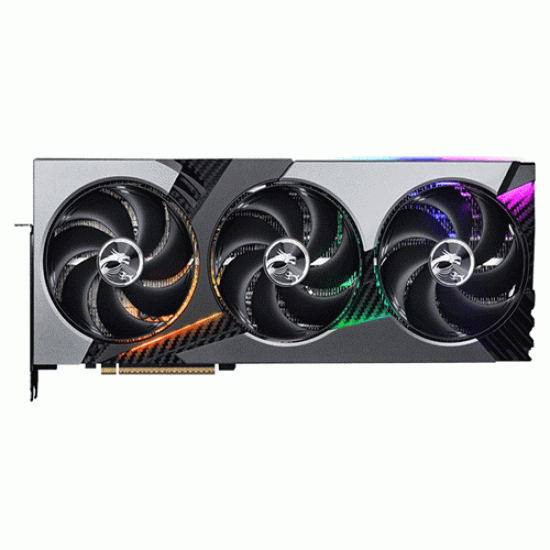

STORMFORCE Fan

Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.

Advanced Vapor Chamber

Built-in Vapor Chamber swiftly transfers heat from the GPU and VRAM to the core pipe for optimal dissipation.

Core Pipes

Square-shaped Core Pipes maximize heat dissipation with the Vapor Chamber for superior cooling.

Filled Fins

Shaped fins cover the core pipes to reduce turbulence and enhance cooling performance.

Wave Curved 4.0

Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.

Air Antegrade Fin 2.0

The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.

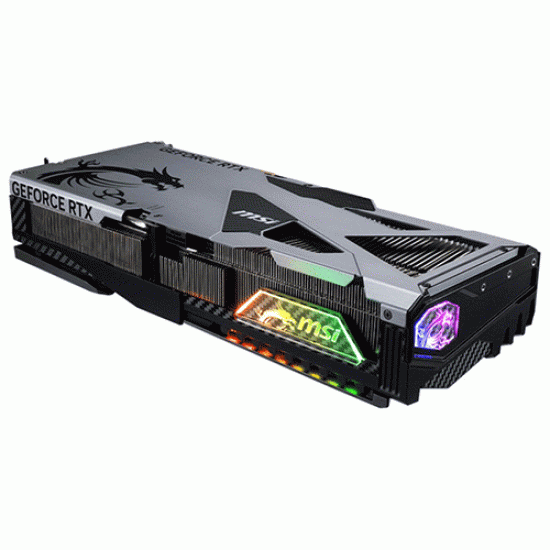

Metal Backplate

A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.

Dual BIOS

Dual BIOS gives you the choice to prioritize for full performance in GAMING mode or low noise in SILENT mode.

MSI Center

The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

Afterburner

Take full control with the most recognized and widely used graphics card overclocking software in the world.

Specfication

Marketing Name : GeForce RTX™ 5070 Ti 16G VANGUARD SOC

Model Name : G507T-16VGS

Graphics Processing Unit : NVIDIA® GeForce RTX™ 5070 Ti

Interface : PCI Express® Gen 5

Core Clocks ; Extreme Performance: 2602 MHz (MSI Center)

Boost: 2588 MHz (GAMING & SILENT Mode)

CUDA® CORES; 8960 Units

Memory Speed : 28 Gbps

Memory : 16GB GDDR7

Memory Bus : 256-bit

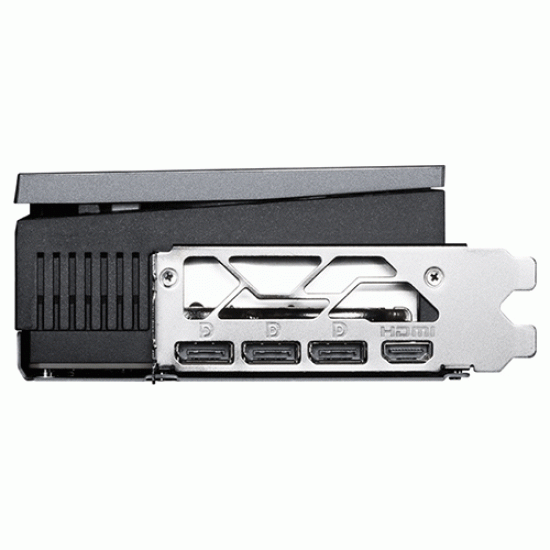

Output ; DisplayPort x 3 (v2.1b)

HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

HDCP Support : Y

Power consumption : 300W

Power connectors ; 16-pin x 1

Recommended PSU : 750W

Card Dimension (mm) : 357 x 151 x 66 mm

Weight (Card / Package) : 1945 g / 2844 g

DirectX Version Support : 12 Ultimate

OpenGL Version Support :4.6

Maximum Displays : 4

G-SYNC® technology : Y

Digital Maximum Resolution : 7680 x 4320
