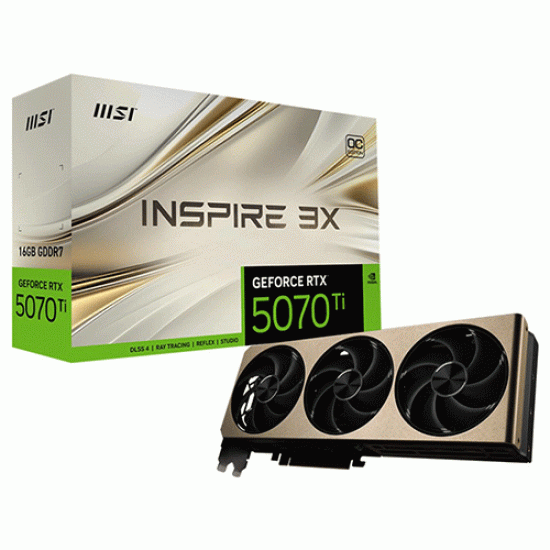

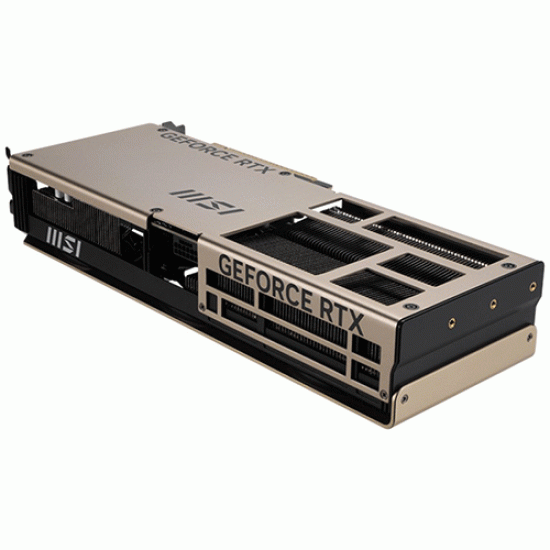

MSI GeForce RTX 5070 Ti 16G INSPIRE 3X OC 16GB GDDR7

BIG VISION, SMALL FORM

INSPIRE seamlessly fuses a sleek, compact design with cutting-edge performance, offering advanced capabilities while ensuring seamless compatibility with creative and professional builds.

Compact Design, Boundless Creativity

INSPIRE combines a small form factor with enhanced performance, making it the perfect fit for creative professionals seeking efficiency.

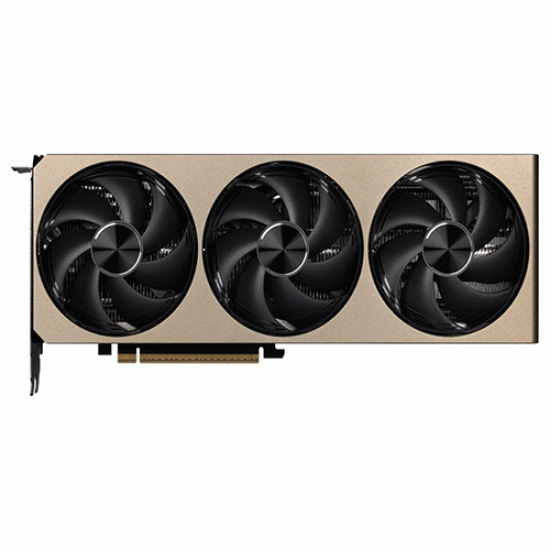

Triple-Fan Thermal Design

Three fans on a large heatsink deliver both superior and quieter cooling.

HARDENING EVERY DETAIL

*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.

Build Small. Play Big.

You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

Core Clock

Extreme Performance: 2497 MHz (MSI Center)

Boost: 2482 MHz

STORMFORCE FAN

Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.

Nickel-plated Copper Baseplate

Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.

Core Pipes

feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

WAVE-CURVED 3.0

Additional efficiency is gained by adjusting the size of the wave edges under the fan motor and other spots where there is less airflow.

AIR ANTEGRADE FIN

Fins with a V-shaped cutout are located at the airflow passthrough to improve flow efficiency. Optimizing the inclination angle and increasing the wave notch shapes the air resistance towards the center, pushing out warm air faster like a nozzle.

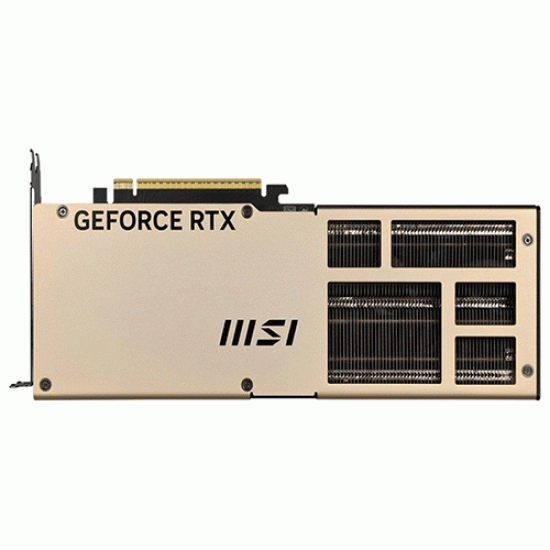

Metal Backplate

A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.

MSI Center

The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Specification

Marketing Name : GeForce RTX™ 5070 Ti 16G INSPIRE 3X OC

Model Name : G507T-16I3C

Graphics Processing Unit : NVIDIA® GeForce RTX™ 5070 Ti

Interface : PCI Express® Gen 5

Core Clocks : Extreme Performance: 2497 MHz (MSI Center)

Boost: 2482 MHz

CUDA® CORES : 8960 Units

Memory Speed : 28 Gbps

Memory : 16GB GDDR7

Memory Bus : 256-bit

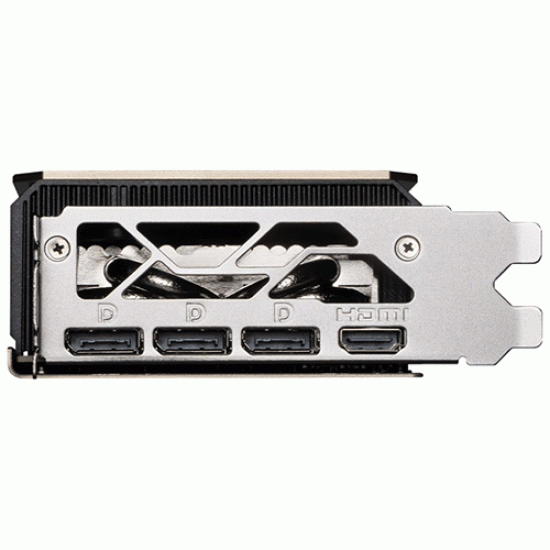

Output : DisplayPort x 3 (v2.1b)

HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

HDCP Support : Y

Power consumption : 300W

Power connectors : 16-pin x 1

Recommended PSU : 750W

Card Dimension (mm) ; 288 x 112 x 50 mm

Weight (Card / Package) : 904 g / 1360 g

DirectX Version Support : 12 Ultimate

OpenGL Version Support : 4.6

Maximum Displays : 4

G-SYNC® technology : Y

Digital Maximum Resolution : 7680 x 4320
