ASUS Prime Radeon RX 9060 XT 16GB GDDR6 OC Edition (PRIME-RX9060XT-O16G)

Primed for Power

Experience Primal performance with the Prime Radeon™ RX 9060 XT graphics card featuring a compact 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme cooling.

2.5-slot Design

The Prime Radeon™ RX 9060 XT features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.

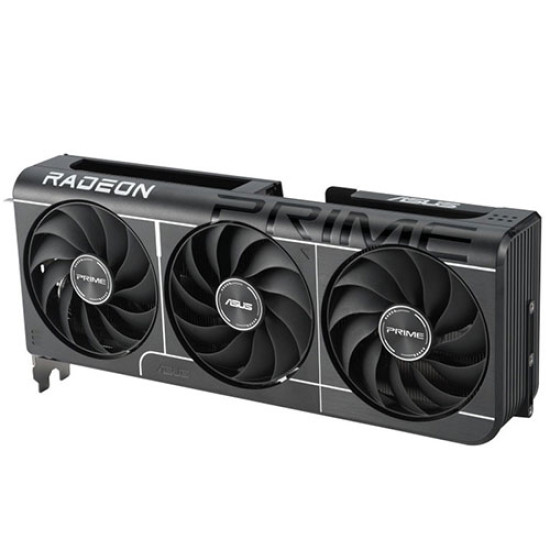

Axial-tech Upgrades

Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.

0dB Technology

All three fans come to a standstill when GPU temperatures are below 55°C, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 60°C, establishing a speed curve that balances performance and acoustics for work or play.]

Dual Ball Fan Bearings

Different bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.

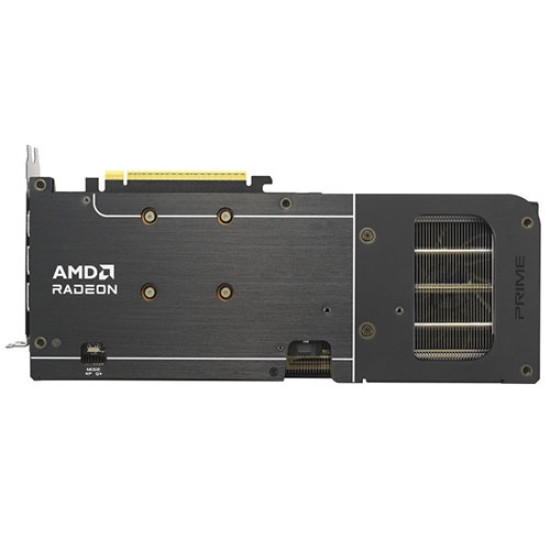

Vented Backplate

Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.

MaxContact Design

MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.

Dual BIOS

Do you prioritize low core temps or low noise levels? Performance mode lets the fans spin up to keep the card running cool all the time, and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at moderate temperatures.

Auto−Extreme Technology

An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.

BEST PSU FOR RADEON™ RX 9000 SERIES

Use the wattage calculator to estimate how much power you’ll need to fuel your rig, and then pick a compatible ROG, TUF Gaming or Prime power supply for ultimate performance.

Specifications

Model : PRIME-RX9060XT-O8G

Graphic Engine : AMD Radeon™ RX 9060 XT

Bus Standard : PCI Express 5.0

OpenGL : OpenGL®4.6

Video Memory : 8GB GDDR6

Engine Clock

OC mode (GPU Tweak III): up to 3330 MHz (Boost Clock)/up to 2760 MHz (Game Clock)

Default mode: up to 3310 MHz (Boost Clock)/up to 2740 MHz (Game Clock)

Stream Processors : 2048

Memory Speed : 20 Gbps​

Memory Interface : 128-bit

Resolution : Digital Max Resolution 7680 x 4320

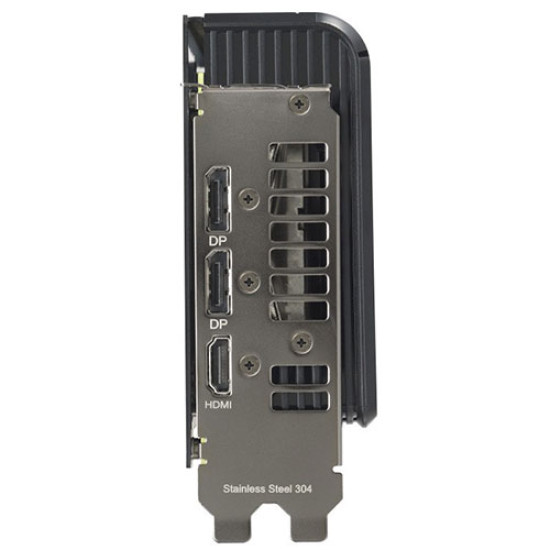

Interface

Yes x 1 (Native HDMI 2.1b)

Yes x 2 (Native DisplayPort 2.1a)

HDCP Support Yes (2.3)

Maximum Display Support : 3

NVlink/ Crossfire Support : No

Accessories

1 x Thank you card

1 x Speedsetup Manual

Software

ASUS GPU Tweak III & Drivers: please download all software from the support site.

Dimensions : 304 x 126 x 50mm

Recommended PSU : 550W

Power Connectors : 1 x 8-pin

Slot : 2.5 Slot
