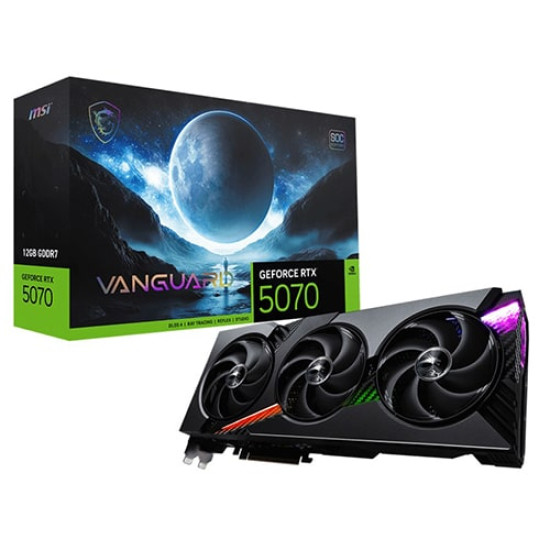

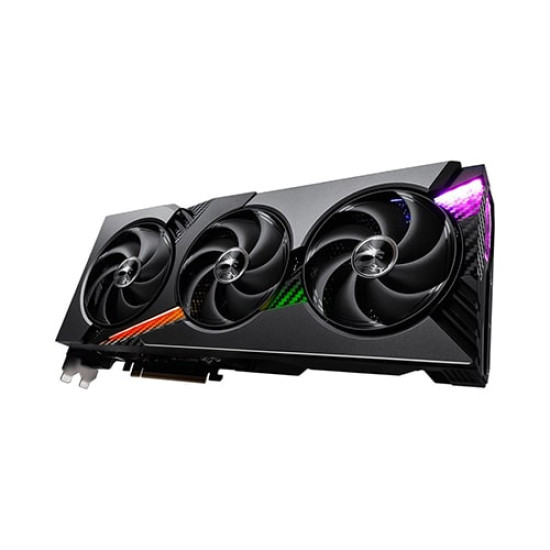

MSI GeForce RTX 5070 12G VANGUARD SOC 12GB GDDR7

Key Features

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• HYPER FROZR THERMAL DESIGN: An apex evolution of advanced thermal design that delivers unparalleled cooling and quiet operation.
• STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
• Advanced Vapor Chamber: Built-in Vapor Chamber swiftly transfers heat from the GPU and VRAM to the core pipe for optimal dissipation.
• Core Pipes: Square-shaped Core Pipes maximize heat dissipation with the Vapor Chamber for superior cooling.
• Filled Fins: Shaped fins cover the core pipes to reduce turbulence and enhance cooling performance.
• Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
• Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.

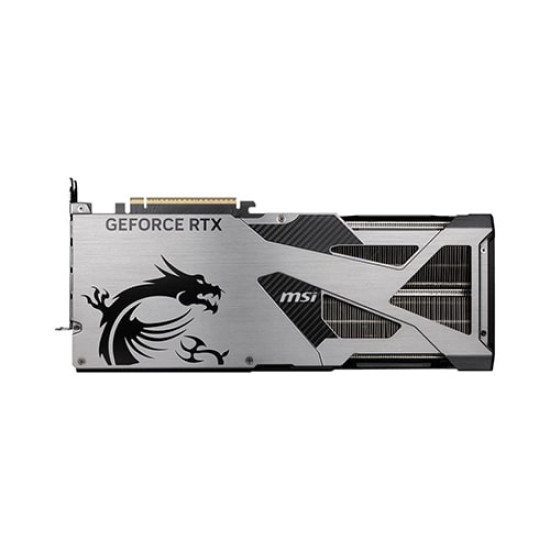

• Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
• Afterburner: Take full control with the most recognized and widely used graphics card overclocking software in the world.

Your Journey, Your Rules.

MSI Vanguard series graphics card embodies the spirit of exploration. Premium gaming craftsmanship is expressed with aerodynamic edges, fractured lines, and futuristic RGB lights that empower players to push the limits of adventure while exploring uncharted worlds.

HYPER FROZR THERMAL DESIGN

An apex evolution of advanced thermal design that combines fans, core pipes, vapor chamber, and fin shape to unleash unparalleled cooling efficiency and silent performance.

HARDENING EVERY DETAIL

All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.

Specification

Marketing Name : GeForce RTX™ 5070 12G VANGUARD SOC

Model Name : G5070-12VGS

Graphics Processing Unit : NVIDIA® GeForce RTX™ 5070

Interface : PCI Express® Gen 5

CUDA® CORES : 6144 Units

Memory Speed : 28 Gbps

Memory : 12GB GDDR7

Memory Bus : 192-bit

HDCP Support : Y

Power consumption : 250W

Power connectors : 16-pin x 1

Recommended PSU : 650W

Card Dimension (mm) : 337 x 140 x 61 mm

DirectX Version Support : 12 Ultimate

OpenGL Version Support : 4.6

Maximum Displays : 4

G-SYNC® technology : Y

Digital Maximum Resolution : 7680 x 4320

Core Clocks

Extreme Performance: 2655 MHz (MSI Center)

Boost: 2640 MHz

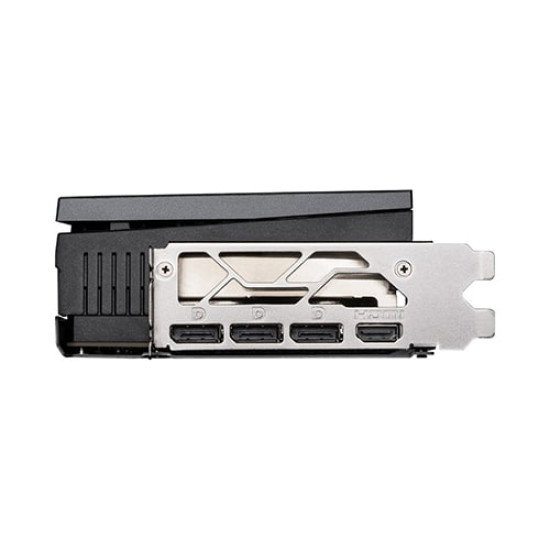

Output

DisplayPort x 3 (v2.1b)

HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
