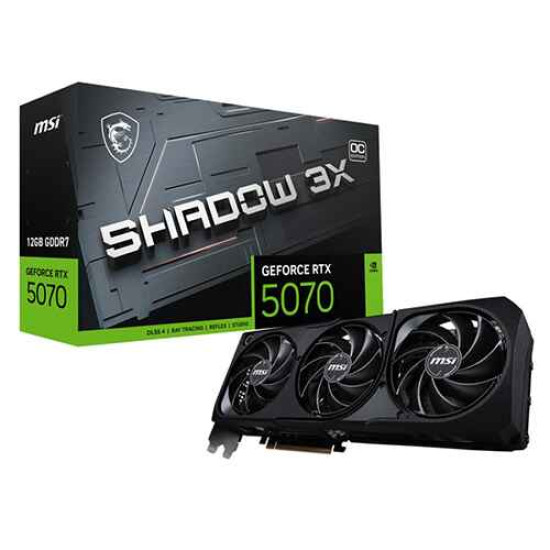

MSI GeForce RTX 5070 12G SHADOW 3X OC 12GB GDDR7

Key Features

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• SFF-Ready Enthusiast GeForce Card
• TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
• Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
• Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

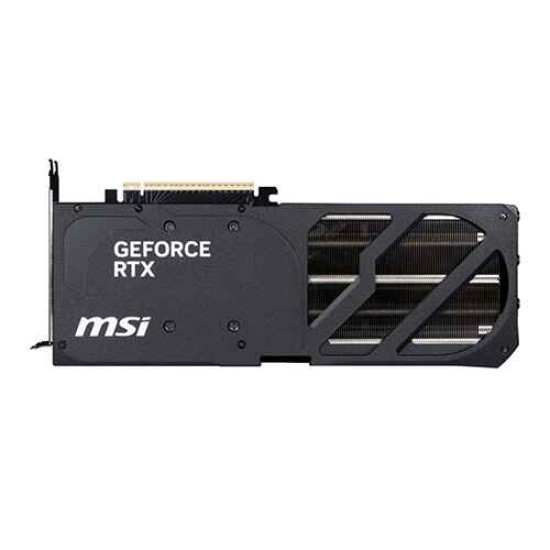

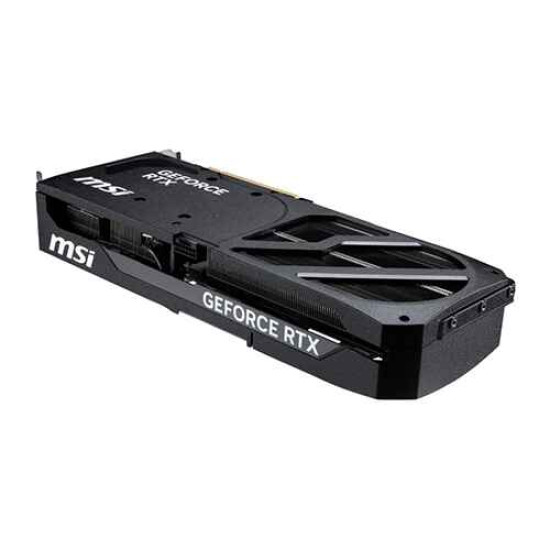

• Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.
• MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
• Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

TAKE THE ESSENTIALS

MSI SHADOW brings a performance-focused design that delivers the gaming experience players want, making it the ideal choice when upgrading or building a gaming rig.

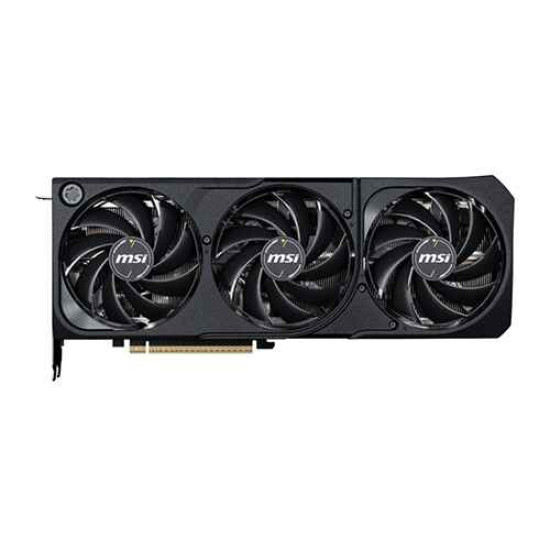

Triple-Fan Thermal Design

Three fans on a large heatsink deliver both superior and quieter cooling.

HARDENING EVERY DETAIL

All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.

Build Small. Play Big.

You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

Specification

Marketing Name : GeForce RTX™ 5070 12G SHADOW 3X OC

Model Name : G5070-12S3C

Graphics Processing Unit : NVIDIA® GeForce RTX™ 5070

Interface : PCI Express® Gen 5

CUDA® CORES : 6144 Units

Memory Speed : 28 Gbps

Memory : 12GB GDDR7

Memory Bus : 192-bit

HDCP Support : Y

Power consumption : 250 W

Power connectors : 16-pin x 1

Recommended PSU : 650 W

Card Dimension (mm) : 303 x 121 x 49 mm

DirectX Version Support : 12 Ultimate

OpenGL Version Support : 4.6

Maximum Displays : 4

G-SYNC® technology : Y

Digital Maximum Resolution : 7680 x 4320

Core Clocks

Extreme Performance : 2557 MHz (MSI Center)

Boost : 2542 MHz

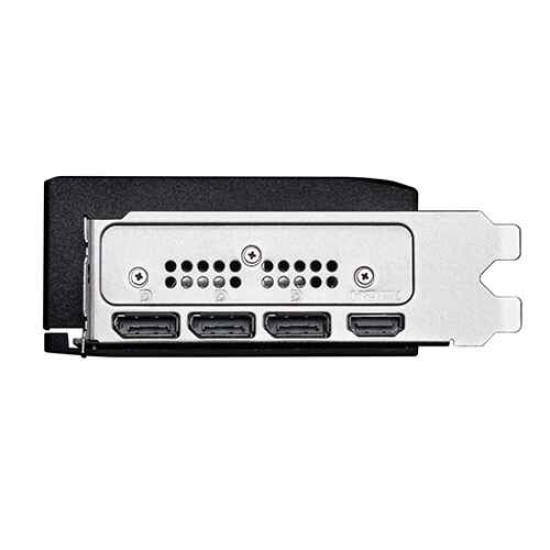

Output

DisplayPort x 3 (v2.1b)

HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
