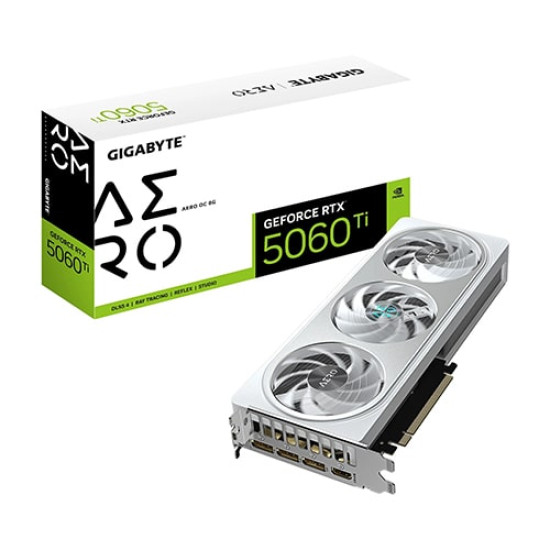

Gigabyte GeForce RTX 5060 Ti AERO OC 8GB GDDR7 (GV-N506TAERO OC-8GD)

Key Features

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Powered by GeForce RTX™ 5060 Ti
• Integrated with 8GB GDDR7 128bit memory interface
• WINDFORCE cooling system
• Hawk fan
• Server-grade Thermal conductive gel
• RGB Lighting
• Dual BIOS (Performance / Silent)
• Reinforced structure

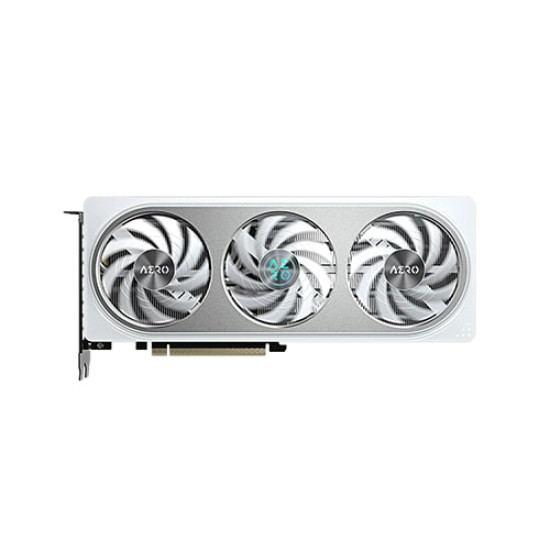

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN

Drawing inspiration from water, the back panel's ripples evoke flowing water, with mirrored, frosted, and light elements reflecting the water's shimmering surface. Metal craftsmanship refines the texture, while teal and iridescent hues accentuate the serene lake. The fan's rotation creates expanding ripples, infusing natural movement into the details.

REINFORCED STRUCTURE

The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.

POWER THROUGH THE GAME

GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specification

Graphics Processing : GeForce RTX™ 5060 Ti

Core Clock : 2647 MHz (Reference card :2572 MHz)

CUDA® Cores : 4608

Memory Clock : 28 Gbps

Memory Size : 8 GB

Memory Type : GDDR7

Memory Bus : 128 bit

Card Bus : PCI-E 5.0

Digital max resolution : 7680x4320

Multi-view : 4

Card size : L=281 W=117 H=40 mm

PCB Form : ATX

DirectX : DirectX 12 API

OpenGL : 4.6

Recommended PSU : 650W

Power Connectors : 8 Pin*1

Accessories : Quick guide

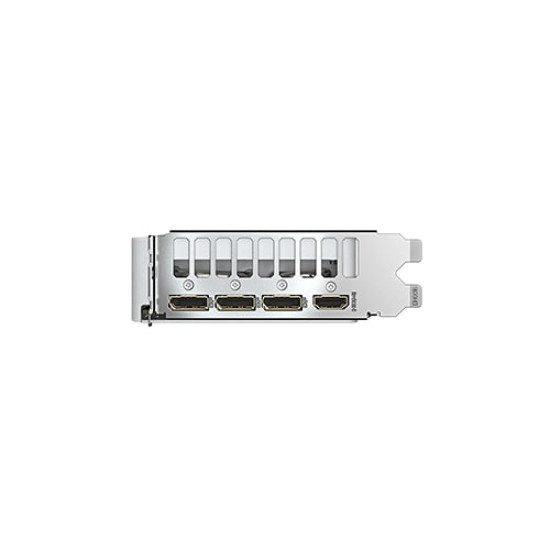

Output

DisplayPort 2.1b *3

HDMI 2.1b *1 :
