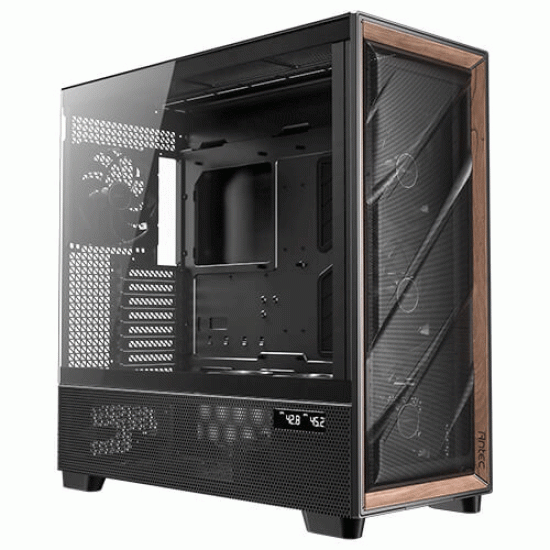

Antec FLUX PRO Full Tower Black Case with CPU and GPU Temperature Display

Flow Luxury

F-LUX Platform, abbreviation of Flow Luxury, features ultra case structure design for excellent airflow and 6 fans included, delivering enhanced GPU cooling performance.

Flux Airflow

Multi-directional vent design, featuring extensive air intakes at the bottom, power supply chamber and lower sides, along with top vents and large-area mesh at the front, creating a dedicated Antec Flux airflow channel.

Flux Vertical Cooling

Air intake via the PSU chamber maximizes heat dissipation while enhancing the intake effect for the graphics car

Flux Horizontal Cooling

Air intake via the front mesh provides smooth venting channel throughout the case.

Premium Wood

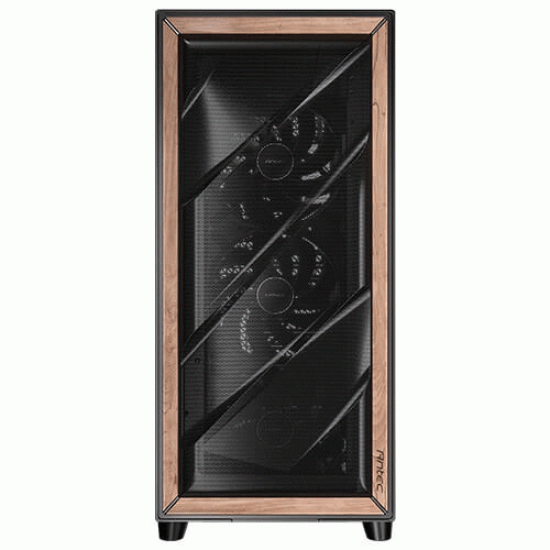

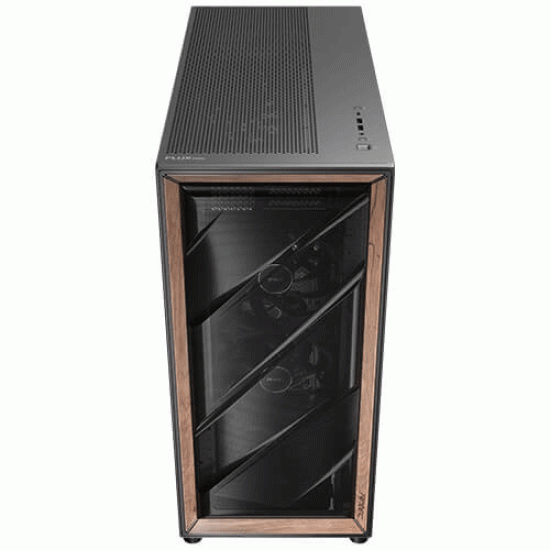

Front panel is crafted with a combination of metal mesh and wood (walnut) to create a high-quality texture with different materials, integrating seamlessly into your home design.

Innovative iShift PSU 90° Mount

In addition to the standard PSU mount orientation,a 90-degree rotated option powered by the includedextension cable is available. Plug in the cable connectorfrom the right side, routing has never been easier.

PSU Installation

Left side of PSU chamber is detachable, making it easy to install the power supply.

Removable Top Cooling Bracket

Mount the fans/radiators on the cooling bracket first and install the cooling bracket back to the case.

Removable Cooling Bracket on Top of PSU Shroud

When fans (2 available) are installed on the case bottom, remove the top shroud bracket to maximize the airflow, fulfilling the optimal vertical cooling scheme.

Removable Cooling Bracket on Top of PSU Shroud

Remove all three PSU shroud covers to install 3 x 120mm fans or a 360mm push-pull radiator.

Removable Front Cooling Bracket

Vertically adjustable to 5 positions to fit the huge top AIO.

Full cut-out design for enhanced air intake.

Can install fans or radiators.

Specification

Dimensions : 530 x 245 x 545 mm (DWH)

Form Factor : Full Tower

Materials : Steel + Plastic + Glass + Wood

Mainboard Support : E-ATX (≤285mm), ATX, Micro-ATX, ITX

Front Access & Controls Power, Reset, USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack, Temp. Display Switch x 1

Side Panel : 4mm Tempered Glass

Drive Bays

Expansion Slots 8

3.5" /2.5" 4/4

2.5" 2

Fan Support

Front 3 x 120mm / 3 x 140mm

Top 3 x 120mm / 3 x 140mm

Power Supply Shroud 3 x 120mm

Bottom 2 x 120mm / 2 x 140mm

Rear 1 x 120mm / 1 x 140mm

Included Fan(s) 3 x 140mm Tranquil PWM fans in front + 2 x 120mm P12R PWM reverse fans on PSU shroud

+ 1 x 140mm Tranquil PWM fan in rear

Radiator Support

Front 120 / 140 / 240 / 280 / 360 / 420mm

Top 120 / 140 / 240 / 280 / 360 / 420mm

Power Supply Shroud 120 / 240 / 360mm

Bottom 120 / 240mm

Rear 120 / 140mm

Clearance

Max GPU Length ≤ 455mm

Max CPU Cooler Height ≤ 190mm

Max PSU Length (Include cable) ≤ 180 / 300mm (with HDD)

(Include cable) ≤ 470mm (without HDD)

(Not Include cable) ≤ 180mm (Side Mount)

Miscellaneous

Dust Filter Bottom

Net Weight 13.60 Kg

Gross Weight 16.65 Kg
