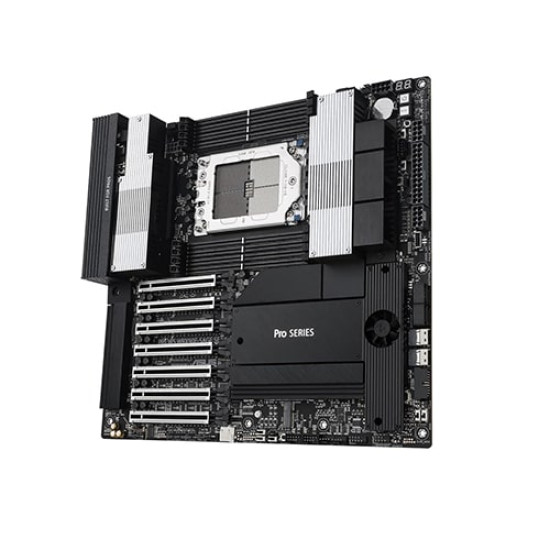

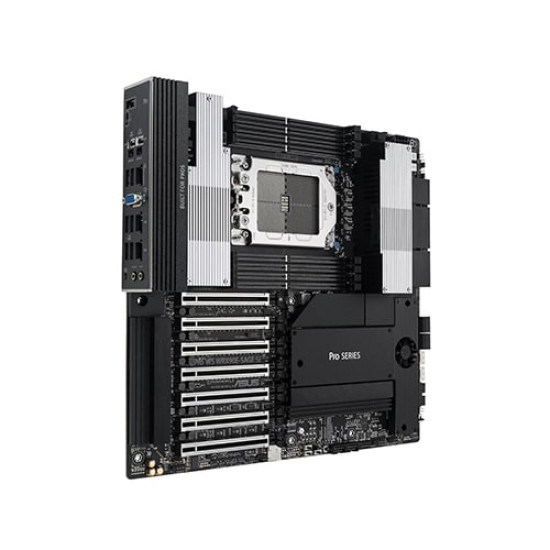

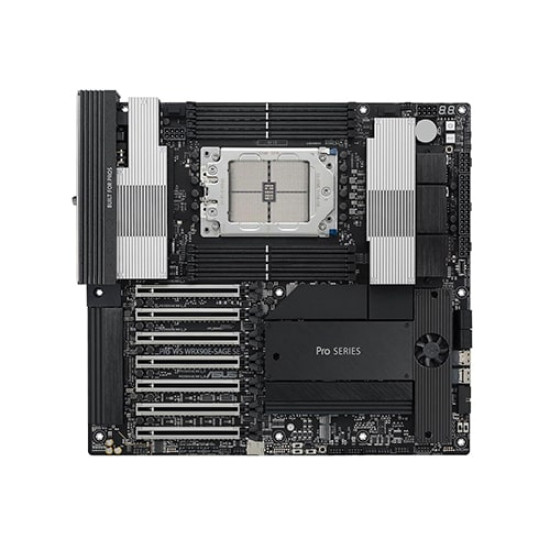

Asus Pro WS WRX90E-SAGE SE DDR5 AMD Workstation Motherboard

Key Features

• MD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors.
• Ultrafast connectivity: Seven PCIe® 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4® 40Gbps Type-C® and SlimSAS NVMe support.
• CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
• Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
• PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
• Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
• Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.

ULTRAFAST CONNECTIVITY Multi-GPU Support

The Pro WS WRX90E-SAGE SE motherboard features seven PCIe 5.0 x16 slots that provide flexible system configurability and expandability. With high-powered graphics cards, it can bring enhanced performance in modelling, simulation and rendering applications.

Intel® X710-AT2 dual 10 Gb Ethernet

Featuring dual onboard 10G LAN ports powered by the cutting-edge Intel® X710-AT2 Ethernet controller, the Pro WS WRX90E-SAGE SE makes short work of multi-terabyte transfers and provides server-grade connectivity with low-latency.

1 Gb Ethernet Dedicated to BMC

The Pro WS WRX90E-SAGE SE features an Ethernet port to provide fast data transfers simultaneously for 1 Gbps internet streaming to the onboard baseboard management controller.

USB 20Gbps with USB Type-C®

The front panel connectors offer a transfer rate of up to 20 Gbps.

Embrace Next-Generation USB4®

The USB Type-C port in the rear offers a DisplayPort™ alt mode with support for up to 8K resolution at 60 Hz, providing great compatibility for Type-C monitors and portable displays which are getting popular among creators.

M.2 PCIe 5.0 slots

The Pro WS WRX90E-SAGE SE includes up to four onboard M.2 slots. Users working with massive files can RAID together multiple NVMe devices for massive I/O bandwidth and speedy data transfers.

SlimSAS slot

The Pro WS WRX90E-SAGE SE motherboard also features two SlimSAS ports for connecting industrial SSD drives, servers and networking equipment.

CPU AND MEMORY OVERCLOCKING READY

For AMD TR5 series workstations, we offer CPU and DRAM overclocking options. To fully leverage the performance of these processors, ASUS has incorporated an innovative dual PSU design on the Pro WS WRX90E-SAGE SE motherboard. Along with robust power delivery and advanced cooling modules, this motherboard exhibits enhanced stability during overclocking. Hardware switches and optimized BIOS options provide overclocking enthusiasts with greater convenience when pushing their systems to the limit. You may further boost your memory performance by enabling EXPO settings. The comprehensive synergy of EXPO and ECC R-DIMM further combines exceptional performance with outstanding stability, setting a new standard for workstation computing.

Active VRM Cooling Solutions

The extruded aluminum heatsinks on the MOSFETs and chokes contain active cooling to greatly enhance thermal efficiency.

ProCool II Connectors

ProCool II connectors ensure a snug and reliable connection to the 12V CPU input. This second generation features improved heat dissipation and a metal shroud.

Onboard PCIe Power Connectors

Two additional 8-pin PCIe cable connectors built into the motherboard can ensure power output stability when multiple graphic cards need to be installed.

ECC R-DIMM Memory Support

The Pro WS WRX90E-SAGE SE motherboard boasts a robust design featuring eight R-DIMM DDR5 memory module slots with ECC support, to improve the prevention of system crashes and data corruption, thereby ensuring that a workstation remains reliable and responsive for professional demands.

ASUS Control Center Express

The Pro WS WRX90E-SAGE SE comes with ASUS Control Center Express, real-time IT monitoring and management software designed for business that improves productivity and enhances security and can help prevent unauthorized access and data leaks

10 Gb LAN Cooling

An optimally located and extended heatsink on the 10 Gb Ethernet controller ensures stable high-speed networking performance

M.2 Heatsinks with Active Fan

An active fan provides an additional cooling method to M.2 slots. All four M.2 slots come with large heatsinks to keep NVMe storage at the optimal operating temperature for consistent performance and reliability. M.2 thermal pads on select slots go even further to ensure peak performance for next-gen drives.

Multiple Temperature Source

Each header can be connected to a 3A-12V high speed fan and set to monitor and react to three user-configurable thermal sensors for workload-based cooling. All settings can be easily managed by Fan Xpert 4, UEFI and IPMI web interfaces.

PCIe Q-release Slim

• The new design of Q-release Slim allows users to remove the graphics card by tilting the card in its slot.
• This design also keeps the original method of removing the graphics card by pushing down on the retention clip.

SafeSlot & SafeDIMM

PCIe 5.0 is 2x faster than PCIe 4.0, so ASUS adapted its SMT manufacturing process to ensure the highest data speeds for its SafeSlot design. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep an expansion card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on ASUS Pro series workstation motherboards, empowering users to insert modules with speed, accuracy and confidence.

Specifications

Model : Pro WS WRX90E-SAGE SE

CPU : AMD Socket sTR5 for Ryzen™  Threadripper™  PRO 7000 WX-Series*

Chipset : AMD WRX90 Chipset

BIOS : 256 Mb Flash ROM, UEFI AMI BIOS(text-based)

Manageability : WOL by PME, PXE (UEFI mode)

Memory

8 x DIMM slots, DDR5, ECC Registered Memory*

8 Channel Memory Architecture

Expansion Slots

AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*

6 x PCIe 5.0 x16 slots

1 x PCIe 5.0 x16 slot (x8 mode)

Storage

Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports*

AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD WRX90 Chipset

2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device

4 x SATA 6Gb/s ports

AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.

Ethernet

1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)

1 x Intel® dual 10Gb Ethernet

ASUS LANGuard

USB

Rear USB (Total 9 ports)

2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)

6 x USB 10Gbps ports (6 x Type-A)

1 x USB 2.0 ports (2 x Type-A )

Front USB (Total 7 ports)

1 x USB 20Gbpsconnector (supports USB Type-C®)

1 x USB 5Gbps header supports 2 additional USB 5G ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Realtek ALC1220P Surround Sound High Definition Audio CODEC*

- Impedance sense for front and rear headphone outputs

- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback

Audio Features

- Premium audio capacitors

- Dedicated audio PCB layers

- Unique de-pop circuit

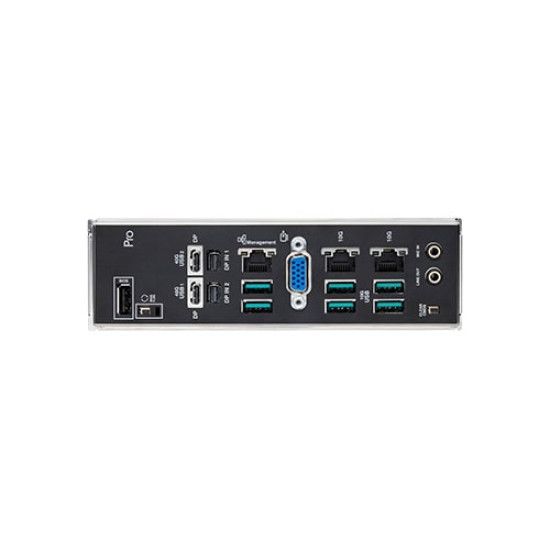

Back Panel I/O Ports

2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)

6 x USB 10Gbps ports (6 x Type-A)

1 x USB 2.0 port (2 x Type-A)

1 x VGA port

2 x mini DisplayPort IN

1 x Intel® dual 10Gb Ethernet ports

1 x Realtek 1Gb Ethernet port

2 x Audio jacks

1 x BIOS FlashBack™  button

1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x W_PUMP+ header

5 x 4-pin Chassis Fan headers

2 x 4-pin VRM Fan header (with VRM FAN onboard)

1 x 4-pin M.2 Fan header (with M.2 FAN onboard)

Power related

1 x 24-pin Main Power connectors

2 x 8-pin +12V Power connectors

2 x 8-pin PCIe to CPU power connectors

2 x 8-pin PCIe Power connector

Storage related

4 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

2 x SlimSAS port

USB

1 x USB 20Gbps connector supports USB Type-C®

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Chassis intrusion header

1 x COM port header

1 x FlexKey button

1 x Front panel audio header (F_AUDIO)

1 x LN2 mode jumper

1 x M.2 slot (Key E)

7 x ProbeIt measurement points

1 x ReTry button

1 x RSVD switch

1 x Slow mode switch

1 x Safe boot button

1 x SPI TPM header (14-1 pin)

1 x Start button

1 x 10-1 pin system panel header

1 x Thermal sensor header

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM (- Digital power design with SPS)

- ESD Guards

- LANGuard

- Overvoltage protection

- SafeSlot

- Stainless-steel back I/O

ASUS Q-Design

- M.2 Q-Latch

- Q-Release Slim (with PCIe SafeSlot)

- Q-Code

- Q-Connector

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate and onboard thermal pads

- M.2 heatsink

- Steel backplate

- VRM heatsink design with active fans

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Clear CMOS button

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

Bespoke Motherboard Design & Business Focused Features

- 24/7 Reliability

- Overcurrent Protection

BMC Related

1 x BMC switch

1 x BMC LAN fixed IP switch

1 x IPMI switch

1 x Message LED header

1 x microSD card socket

2 x LAN LED headers

1 x Location LED header

1 x Location button header

1 x PSU_SMB header

1 x SMART_PSU switch

1 x VGA switch

1 x VGA header (Dedicated Management for AST2600)

1 x VPP_I2C header

Software Features

ASUS Exclusive Software

Armoury Crate

- Fan Xpert 4

ASUS CPU-Z

Adobe Creative Cloud (Free Trial)

Norton 360 for Deluxe (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUSTeK. EzFlash Utility

FlexKey

IT Management software supported

- ASUS Control Center Express(ACCE)

Accessories

Cables

2 x PCIe 8-pin to CPU power cables

1 x 24-pin power cable (Y cable)

2 x Mini DisplayPort cables

4 x SATA 6Gb/s cables

1 x Thermistor cable pack

Miscellaneous

1 x Q-connector

1 x M.2 Q-Latch package

1 x AMI license sticker

4 x M.2 rubber packages

1 x Screw package for M.2 Key E

Documentation

1 x ACC Express Activation Key Card

1 x Quick start guide

Operating System

Windows® 11

Windows® 10 64-bit

Form Factor

EEB Form Factor

12 inch x 13 inch

(30.5 cm x 33 cm)
