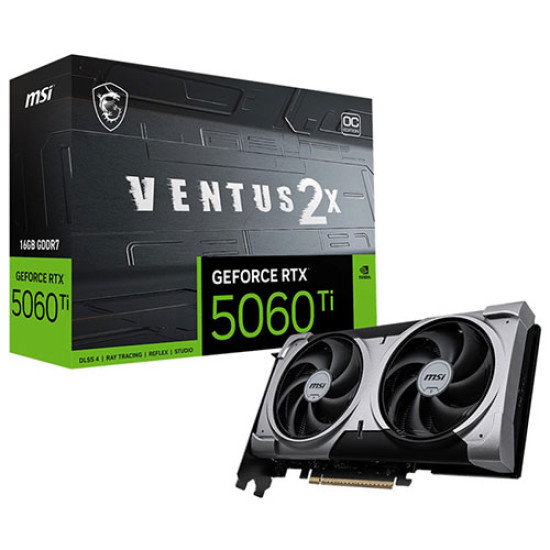

MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS 16GB GDDR7

TAKE THE ESSENTIALS

VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.

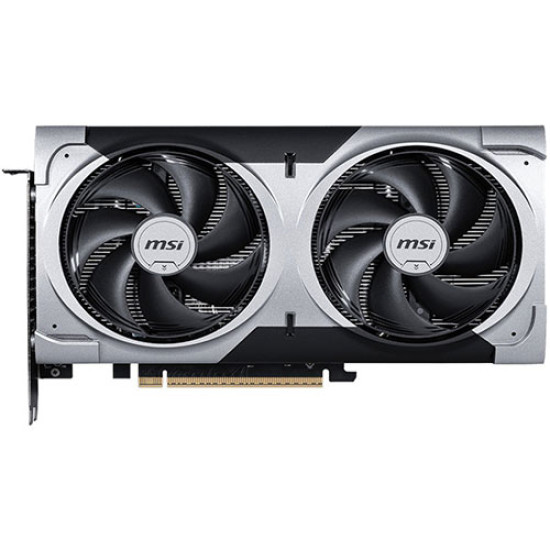

DUAL-FAN THERMAL DESIGN

Two fans on a large heatsink ensure great cooling performance with a quieter experience

HARDENING EVERY DETAIL

*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.

Build Small. Play Big.

You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

Features

GeForce RTX™ 5060 Ti 16G VENTUS 2X OC PLUS

Powered by the NVIDIA Blackwell architecture and DLSS 4

SFF-Ready Enthusiast GeForce Card

Core Clock:

Extreme Performance: 2617 MHz (MSI Center)

Boost: 2602 MHz

STORMFORCE FAN: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.

Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

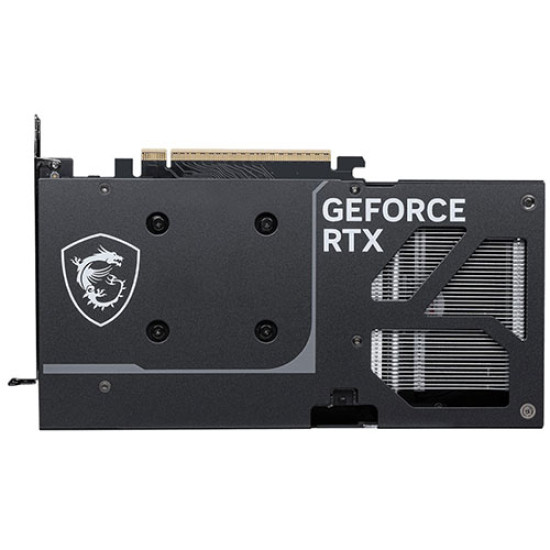

Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.

MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world

Specification

Marketing Name : GeForce RTX™ 5060 Ti 16G VENTUS 2X OC PLUS

Model Name : G506T-16V2CP

Graphics Processing Unit ; NVIDIA® GeForce RTX™ 5060 Ti

Interface ; PCI Express® Gen 5 x16 (uses x8)

Core Clocks : Extreme Performance: 2617 MHz (MSI Center), Boost: 2602 MHz

CUDA® CORES : 4608 Units

Memory Speed : 28 Gbps

Memory : 16GB GDDR7

Memory Bus : 128-bit

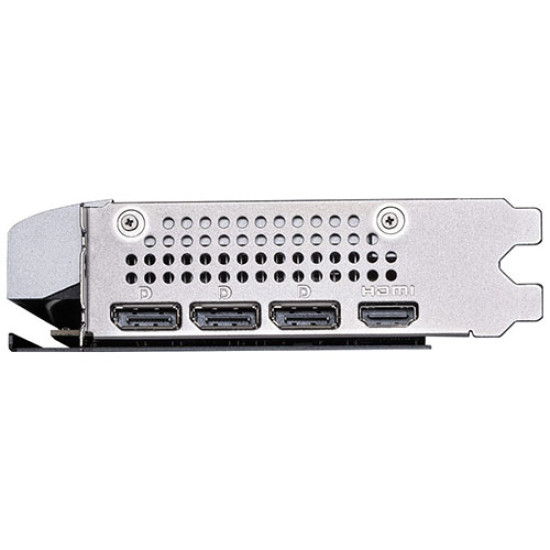

Output : DisplayPort x 3 (v2.1b)

HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

HDCP Support : Y

Power consumption : 180 W

Power connectors : 8-pin x1

Recommended PSU :600 W

Card Dimension (mm) : 227 x 127 x 41 mm

Weight (Card / Package) : 600 g / 862 g

DirectX Version Support : 12 Ultimate

OpenGL Version Support ; 4.6

Maximum Displays : 4

G-SYNC® technology : Y

Digital Maximum Resolution :7680 x 4320
