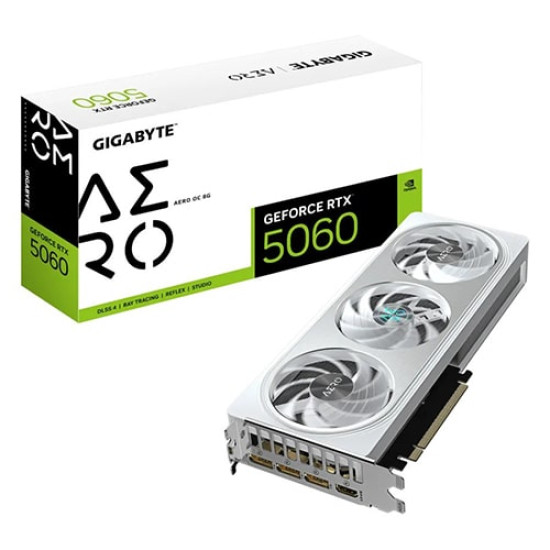

Gigabyte GeForce RTX 5060 AERO OC 8GB GDDR7 (GV-N5060AERO OC-8GD)

Key Features

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Powered by GeForce RTX™ 5060
• Integrated with 8GB GDDR7 128bit memory interface
• WINDFORCE cooling system
• Hawk fan
• Server-grade Thermal conductive gel
• RGB Lighting
• Dual BIOS (Performance / Silent)
• Reinforced structure

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN

Drawing inspiration from water, the back panel's ripples evoke flowing water, with mirrored, frosted, and light elements reflecting the water's shimmering surface. Metal craftsmanship refines the texture, while teal and iridescent hues accentuate the serene lake. The fan's rotation creates expanding ripples, infusing natural movement into the details.

RGB LIGHTING

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

REINFORCED STRUCTURE

The reinforced metal backplate, securely fastened to the I/O bracket, provides exceptional structural integrity.

POWER THROUGH THE GAME

GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specification

Graphics Processing : GeForce RTX™ 5060

Core Clock : 2595 MHz (Reference card : 2497MHz)

CUDA® Cores : 3840

Memory Clock : 28 Gbps

Memory Size : 8 GB

Memory Type : GDDR7

Memory Bus : 128 bit

Card Bus : PCI-E 5.0

Digital max resolution : 7680x4320

Multi-view : 4

Card size : L=281 W=117 H=40

PCB Form : ATX

DirectX : DirectX 12 API

OpenGL : 4.6

Recommended PSU : 550W

Power Connectors : 8 Pin*1

Accessories : Quick guide

Output

DisplayPort 2.1b *3

HDMI 2.1b *1
