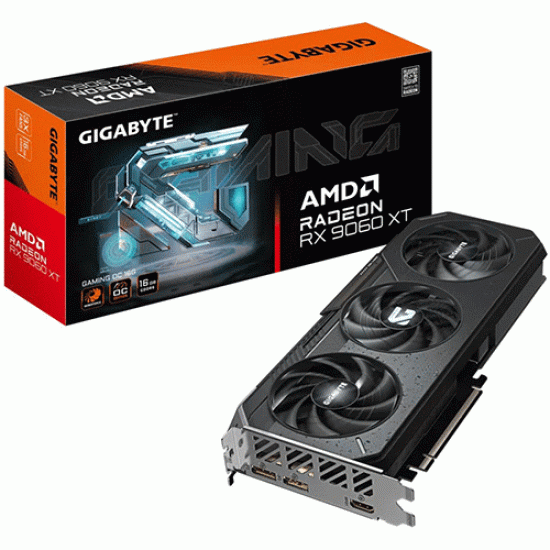

Gigabyte Radeon RX 9060 XT GAMING OC 16GB GDDR6 (GV-R9060XTGAMING OC-16GD)

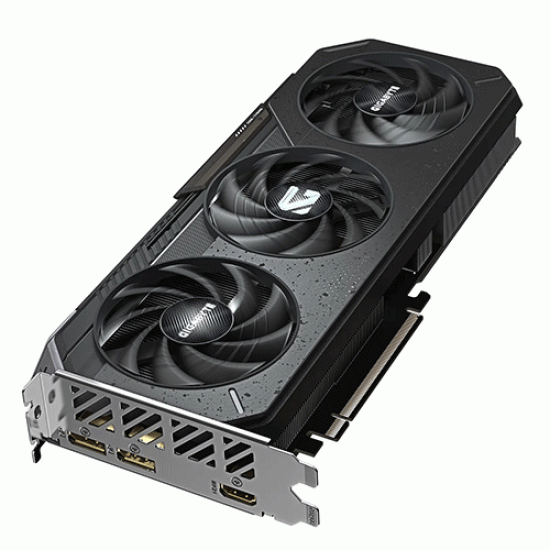

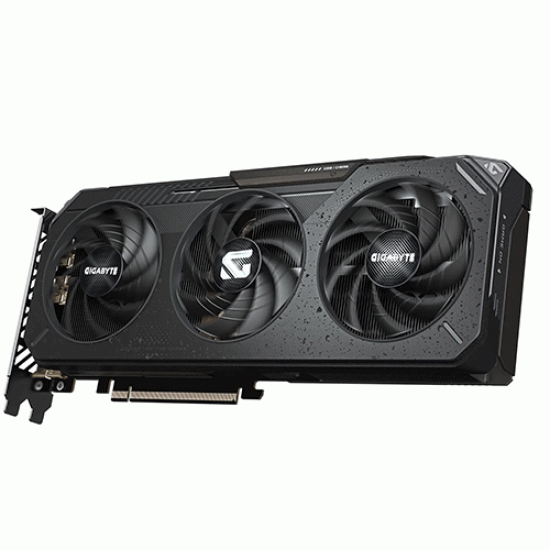

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a co

pper plate, 3D active fans, and screen cooling.

ASTONISHING EXTERIOR DESIGN

The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.

MULTI-LAYERED VISUAL

Like armor, the exterior features a multi-layered structure combined with varied surface material finishes.

RGB LIGHTING

With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.

SLIDING SIDE PLATE

Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.

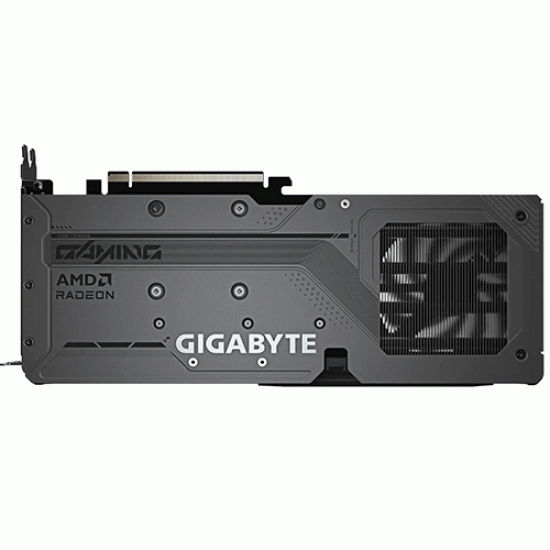

REINFORCED STRUCTURE

The reinforced metal backplate, securely fastened to the I/O bracket, provides exceptional structural integrity.

GIGABYTE CONTROL CENTER

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

Specification

Graphics Processing : Radeon RX 9060 XT

Core Clock : Boost Clock* : up to 3320 MHz (Reference card: 3130 MHz)

Game Clock* : up to 2780 MHz (Reference card: 2530 MHz)

Stream Processors : 2048

Memory Clock : 20 Gbps

Memory Size : 16GB

Memory Type ; GDDR6

Memory Bus : 128 bit

Card Bus : PCI-E 5.0

Digital max resolution0 : 7680 x 4320

Multi-view : 3

Card size  L=281 W=118 H=40 mm

PCB Form : ATX

DirectX : DirectX 12 API

OpenGL : OpenGL 4.6

Recommended PSU : 450W

Power Connectors : 8 pin*1

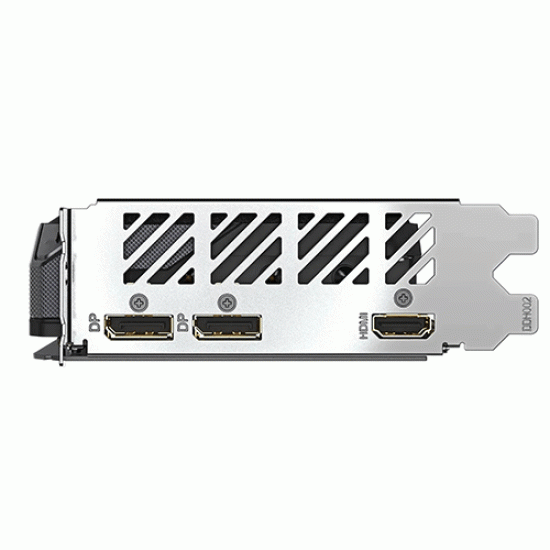

Output

DisplayPort 2.1a x2

HDMI 2.1b x1

Accessories

VGA manual
