Asus NUC 14 Essential Kit (RNUC14MNK1500000)

Key Features

• Energy-efficient: Ideal for lightweight office productivity and embedded applications.
• Triple display support: Boosting Office Workflow Efficiency.
• Easy access design: Ease of upgrades, lower maintenance costs and reduced downtime.
• Multiple high-speed connection options: Experience heightened productivity with a diverse array of high-speed connectivity options, ensuring accelerated and stable data transfers.
• Abundant I/O: High flexibility to meet various workflow and scenarios.
• Compact size: Easy to deploy for small offices, retail settings, educational institutions.

Multitask with Triple Display Support​

Unleash the power of multitasking in a compact 0.56L chassis, supporting up to three 4K displays with reduced latency, minimized power consumption, and smoother data transfer.

Versatile, Lightweight Design

The lightweight 0.56-liter chassis blends well in any setting and can be VESA mounted on a wall or on the back of a monitor, saving space at home or in the office

Compact Size, Abundant I/O

NUC 14 Essential offers seamless connectivity with a host of I/O ports on its front and rear panels, supporting up to three 4K displays and offering high-speed networking performance. The front panel features a headset jack, one USB-C® (10 Gbps  ) and a USB Type-A (10 Gbps) port; while the rear includes two USB Type-A (10 Gbps) ports, one USB 2.0, one USB-C with DisplayPort™ (10 Gbps), one DisplayPort, HDMI™, and one LAN port.

Target Usage

Powered by the latest Intel® Core™ N-Series processor​, NUC 14 Essential strikes a harmonious balance between energy consumption and efficiency, at a reasonable price. From office productivity to supporting digital signage, it offers outstanding versatility and can be deployed across diverse industries.

Easy Access Design

With ASUS easy access design, customize and upgrade NUC 14 Essential with ease

Specification

Model : NUC14MNK-B

Form Factor : Kit

Chipset : Integrated

Wireless Data Network : Intel® Wi-Fi 6E AX211 (Gig+), Bluetooth 5.3

LAN : 1 x Realtek Ethernet Controller RTL8125BG-CG, 2.5G

Audio : Realtek ALC3251

Power Supply : 19VDC, 3.42A, 65W Power Adapter

Dimensions (W x D x H) : 135mm x 115mm x 36mm

Operating System

No preinstalled OS​

Support:

Windows 11

RedHat Enterprise Linux

Ubuntu 24.04 LTS

CPU

Intel® Processor N97, cTDP 12W

Intel® Core™ 3 N355, TDP 15W

Intel® Processor N250, TDP 6W

Intel® Processor N150, TDP 6W

Graphics

Intel® UHD Graphics (N97)

Intel® Graphics (N150, N250, N355)

Memory

No memory included at shipment

Max Capacity: 16GB DDR5-4800 SO-DIMM

Storage

No storage included at shipment

Support:

128GB~2TB M.2 2280 NVMe™ PCIe® 3.0 x 4 SSD or

128GB~2TB M.2 2242 SATA SSD

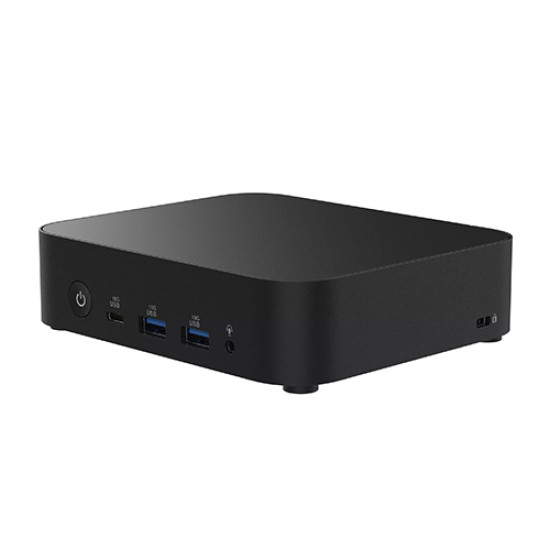

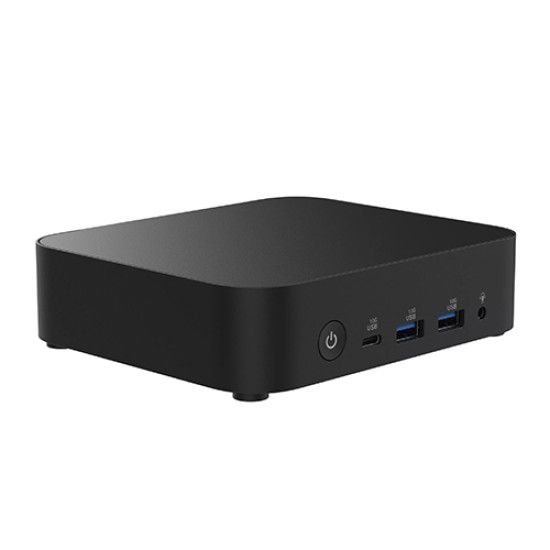

Front(Side) I/O Ports

1 x USB 3.2 Gen2 Type-C

2 x USB 3.2 Gen2 Type-A

1 x 3.5mm Headset Jack

1 x Kensington Lock

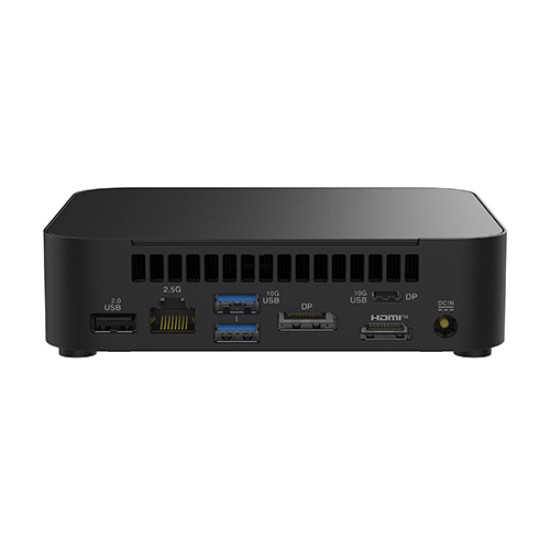

Back I/O Ports

1 x USB 3.2 Gen2 Type-C w/ DisplayPort 1.4

2 x USB 3.2 Gen 2 Type-A

1 x USB 2.0 Type-A

1 x HDMI 2.1 (TMDS)

1 x DisplayPort 1.4

1 x RJ45 LAN

1 x DC-in

Accessories

AC Adapter+Power Cord*

VESA Bracket and Screws

Safety/Caution/Regulatory Insert

Warranty Card
