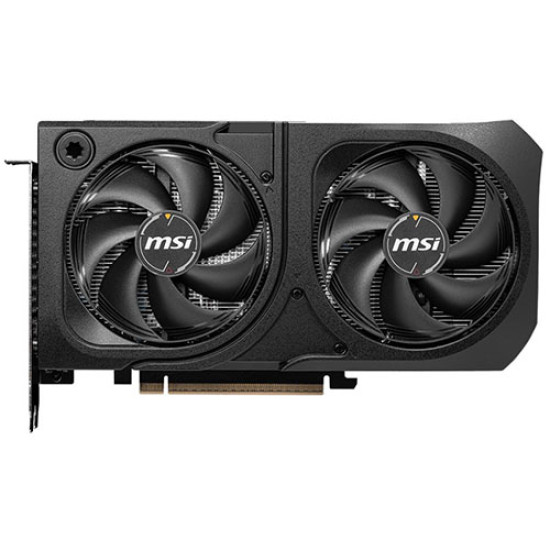

MSI GeForce RTX 5060 Ti 8G SHADOW 2X OC PLUS 8GB GDDR7

TAKE THE ESSENTIALS

MSI SHADOW brings a performance-focused design that delivers the gaming experience players want, making it the ideal choice when upgrading or building a gaming rig.

Nvidia RTX 50 Chip

Fifth-Gen Tensor Cores

Max AI performance with FP4 and DLSS 4

New Streaming Multiprocessors

Optimized for neural shaders

Fourth-Gen Ray Tracing Cores

Built for Mega Geometry

DUAL-Fan Thermal Design

Two fans on a large heatsink ensure great cooling performance with a quieter experience.

BRINGING IT ALL TOGETHER

MSI's exclusive MSI Center software empowers you to maximize your MSI products. Monitor, tweak, and optimize in real-time with just a few clicks. One of its standout features, AI Tuning, intelligently adjusts your system to meet AI-oriented requirements.

PRECISION CONTROLS, UNLIMITED POWER

MSI Afterburner is the world's leading graphics card overclocking software, offering complete control and real-time system monitoring. It’s free and compatible with most graphics cards.

SEAMLESS GAMING EXPERIENCE

Developed under an exclusive partnership with BlueStacks, the MSI APP Player provides a seamless gaming experience between mobile gaming and the PC.

GeForce RTX™ 5060 Ti 8G SHADOW 2X OC PLUS

Powered by the NVIDIA Blackwell architecture and DLSS 4

Core Clocks:

Extreme Performance: 2617 MHz (MSI Center)

Boost: 2602 MHz

STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.

Heat Pipes designed for efficient heat transfer, the heat pipes effectively draw thermal energy away from the GPU, improving overall cooling performance.

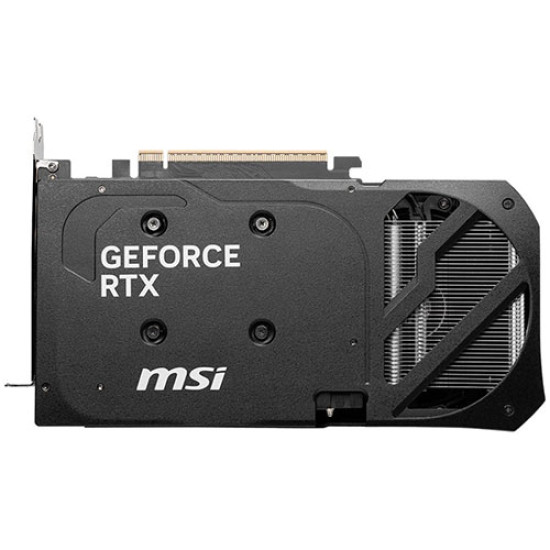

Reinforcing Backplate: The reinforcing backplate features an airflow vent that allows exhaust air to directly pass through.

MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.

Specifications

Marketing Name : GeForce RTX™ 5060 Ti 8G SHADOW 2X OC PLUS

Memory : 8GB GDDR7

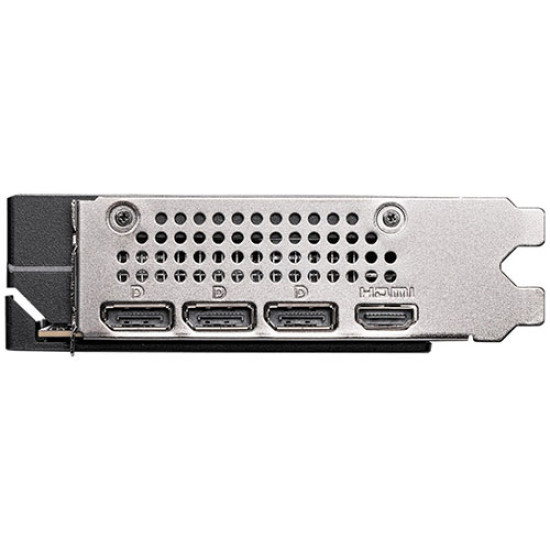

Output

DisplayPort x 3 (v2.1b)

HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

Graphics Processing Unit : NVIDIA® GeForce RTX™ 5060 Ti

Interface : PCI Express® Gen 5 x16 (uses x8)

Core Clock Speed (MHz)

Extreme Performance: 2617 MHz (MSI Center)

Boost: 2602 MHz

Memory Interface : 128-bit

Memory Clock Speed (MHz) : 28 Gbps

OpenGL Version Support : 4.6

Maximum Displays : 4

HDCP Support : Y

DirectX Version Support : 12 Ultimate

Card Dimension(mm) : 226 x 126 x 41 mm

Card Weight (g) : 553 g / 814 g

Power consumption (W) : 180 W

Recommended PSU (W) : 600 W

Digital Maximum Resolution : 7680 x 4320

Power Connectors : 8-pin x 1

Mic-in/Headphone-out : 1/1
